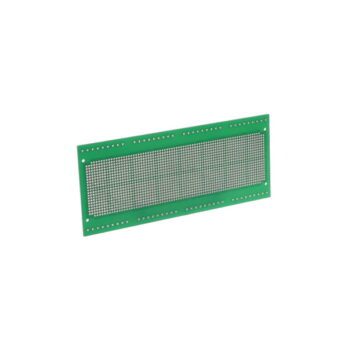

PCB for DIN Rail Mount Multi-Board Box 3.42 x 8.2 Inches DMB-4778-CB

PCB for DIN rail mount multi-board box and terminal connectors
Designed to fit circuit board location “A” of the DIN rail box
0.1 inch hole spacing designed to accommodate a variety of components for prototyping
Pre-plated holes for easy soldering
Terminals can be used in multiples of 3
72 (12×3/12×3) PCB terminals
Width: 3.42 inches
Length: 8.2 inches
Depth: 0.06 inches
Weight: 0.1 Ounces
Fits model DMB-4778 DIN Rail Mount Multi-Board Box
Drawing PDF DXF
