CH-14403

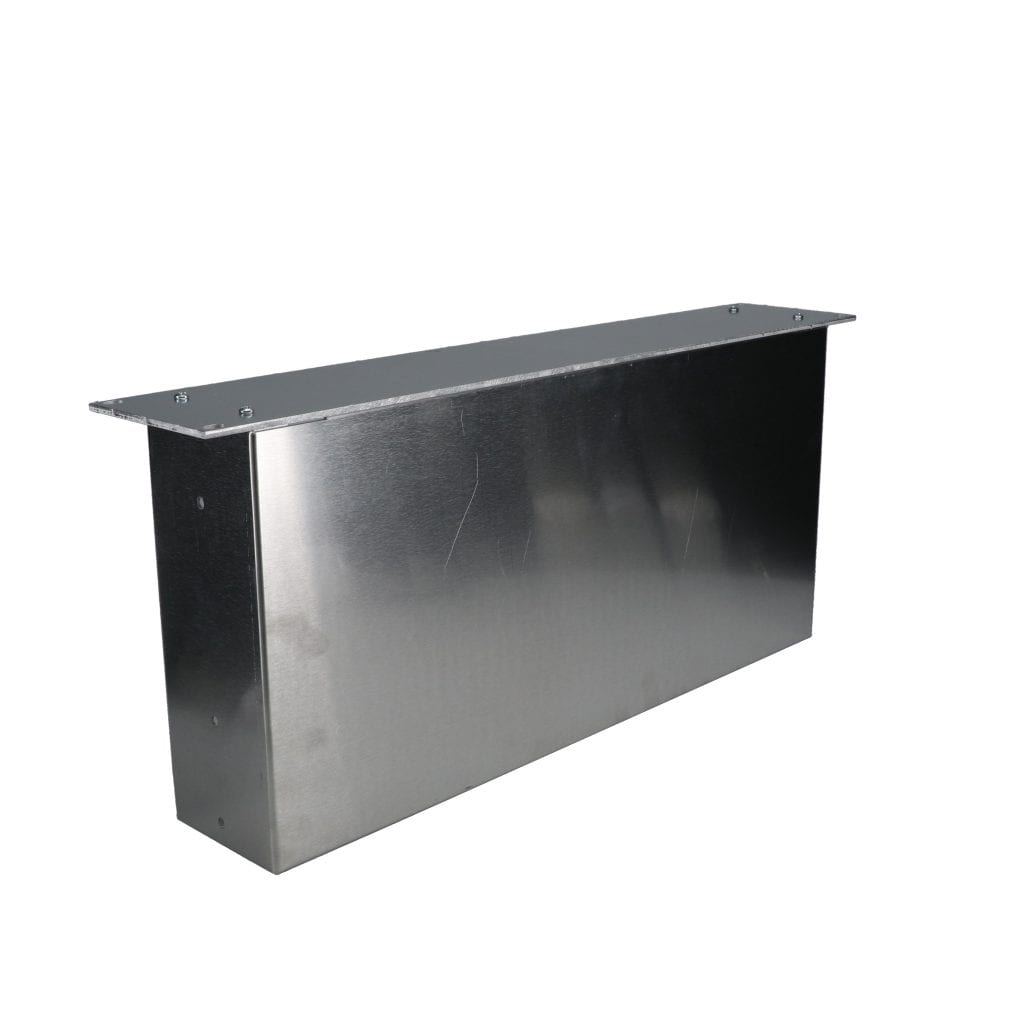

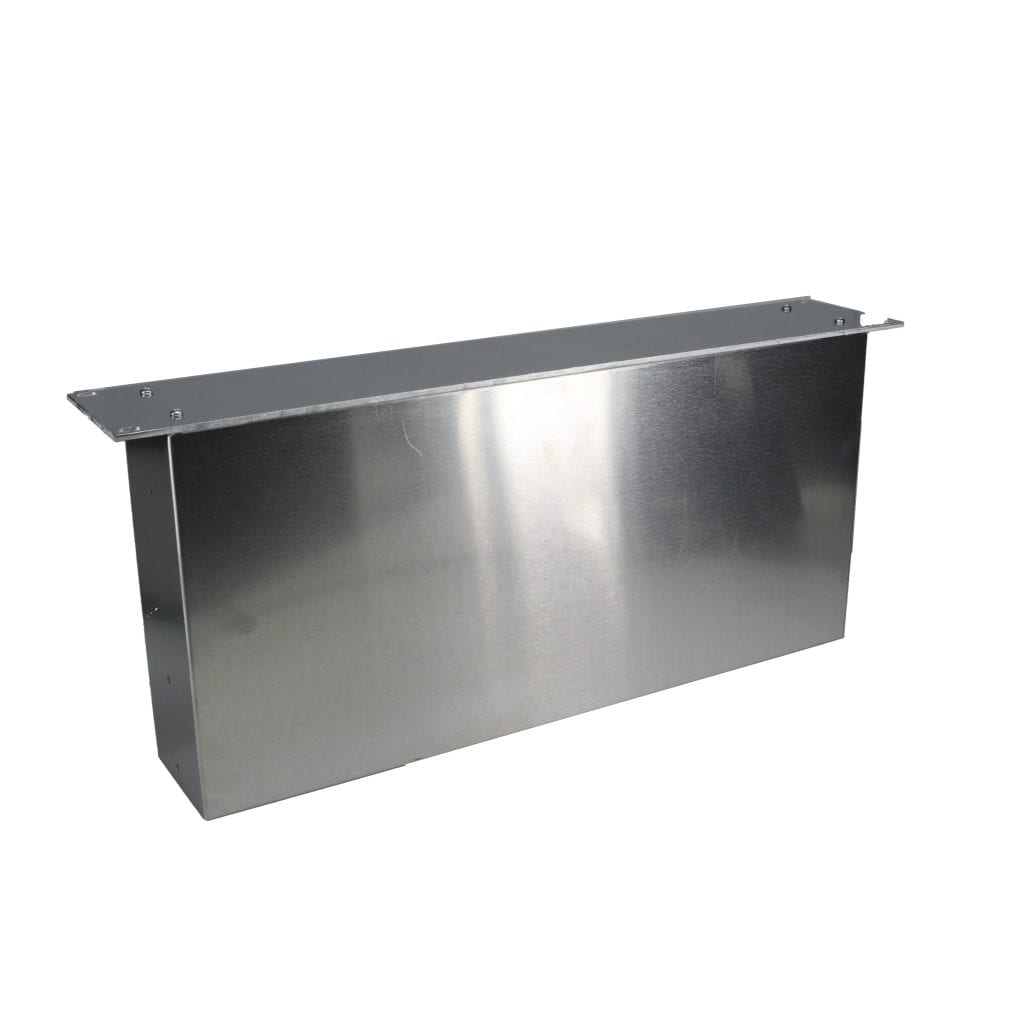

Small Rack Mount Chassis Box CH-14403

Product Details

Model # CH-14403 Small Rack Mount Chassis Box Series
  • Sturdy aluminum enclosure rack mount chassis
  • 2U height
  • Adaptable for slide mounting
  • Requires two pairs of panel mounting rails when used with slides
  • Panels are 0.12-inch thick aluminum
  • Chassis are 0.05-inch thick aluminum
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size H x W x D: 3.50" x 19.00" x 8.00"
Internal Size H x W x D: 3.50" x 16.90" x 7.95"
Weight: 2 lbs
Color: Natural

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CH-14402 1.75" x 19.00" x 16.00" 1.7519.0016.00 1.75" x 16.90" x 15.95"
CH-14400 1.75" x 19.00" x 4.00" 1.7519.004.00 1.75" x 16.90" x 3.95"
CH-14401 1.75" x 19.00" x 8.00" 1.7519.008.00 1.75" x 16.90" x 7.95"
CH-14404 3.50" x 19.00" x 16.00" 3.5019.0016.00 7.50" x 16.90" x 15.95"
CH-14403 3.50" x 19.00" x 8.00" 3.5019.008.00 3.50" x 16.90" x 7.95"
