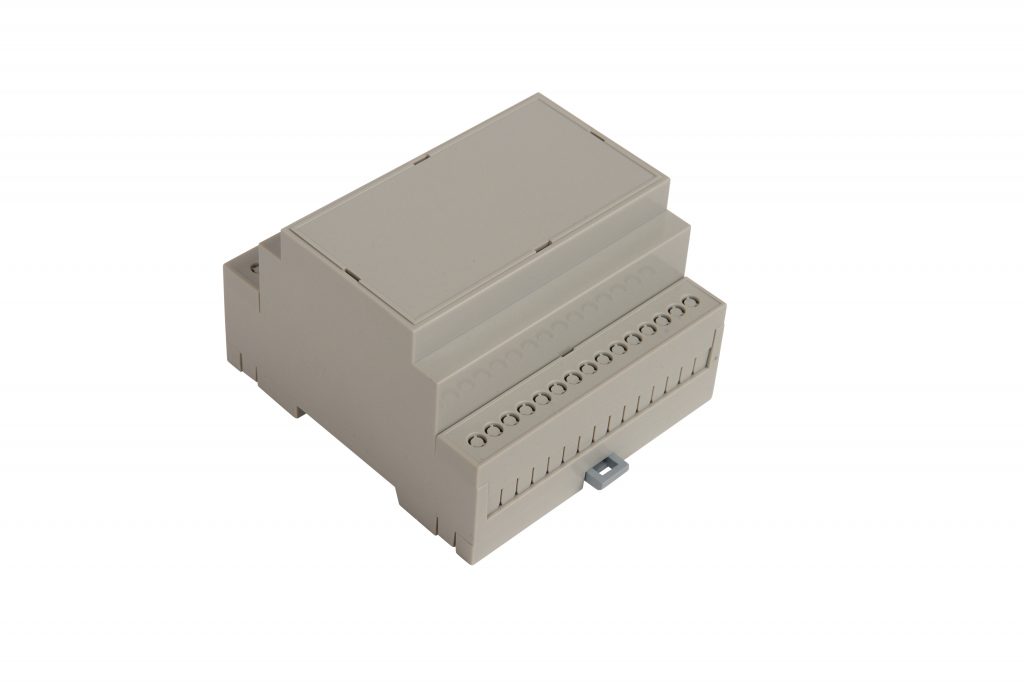

DIN Rail Mount Multi-Board 30-Terminals DMB-4775

Model # DMB-4775 DIN Rail Mount Multi-Board Box Series

DMB is Durable UL94V-0 rated ABS/PC blend plastic housing
Suggested service temperature -20C to +70
Three levels of PC board mounting locations – PC boards not supplied
Bottom level accepts PC board with modular type terminals on 0.2″ centers
Removable terminal guards have snap-off tabs to match number of terminals used
Snap-fit design allows tool-less assembly of all parts including PC boards
Snap-fit front cover is easily removable for machining or silk-screening
Optional clear and infra red polycarbonate covers available
Fits standard 35mm DIN rail
Finish: Light Gray

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size H x W x D: 2.25" x 3.55" x 3.29"

Weight: 0.16 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Type of Plastic: Poly / ABS Blend

Flammability Rating: UL94-V0

Service Temperature Low: -20

Service Temperature High: 70

Number of PCB Terminals: 30

Mounting Style: DIN Rail

Drawing

DMB-4775 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
DMB-4769	2.25" x 3.55" x 0.67" 2.253.550.67
DMB-4770	2.25" x 3.55" x 1.43" 2.253.551.43
DMB-4771	2.25" x 3.55" x 2.10" 2.253.552.10
DMB-4772	2.25" x 3.55" x 2.80" 2.253.552.80
DMB-4775	2.25" x 3.55" x 3.29" 2.253.553.29
DMB-4773	2.25" x 3.55" x 4.18" 2.253.554.18
DMB-4774	2.25" x 3.55" x 6.28" 2.253.556.28
DMB-4778	2.25" x 3.55" x 8.35" 2.253.558.35
