CU-5477-B

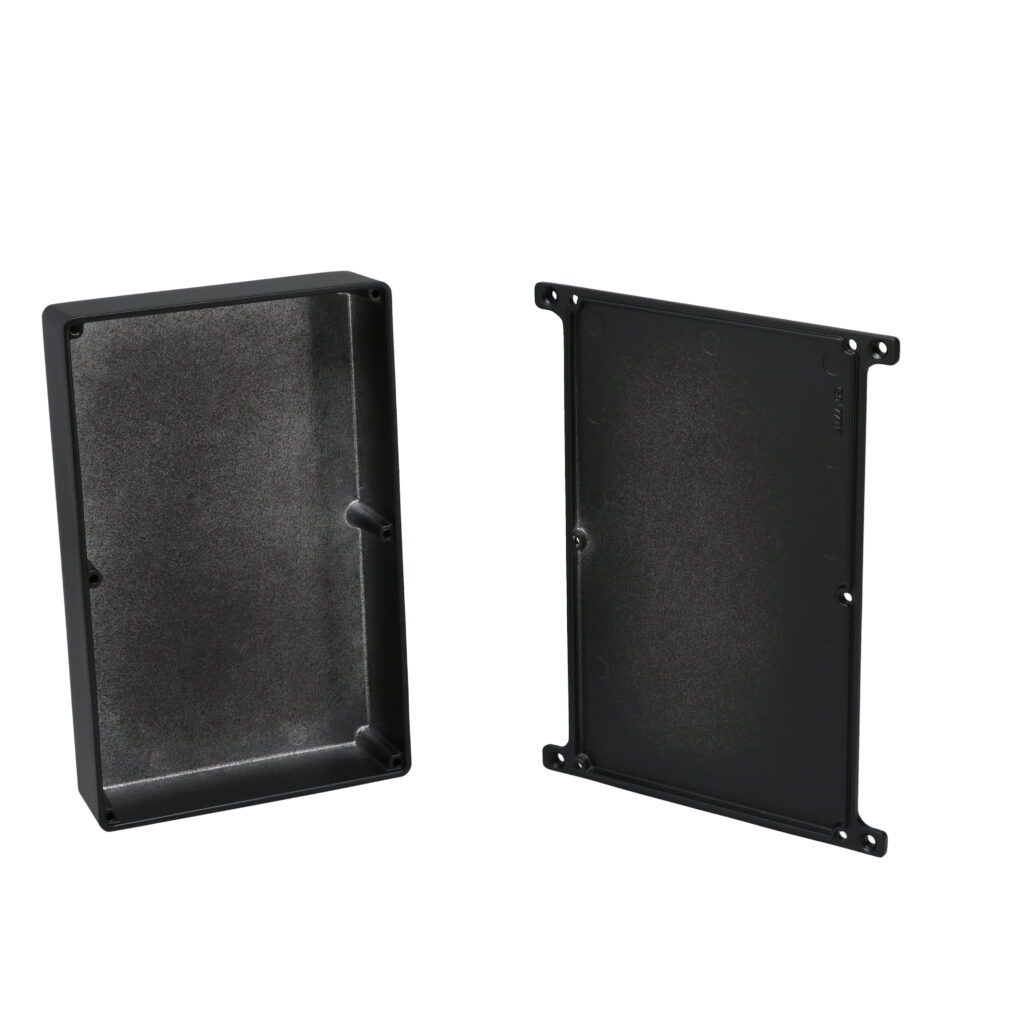

Econobox with Mounting Bracket Cover Black CU-5477-B

Product Details

Model # CU-5477-B Econobox with Mounting Bracket Cover
  • ADC-12 aluminum alloy
  • Excellent screening properties
  • Close fitting covers attach with #6-32 screws
  • Easily machined or modified to any application requirement
  • Mounts to wall or panel with #6 size screws (not furnished)
  • Heavy duty .09″ thick external wall mounting bracket


 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 7.39" x 4.70" x 1.50"
Internal Size L x W x D: 7.00" x 4.31" x 1.34"
Weight: 1.28 lbs
Color: Black Smooth Powder Coated
Mounting Style: Mounting Flanges

Drawing

CU-5477-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-5470-B 2.00" x 2.00" x 1.25" 2.002.001.25 1.68" x 1.68" x 1.11"
CU-5470 2.00" x 2.00" x 1.25" 2.002.001.25 1.68" x 1.68" x 1.11"
CU-5123-B 3.62" x 1.50" x 1.21" 3.621.501.21 3.31" x 1.18" x 1.06"
CU-5123 3.62" x 1.50" x 1.21" 3.621.501.21 3.31" x 1.18" x 1.06"
CU-5471-B 4.33" x 3.25" x 1.75" 4.333.251.75 3.92" x 2.84" x 1.59"
CU-5471 4.33" x 3.25" x 1.75" 4.333.251.75 3.92" x 2.84" x 1.59"
CU-5124 4.37" x 2.37" x 1.21" 4.372.371.21 4.06" x 2.06" x 1.06"
CU-5124-B 4.37" x 2.37" x 1.21" 4.372.371.21 4.06" x 2.06" x 1.06"
CU-5479-B 4.37" x 2.37" x 2.13" 4.372.372.13 3.99" x 1.99" x 1.98"
CU-5479 4.37" x 2.37" x 2.13" 4.372.372.13 3.99" x 1.99" x 1.98"
CU-5473 4.68" x 3.68" x 1.34" 4.683.681.34 4.24" x 3.30" x 1.18"
CU-5473-B 4.68" x 3.68" x 1.34" 4.683.681.34 4.24" x 3.30" x 1.18"
CU-5234 4.68" x 3.68" x 2.21" 4.683.682.21 4.24" x 3.24" x 2.06"
CU-5234-B 4.68" x 3.68" x 2.21" 4.683.682.21 4.24" x 3.24" x 2.06"
CU-5472 4.75" x 3.15" x 2.33" 4.753.152.33 4.30" x 2.70" x 2.17"
CU-5472-B 4.75" x 3.15" x 2.33" 4.753.152.33 4.30" x 2.70" x 2.17"
CU-5474 4.75" x 4.75" x 2.33" 4.754.752.33 4.30" x 4.30" x 2.17"
CU-5474-B 4.75" x 4.75" x 2.33" 4.754.752.33 4.30" x 4.30" x 2.17"
CU-5475 4.75" x 4.75" x 3.75" 4.754.753.75 4.30" x 4.30" x 3.59"
CU-5475-B 4.75" x 4.75" x 3.75" 4.754.753.75 4.30" x 4.30" x 3.59"
CU-5476 6.00" x 3.25" x 2.00" 6.003.252.00 5.57" x 2.82" x 1.84"
CU-5476-B 6.00" x 3.25" x 2.00" 6.003.252.00 5.57" x 2.82" x 1.84"
CU-5477 7.39" x 4.70" x 1.50" 7.394.701.50 7.00" x 4.31" x 1.34"
CU-5477-B 7.39" x 4.70" x 1.50" 7.394.701.50 7.00" x 4.31" x 1.34"
CU-5247 7.39" x 4.70" x 2.21" 7.394.702.21 6.94" x 4.26" x 2.06"
CU-5247-B 7.39" x 4.70" x 2.21" 7.394.702.21 6.94" x 4.26" x 2.06"
CU-5347-B 7.39" x 4.70" x 3.21" 7.394.703.21 6.88" x 4.19" x 3.06"
CU-5347 7.39" x 4.70" x 3.21" 7.394.703.21 6.88" x 4.19" x 3.06"
CU-5478 7.50" x 7.50" x 2.62" 7.507.502.62 7.03" x 7.03" x 2.46"
CU-5478-B 7.50" x 7.50" x 2.62" 7.507.502.62 7.03" x 7.03" x 2.46"
