HH-3494

Grabber Style F Plastic Box Four Buttons HH-3494
  • Grabber Style F

Product Details

Model # HH-3494 Grabber Style F Series Plastic Box

Style F is a pocket-sized enclosure with a molded-in ring suitable for key ring applications, and integrated electrically conductive push buttons. Enclosure body is ABS plastic in a black finish with UL 94-HB flammability rating. Buttons are gray silicon rubber. Other button configurations available upon request. The hand-held plastic box is available with optional tilt stand, AA battery contact kit, and belt clip.

 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 2.24" x 1.37" x 0.40"
Internal Size L x W x D: 1.69" x 1.06" x 0.23"
Weight: 0.02 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Bosses: Yes
Number of Pushbuttons: 4

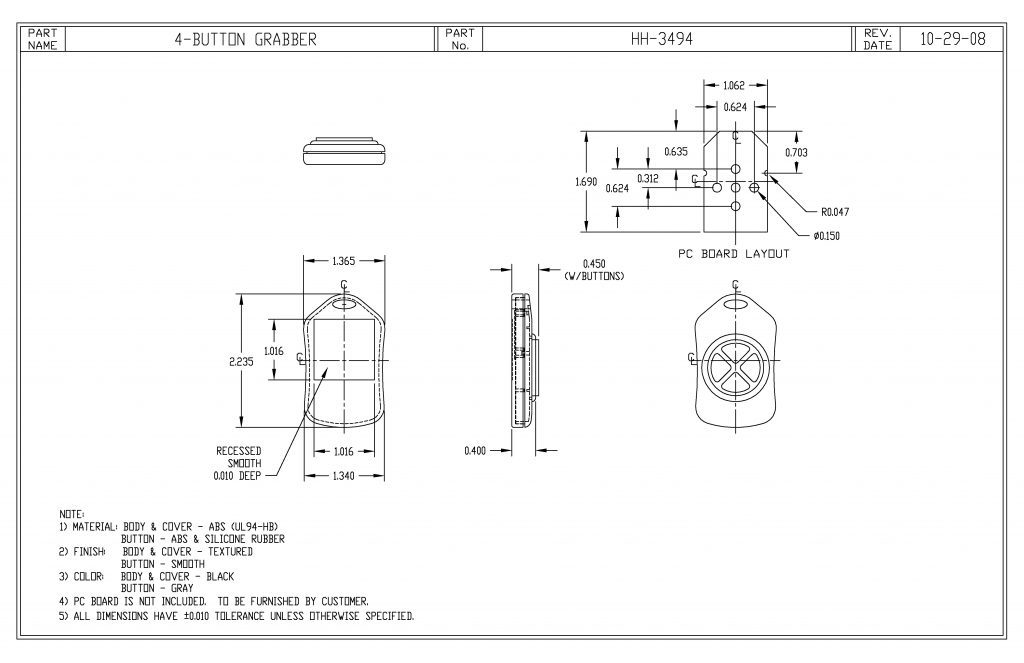

Drawing

HH-3494 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Number of Pushbuttons
HH-3492 2.24" x 1.37" x 0.40" 2.241.370.40 1.69" x 1.06" x 0.23" 2
HH-3494 2.24" x 1.37" x 0.40" 2.241.370.40 1.69" x 1.06" x 0.23" 4
