HH-3501

Grabber Style H Plastic Box One Button HH-3501
  • Grabber Style H

Product Details

Model # HH-3501 Grabber Style H Series Plastic Box

Style H is an ergonomically designed pocket-size enclosure with a molded-in ring for key-ring applications, and integrated electrically conductive push buttons. Enclosure is ABS plastic in a black finish and with a UL94-HB flammability rating. Buttons are gray silicone rubber with conductive pads.

 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 2.84" x 2.03" x 0.62"
Internal Size L x W x D: 1.70" x 0.90" x 0.40"
Weight: 0.03 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Bosses: No
Number of Pushbuttons: 1

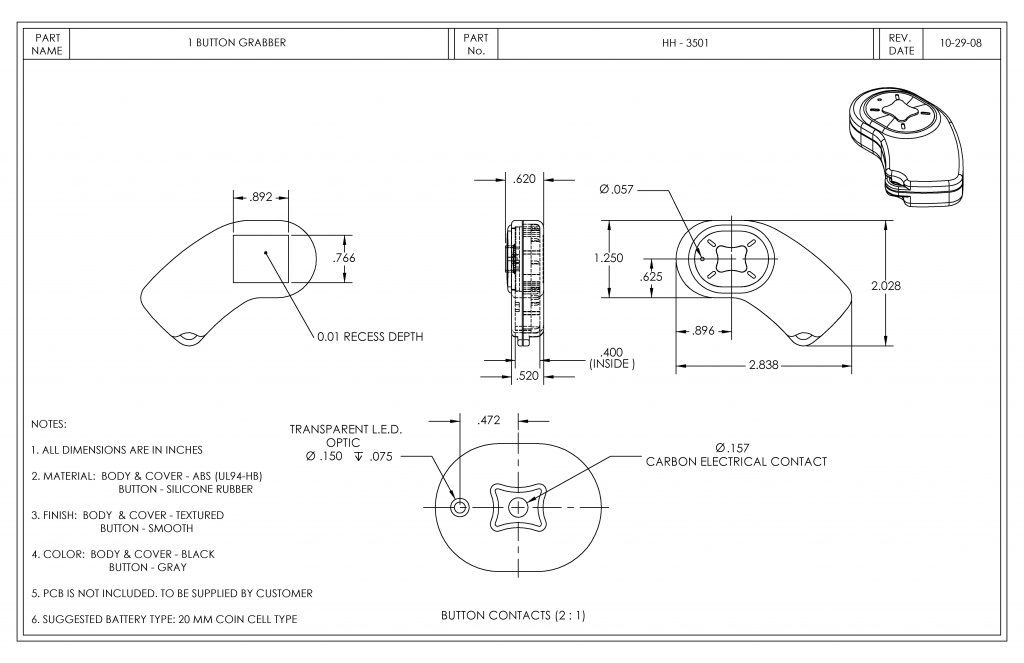

Drawing

HH-3501 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Number of Pushbuttons
HH-3501 2.84" x 2.03" x 0.62" 2.842.030.62 1.70" x 0.90" x 0.40" 1
HH-3502 2.84" x 2.03" x 0.62" 2.842.030.62 1.70" x 0.90" x 0.40" 2
HH-3503 2.84" x 2.03" x 0.62" 2.842.030.62 1.70" x 0.90" x 0.40" 3
HH-3504 2.84" x 2.03" x 0.62" 2.842.030.62 1.70" x 0.90" x 0.40" 4
HH-3505 2.84" x 2.03" x 0.62" 2.842.030.62 1.70" x 0.90" x 0.40" 5
