HP-3664-B

Hand-Held Plastic Box Style 3 HP-3664-B
  • Hand-Held Plastic Box Style 3

Product Details

Model # HP-3664-B Hand-Held Plastic Box Style 3
  • Compact, ergonomic design.
  • Made from durable ABS plastic with UL94-HB flammability rating in black color.
  • Removable end panel allows for easy modification.
  • Internal PCB mounting bosses.
  • Complete with top cover, bottom cover, end panel, battery door, and assembly hardware.
  • Recessed top suitable for label or keypad.
  • Hand-held plastic box has optional tilt stand, transparent infrared lens, AA battery contact kit, and belt clip.
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 5.51" x 2.62" x 1.10"
Internal Size L x W x D: 5.23" x 2.42" x 0.86"
Weight: 0.11 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Recessed Top: With Recessed Top
Bosses: Yes
Options: Belt Clip, Tilt Stand, Infrared Lens, Battery Holder

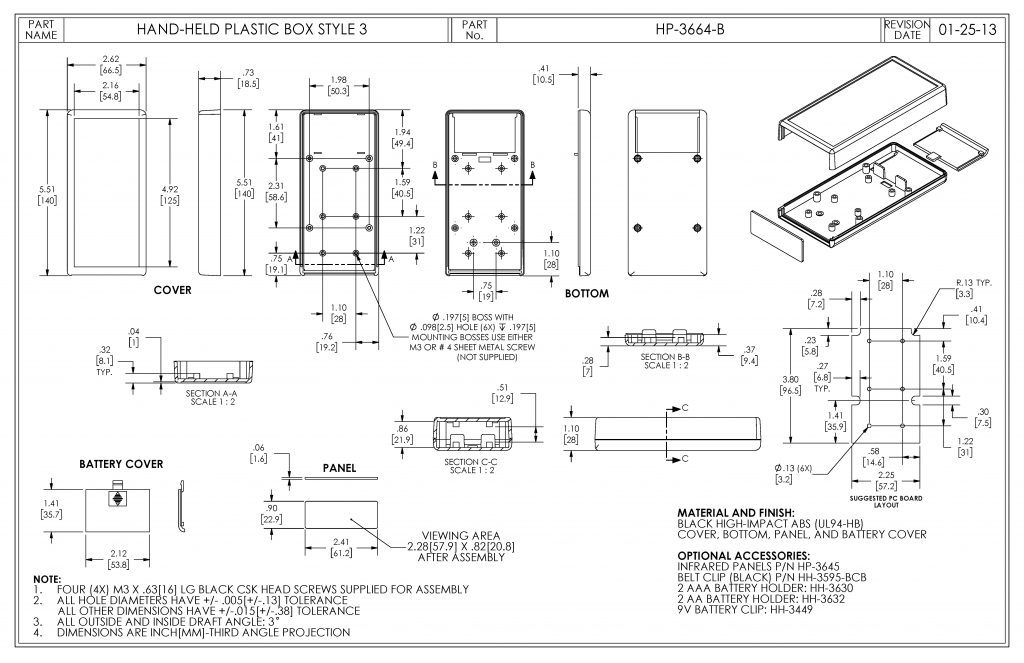

Drawing

HP-3664-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
HP-3660-B 3.62" x 2.62" x 0.83" 3.622.620.83 3.34" x 2.42" x 0.59"
HP-3661-B 3.62" x 2.62" x 1.10" 3.622.621.10 3.34" x 2.42" x 0.86"
HP-3662-B 4.41" x 2.62" x 0.83" 4.412.620.83 4.13" x 2.42" x 0.59"
HP-3663-B 4.41" x 2.62" x 1.10" 4.412.621.10 4.14" x 2.42" x 0.86"
HP-3664-B 5.51" x 2.62" x 1.10" 5.512.621.10 5.23" x 2.42" x 0.86"
