CU-3011-A

Minibox Small Metal Box CU-3011-A

Product Details

Model # CU-3011-A Minibox Small Metal Boxes
  • .040″ aluminum alloy

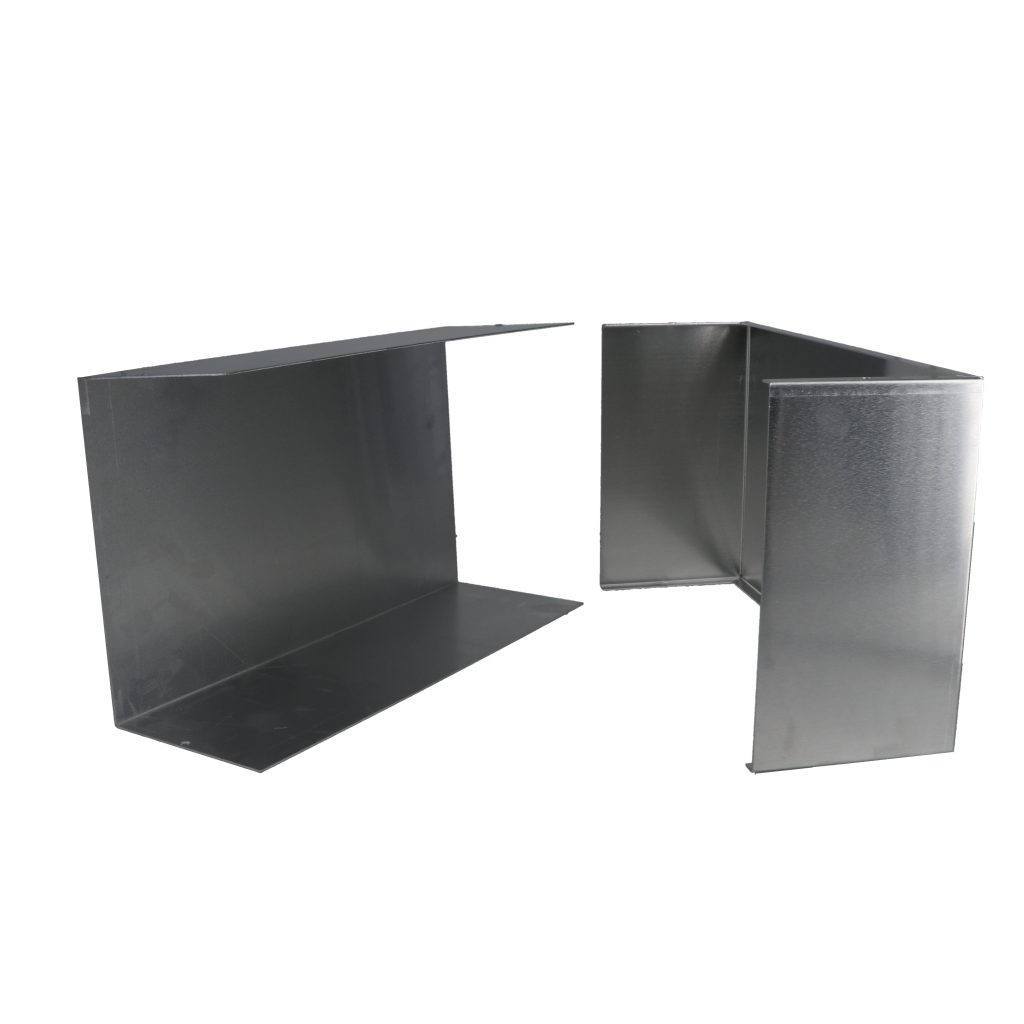

  • Two sections slip together and may be joined by either built in snap lock or sheet metal screws (included)
  • Flanged sections assure proper shielding
  • Units can be used as separate housings or as part of larger assemblies
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 12.00" x 7.00" x 4.00"
Internal Size L x W x D: 11.92" x 6.84" x 3.92"
Weight: 0.25 lbs
Color: Natural

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-3010-A 10.00" x 6.00" x 3.50" 10.006.003.50 9.92" x 5.84" x 3.42"
CU-2110-B 10.00" x 6.00" x 3.50" 10.006.003.50 9.92" x 5.84" x 3.42"
CU-3011-A 12.00" x 7.00" x 4.00" 12.007.004.00 11.92" x 6.84" x 3.92"
CU-2111-B 12.00" x 7.00" x 4.00" 12.007.004.00 11.92" x 6.84" x 3.92"
CU-3000-A 2.75" x 2.12" x 1.62" 2.752.121.62 2.67" x 1.96" x 1.54"
CU-2100-B 2.75" x 2.12" x 1.62" 2.752.121.62 2.67" x 1.96" x 1.54"
CU-2101-B 3.25" x 2.12" x 1.62" 3.252.121.62 3.17" x 1.96" x 1.54"
CU-3001-A 3.25" x 2.12" x 1.62" 3.252.121.62 3.17" x 1.96" x 1.54"
CU-2102-B 4.00" x 2.12" x 1.62" 4.002.121.62 3.92" x 1.96" x 1.54"
CU-3002-A 4.00" x 2.12" x 1.62" 4.002.121.62 3.92" x 1.96" x 1.54"
CU-3003-A 4.00" x 2.25" x 2.25" 4.002.252.25 3.92" x 2.09" x 2.17"
CU-2103-B 4.00" x 2.25" x 2.25" 4.002.252.25 3.92" x 2.09" x 2.17"
CU-2104-B 5.00" x 2.25" x 2.25" 5.002.252.25 4.92" x 2.09" x 2.17"
CU-3004-A 5.00" x 2.25" x 2.25" 5.002.252.25 4.92" x 2.09" x 2.17"
CU-2105-B 5.00" x 4.00" x 3.00" 5.004.003.00 4.92" x 3.84" x 2.92"
CU-3005-A 5.00" x 4.00" x 3.00" 5.004.003.00 4.92" x 3.84" x 2.92"
CU-2106-B 5.25" x 3.00" x 2.12" 5.253.002.12 5.17" x 2.84" x 2.04"
CU-3006-A 5.25" x 3.00" x 2.12" 5.253.002.12 5.17" x 2.84" x 2.04"
CU-3007-A 6.00" x 5.00" x 4.00" 6.005.004.00 5.92" x 4.84" x 3.92"
CU-2107-B 6.00" x 5.00" x 4.00" 6.005.004.00 5.92" x 4.84" x 3.92"
CU-3008-A 7.00" x 5.00" x 3.00" 7.005.003.00 6.92" x 4.84" x 2.92"
CU-2108-B 7.00" x 5.00" x 3.00" 7.005.003.00 6.92" x 4.84" x 2.92"
CU-2109-B 8.00" x 6.00" x 3.50" 8.006.003.50 7.92" x 5.84" x 3.42"
CU-3009-A 8.00" x 6.00" x 3.50" 8.006.003.50 7.92" x 5.84" x 3.42"
