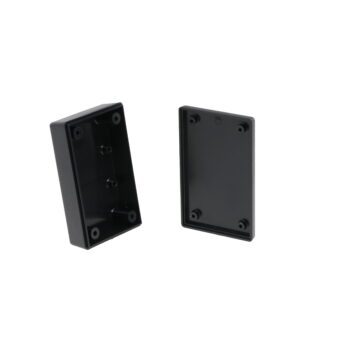

Plastibox Style F Plastic Electronic Enclosure Black PS-11521-B

Model # PS-11521-B Plastibox Style F Series Plastic Electronic Enclosure

Square corners and provisions for mounting horizontal and vertical PCBs
ABS plastic
UL94-HB flammability rating
Suggested service temperature -40C to 80C
Textured body with smooth insert

Check Stock / Pricing Request Modifications Compare Sizes and Models

External Size H x W x D: 1.02" x 2.25" x 3.63"

Internal Size H x W x D: 0.81" x 1.94" x 3.32"

Weight: 0.13 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-HB

Service Temperature Low: -40

Service Temperature High: 80

Bosses: Yes

Drawing

PS-11521-B Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PS-11521-B	1.02" x 2.25" x 3.63" 1.022.253.63	0.81" x 1.94" x 3.32"
PS-11521-G	1.02" x 2.25" x 3.63" 1.022.253.63	0.81" x 1.94" x 3.32"
PS-11533-B	1.52" x 3.25" x 4.38" 1.523.254.38	1.32" x 2.94" x 4.07"
PS-11533-G	1.52" x 3.25" x 4.38" 1.523.254.38	1.32" x 2.94" x 4.07"
PS-11543-B	1.52" x 3.25" x 5.63" 1.523.255.63	1.32" x 2.89" x 5.32"
PS-11543-G	1.52" x 3.25" x 5.63" 1.523.255.63	1.32" x 2.89" x 5.32"
PS-11553-B	1.54" x 4.88" x 6.88" 1.544.886.88	1.34" x 4.57" x 6.57"
PS-11553-G	1.54" x 4.88" x 6.88" 1.544.886.88	1.34" x 4.57" x 6.57"
PT-11557-B	2.52" x 4.88" x 6.88" 2.524.886.88	6.57" x 4.57" x 2.32"
PT-11557-G	2.52" x 4.88" x 6.88" 2.524.886.88	6.57" x 4.57" x 2.32"
PBS-11532-B	4.38" x 3.25" x 1.52" 4.383.251.52	4.07" x 2.94" x 1.32"
PBS-11532-G	4.38" x 3.25" x 1.52" 4.383.251.52	4.07" x 2.94" x 1.32"
