PT-11853-FMB

Plastibox Style M Plastic Electronic Enclosure with Mounting Bosses Mounting Flanges PT-11853-FMB
  • Plastibox Style M

Product Details

Model # PT-11853-FMB Plastibox Style M Series Plastic Electronic Enclosure
  • Sleek, contemporary styling with rounded corners and edges
  • Mar resistant textured surface
  • Black color
  • Durable, self-extinguishing, ABS plastic material
  • UL94-V0 flammability rating
  • External mounting flanges in base
  • Internal PCB mounting bosses in base
  • Cover is securely attached to the base with four matched screws
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size H x W x D: 1.59" x 2.23" x 4.11"
Internal Size H x W x D: 1.39" x 2.00" x 3.95"
Weight: 0.35 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-V0
Bosses: Yes

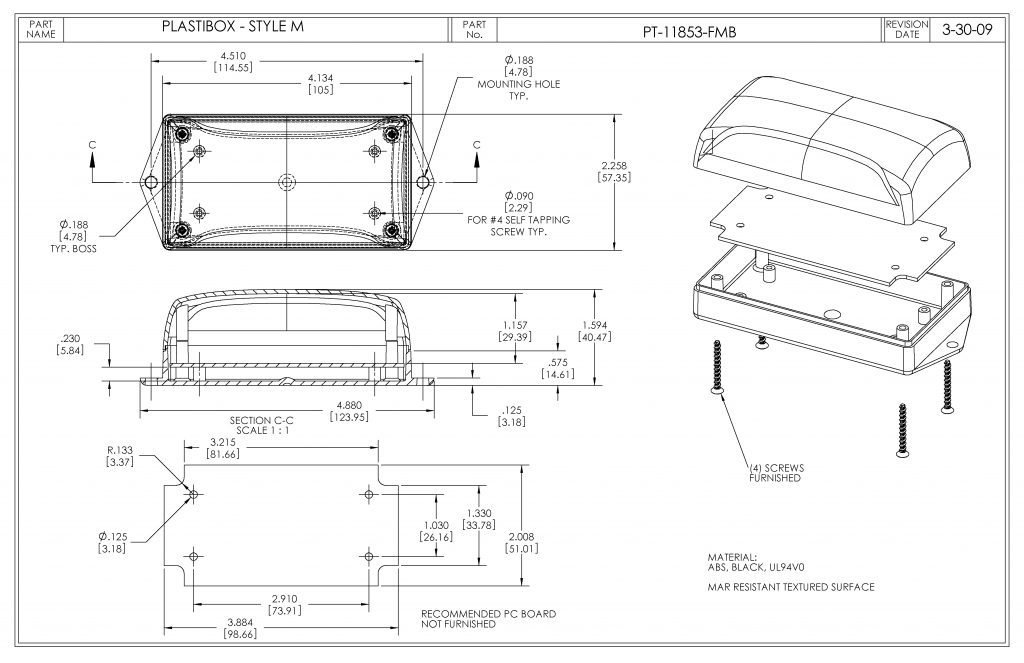

Drawing

PT-11853-FMB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PT-11850-PMB 1.00" x 2.09" x 3.09" 1.002.093.09 0.80" x 1.93" x 2.93"
PT-11850-PXX 1.00" x 2.09" x 3.09" 1.002.093.09 0.80" x 1.93" x 2.93"
PT-11852-PMB 1.00" x 2.23" x 4.11" 1.002.234.11 0.80" x 2.09" x 3.95"
PT-11852-PXX 1.00" x 2.23" x 4.11" 1.002.234.11 0.80" x 2.09" x 3.95"
PT-11851-FMB 1.59" x 2.09" x 3.09" 1.592.093.09 1.39" x 1.84" x 2.93"
PT-11851-PMB 1.59" x 2.09" x 3.09" 1.592.093.09 1.39" x 1.84" x 2.93"
PT-11853-FMB 1.59" x 2.23" x 4.11" 1.592.234.11 1.39" x 2.00" x 3.95"
PT-11853-PMB 1.59" x 2.23" x 4.11" 1.592.234.11 1.39" x 2.00" x 3.95"
