PW Series UL94-5VA ABS Enclosure PW-12849-TMB

Model # PW-12849-TMB PW Series UL94-5VA ABS Plastic Enclosure

Made from black ABS plastic
Meets both UL94-5VA and UL94-V0 flammability ratings
Designed for indoor use
Stylish rounded design
PCB mounting bosses in base
Thread-forming cover screws
Textured area on cover for mar-resistant finish
With molded mounting flanges

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 6.00" x 4.38" x 1.97"

Internal Size L x W x D: 5.80" x 4.18" x 1.77"

Weight: 0.49 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-5A

Mounting Style: Molded Mounting Flanges

Bosses: Yes

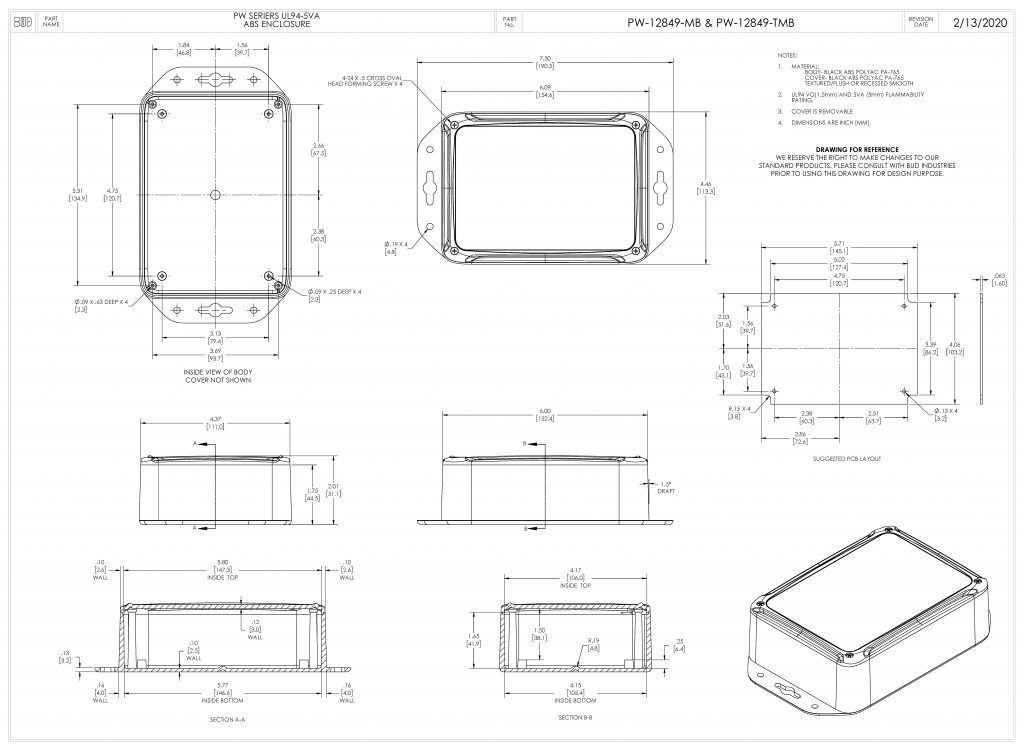

Drawing

PW-12849-TMB Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PW-12848-TMB	4.00" x 4.00" x 1.85" 4.004.001.85	3.80" x 3.80" x 1.65"
PW-12848	4.00" x 4.00" x 1.85" 4.004.001.85	3.80" x 3.80" x 1.65"
PW-12848-T	4.00" x 4.00" x 1.85" 4.004.001.85	3.80" x 3.80" x 1.65"
PW-12848-MB	4.00" x 4.00" x 1.85" 4.004.001.85	3.80" x 3.80" x 1.65"
PW-12846-T	4.50" x 3.38" x 1.85" 4.503.381.85	4.30" x 3.18" x 1.65"
PW-12846-MB	4.50" x 3.38" x 1.85" 4.503.381.85	4.30" x 3.18" x 1.65"
PW-12846-TMB	4.50" x 3.38" x 1.85" 4.503.381.85	4.30" x 3.18" x 1.65"
PW-12846	4.50" x 3.38" x 1.85" 4.503.381.85	4.30" x 3.18" x 1.65"
PW-12847-MB	5.25" x 3.75" x 1.97" 5.253.751.97	5.05" x 3.55" x 1.77"
PW-12847	5.25" x 3.75" x 1.97" 5.253.751.97	5.05" x 3.55" x 1.77"
PW-12847-TMB	5.25" x 3.75" x 1.97" 5.253.751.97	5.05" x 3.55" x 1.77"
PW-12847-T	5.25" x 3.75" x 1.97" 5.253.751.97	5.05" x 3.55" x 1.77"
PW-12849-T	6.00" x 4.38" x 1.97" 6.004.381.97	5.80" x 4.18" x 1.77"
PW-12849-MB	6.00" x 4.38" x 1.97" 6.004.381.97	5.80" x 4.18" x 1.77"
PW-12849-TMB	6.00" x 4.38" x 1.97" 6.004.381.97	5.80" x 4.18" x 1.77"
PW-12849	6.00" x 4.38" x 1.97" 6.004.381.97	5.80" x 4.18" x 1.77"
PW-12850-T	7.25" x 5.00" x 2.22" 7.255.002.22	7.05" x 4.80" x 2.02"
PW-12850	7.25" x 5.00" x 2.22" 7.255.002.22	7.05" x 4.80" x 2.02"
PW-12850-MB	7.25" x 5.00" x 2.22" 7.255.002.22	7.05" x 4.80" x 2.02"
PW-12850-TMB	7.25" x 5.00" x 2.22" 7.255.002.22	7.05" x 4.80" x 2.02"
