BB-1801-BT

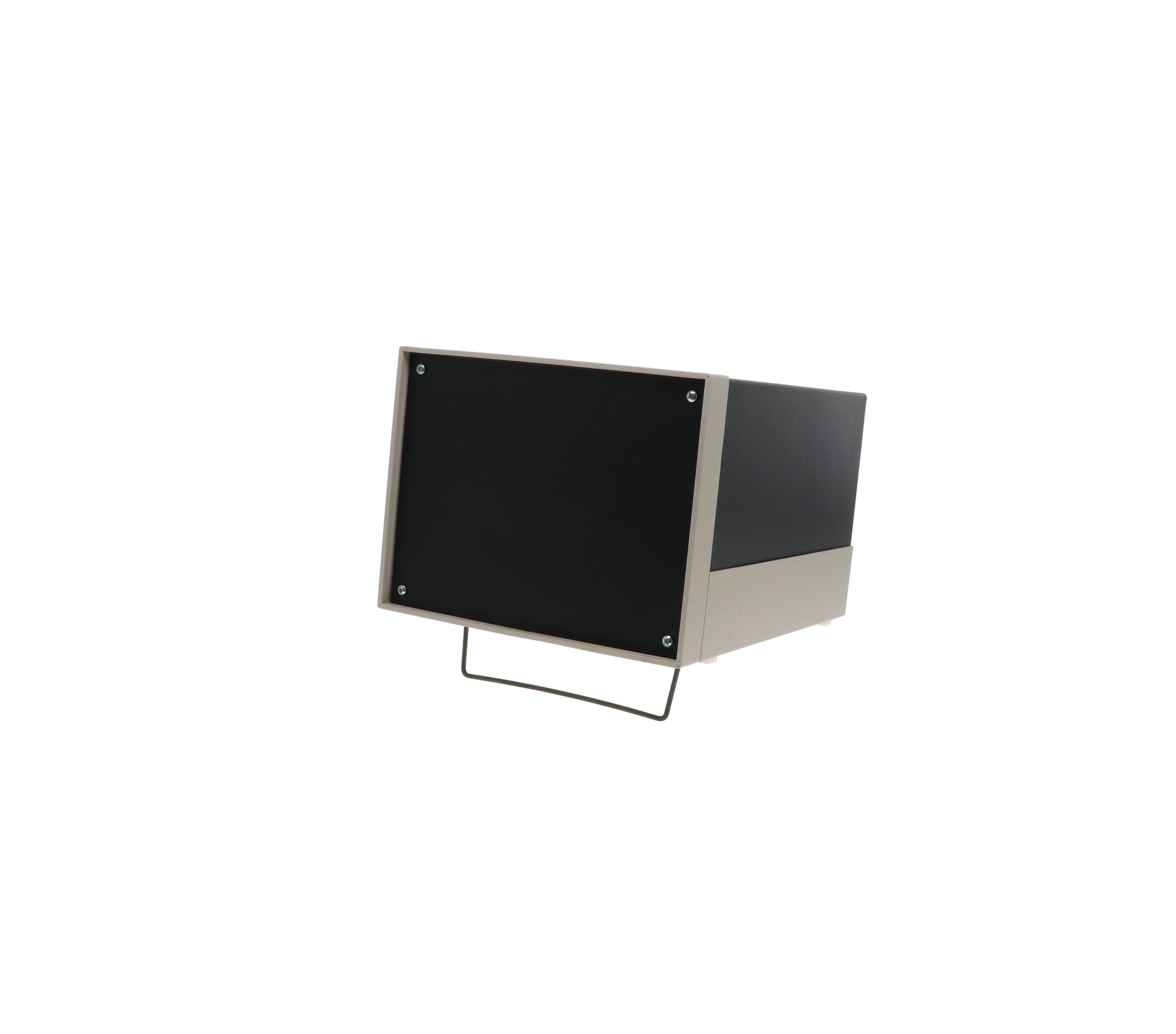

Showcase Metal Electronics Box Black BB-1801-BT
  • Showcase Metal Electronics Box

Product Details

Model # BB-1801-BT Showcase Metal Electronics Box
  • Top, sides, and bottom, 0.05-inch aluminum
  • Front panel 0.09-inch aluminum
  • Rear panel, 0.05-inch aluminum
  • Extruded aluminum frame
  • Side gussets provide added strength
  • Strong, flexible handle is recessed and secured firmly into top for safe handling
  • Carrying handle limited to 25# load capacity
  • Ventilation slots under handle
  • Use with chassis or PC boards
  • Front panel and chassis may be loaded from front or rear
  • Comes with front and rear panels and bail
Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size H x W x D: 6.43" x 8.31" x 11.00"
Internal Size H x W x D: 5.94" x 7.80" x 10.00"
Weight: 4 lbs
Color: Black Textured Body / White Frame
Ventilated: Ventilated
Handles: Handles

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
BB-1800-RB 6.43" x 5.50" x 11.00" 6.435.5011.00 5.94" x 5.00" x 10.00"
BB-1800-BT 6.43" x 5.50" x 11.00" 6.435.5011.00 5.94" x 5.00" x 10.00"
BB-1801-BT 6.43" x 8.31" x 11.00" 6.438.3111.00 5.94" x 7.80" x 10.00"
BB-1801-RB 6.43" x 8.31" x 11.00" 6.438.3111.00 5.94" x 7.80" x 10.00"
BB-1804-RB 8.18" x 11.06" x 11.00" 8.1811.0611.00 7.69" x 10.58" x 10.00"
BB-1804-BT 8.18" x 11.06" x 11.00" 8.1811.0611.00 7.69" x 10.58" x 10.00"
BB-1802-RB 8.18" x 5.50" x 11.00" 8.185.5011.00 7.69" x 5.00" x 10.00"
BB-1802-BT 8.18" x 5.50" x 11.00" 8.185.5011.00 7.69" x 5.00" x 10.00"
BB-1803-BT 8.18" x 8.31" x 11.00" 8.188.3111.00 7.69" x 7.92" x 10.00"
BB-1803-RB 8.18" x 8.31" x 11.00" 8.188.3111.00 7.69" x 7.92" x 10.00"
BB-1808-BT 9.93" x 11.06" x 11.00" 9.9311.0611.00 9.44" x 10.58" x 10.00"
BB-1808-RB 9.93" x 11.06" x 11.00" 9.9311.0611.00 9.44" x 10.58" x 10.00"
BB-1809-BT 9.93" x 11.06" x 15.00" 9.9311.0615.00 9.44" x 10.58" x 14.00"
BB-1809-RB 9.93" x 11.06" x 15.00" 9.9311.0615.00 9.44" x 10.58" x 14.00"
BB-1806-BT 9.93" x 8.31" x 11.00" 9.938.3111.00 9.44" x 7.80" x 10.00"
BB-1806-RB 9.93" x 8.31" x 11.00" 9.938.3111.00 9.44" x 7.80" x 10.00"
BB-1807-BT 9.93" x 8.31" x 15.00" 9.938.3115.00 9.44" x 7.80" x 14.00"
BB-1807-RB 9.93" x 8.31" x 15.00" 9.938.3115.00 9.44" x 7.80" x 14.00"
