Slimcab Metal Enclosures for Electronics Black CS-11227-B - Bud Industries

Home / Products / General Use Boxes / Slimcab Metal Enclosures for Electronics / Slimcab Metal Enclosures for Electronics Black CS-11227-B

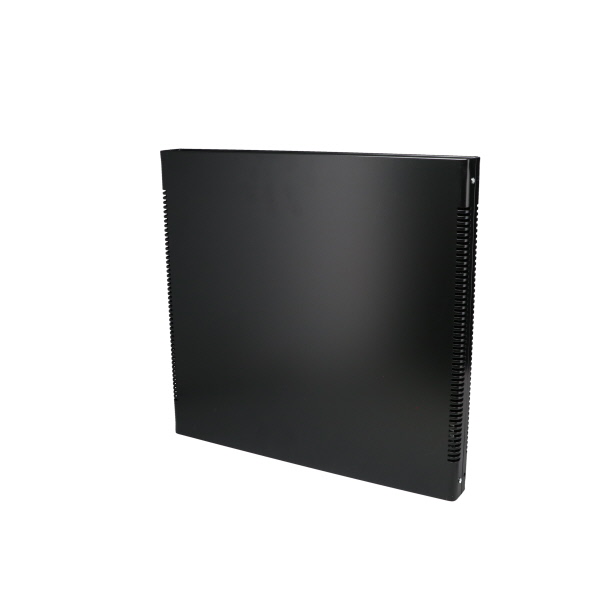

Slimcab Metal Enclosures for Electronics Black CS-11227-B

Model # CS-11227-B Slimcab Metal Enclosures for Electronics

Cover: 0.05-inch aluminum
Panels: 0.120-inch “Surface Shield” aluminum
Sides vented for cooling
1U (1.75 inches) high
Suitable for desktop or 19-inch rack mount use with optional brackets

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 1.75" x 17.00" x 16.00"

Internal Size L x W x D: 1.65" x 16.80" x 15.00"

Weight: 4.5 lbs

Color: Black Smooth Powder Coated

Number of U: 1

Drawing

CS-11227-B Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
CS-11227-B	1.75" x 17.00" x 16.00" 1.7517.0016.00	1.65" x 16.80" x 15.00"
CS-11227-S	1.75" x 17.00" x 16.00" 1.7517.0016.00	1.65" x 16.80" x 15.00"
CS-11225-B	1.75" x 17.00" x 8.00" 1.7517.008.00	1.65" x 16.80" x 7.00"
CS-11225-S	1.75" x 17.00" x 8.00" 1.7517.008.00	1.65" x 16.80" x 7.00"
CS-11221-B	1.75" x 8.50" x 8.00" 1.758.508.00	1.65" x 8.40" x 7.00"
CS-11221-S	1.75" x 8.50" x 8.00" 1.758.508.00	1.65" x 8.40" x 7.00"
