CU-743

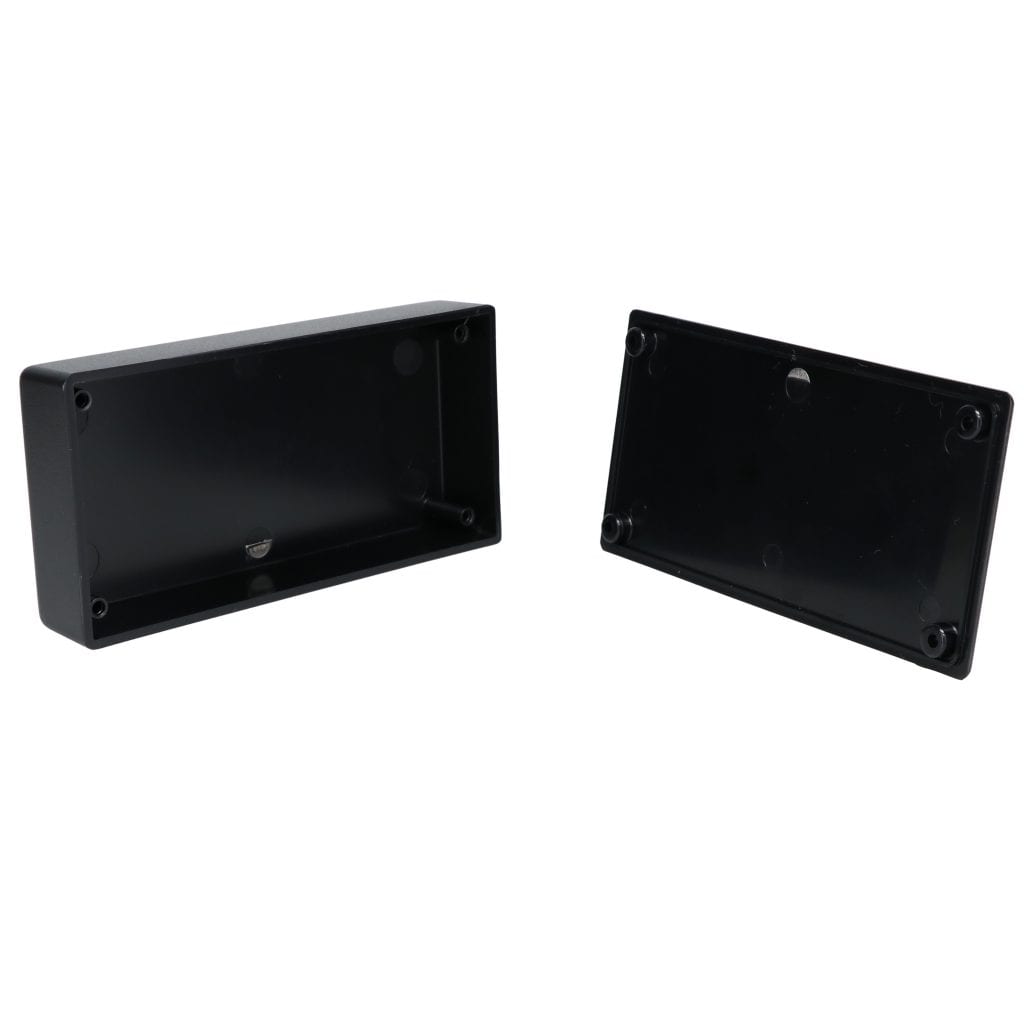

Utilibox Style D Plastic Utility Box CU-743

Product Details

Model # CU-743 Utilibox Style D Series Utility Boxes
  • Finish: Fine Textured Black — well suited for silk-screening or pad printing
  • Special colors available on request
  • High Impact Polystyrene
  • Temperature Range -40 to +70 °C
  • Comes with close fitting interlocking lid and assembly hardware
  • Provisions for mounting horizontal PCB
  • Flame retardant material available on request
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 5.03" x 2.53" x 1.03"
Internal Size L x W x D: 4.73" x 2.23" x 0.81"
Weight: 0.16 lbs
Color: Black
Type of Plastic: Polystyrene
Service Temperature Low: -40
Service Temperature High: 70

Drawing

CU-743 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-741 2.26" x 1.51" x 0.78" 2.261.510.78 2.10" x 1.35" x 0.64"
CU-741-MB 2.26" x 1.51" x 0.78" 2.261.510.78 2.10" x 1.35" x 0.64" Mounting Flanges
CU-742 3.00" x 2.50" x 1.00" 3.002.501.00 2.75" x 2.25" x 0.80"
CU-742-MB 3.00" x 2.50" x 1.00" 3.002.501.00 2.75" x 2.25" x 0.80" Mounting Flanges
CU-744 3.00" x 2.50" x 1.60" 3.002.501.60 2.75" x 2.30" x 1.40"
CU-744-MB 3.00" x 2.50" x 1.60" 3.002.501.60 2.75" x 2.25" x 1.40" Mounting Flanges
CU-743 5.03" x 2.53" x 1.03" 5.032.531.03 4.73" x 2.23" x 0.81"
CU-743-MB 5.03" x 2.53" x 1.03" 5.032.531.03 4.73" x 2.23" x 0.81" Welded Mounting Flanges
CU-745 5.03" x 2.53" x 1.62" 5.032.531.62 4.73" x 2.24" x 1.40"
CU-745-MB 5.03" x 2.53" x 1.62" 5.032.531.62 4.73" x 2.24" x 1.40" Mounting Flanges
