CU-1872-B

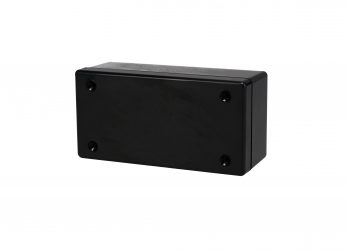

Utilibox Style F Plastic Utility Box Black CU-1872-B

Product Details

Model # CU-1872-B Utilibox Style F Series Utility Boxes
  • ABS plastic
  • UL 94-HB flammability rating
  • Suggested service temperature -40 degrees C to +80 degrees C

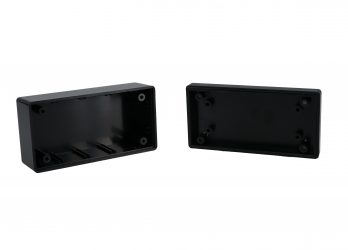

  • Comes with close fitting interlocking lid and assembly hardware
  • Provisions for mounting horizontal and vertical PCB
Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 3.73" x 1.88" x 1.48"
Internal Size L x W x D: 3.42" x 1.57" x 1.28"
Weight: 0.13 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -40
Service Temperature High: 80

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-1872-B 3.73" x 1.88" x 1.48" 3.731.881.48 3.42" x 1.57" x 1.28"
CU-1872-G 3.73" x 1.88" x 1.48" 3.731.881.48 3.42" x 1.57" x 1.28"
CU-1874-B 5.30" x 2.94" x 1.95" 5.302.941.95 5.01" x 2.65" x 1.75"
CU-1874-G 5.30" x 2.94" x 1.95" 5.302.941.95 5.01" x 2.65" x 1.75"
