Home / Products / General Use Boxes / Utilibox Style G Series Utility Boxes / Utilibox G with Mounting Flanges CU-389-MB

CU-389-MB

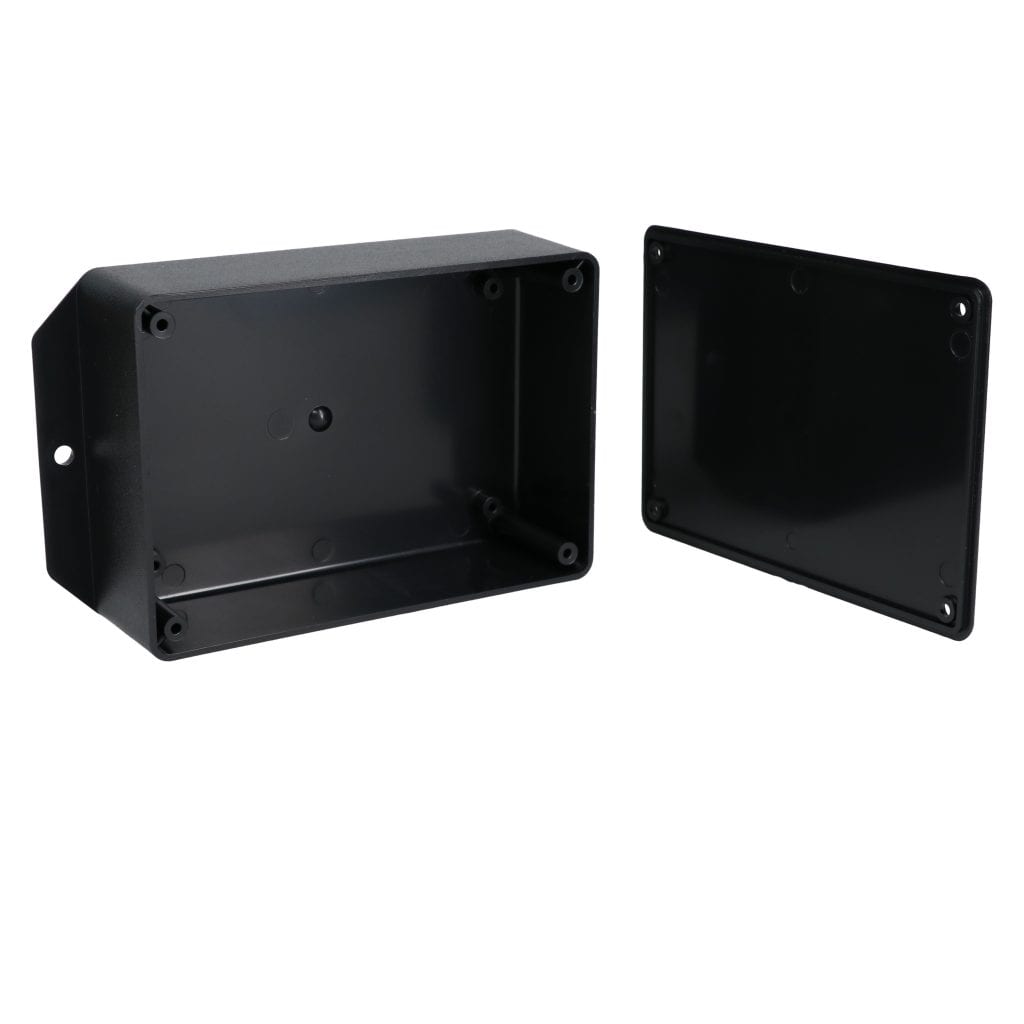

Utilibox G with Mounting Flanges CU-389-MB

Product Details

Model # CU-389-MB Utilibox Style G Series Utility Boxes
  • Textured finish
  • Molded-in mounting flange
  • ABS plastic with UL94V-O flammability rating
  • Suggested service temperature of – 20 degrees C to +70 degrees C
  • Comes with close fitting interlocking lid and assembly hardware
  • Horizontal PCB mounting bosses
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 5.07" x 3.57" x 1.59"
Internal Size L x W x D: 4.85" x 3.35" x 1.42"
Weight: 0.25 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
Mounting Style: Mounting Flanges

Drawing

CU-389-MB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-388 4.31" x 3.06" x 1.46" 4.313.061.46 4.10" x 2.85" x 1.30"
CU-388-MB 4.31" x 3.06" x 1.46" 4.313.061.46 4.10" x 2.85" x 1.30" Mounting Flanges
CU-389 5.07" x 3.57" x 1.59" 5.073.571.59 4.80" x 3.30" x 1.42"
CU-389-MB 5.07" x 3.57" x 1.59" 5.073.571.59 4.85" x 3.35" x 1.42" Mounting Flanges
CU-387 5.59" x 4.34" x 1.84" 5.594.341.84 5.32" x 4.07" x 1.66"
CU-387-MB 5.59" x 4.34" x 1.84" 5.594.341.84 5.32" x 4.07" x 1.66" Mounting Flanges
