CU-1472-MB

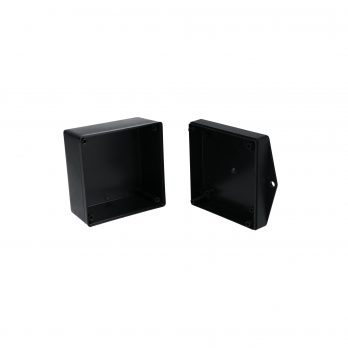

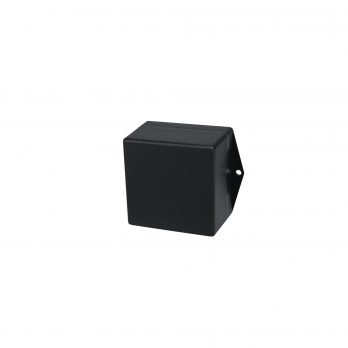

Utilibox Style H Plastic Utility Box with Mounting Flanges CU-1472-MB

Product Details

Model # CU-1472-MB Utilibox Style H Series Utility Boxes
  • Flame retardant ABS plastic with UL 94V-O flammability rating
  • Suggested service temperature -20 degrees C to +70 degrees C
  • Comes with close fitting interlocking screw-on and assembly hardware
  • Horizontal PCB mounting bosses
  • Textured finish
  • Molded-in mounting flange
  • Special colors available on request
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 3.10" x 3.07" x 2.09"
Internal Size L x W x D: 2.86" x 2.86" x 1.93"
Weight: 0.22 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
Mounting Style: Mounting Flanges

Drawing

CU-1472-MB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-1470 3.07" x 2.10" x 1.49" 3.072.101.49 2.86" x 1.86" x 1.33"
CU-1470-MB 3.07" x 2.10" x 1.49" 3.072.101.49 2.86" x 1.86" x 1.33" Mounting Flanges
CU-1471 3.07" x 2.10" x 2.09" 3.072.102.09 2.86" x 1.86" x 1.93"
CU-1471-MB 3.07" x 2.10" x 2.09" 3.072.102.09 2.86" x 1.86" x 1.93" Mounting Flanges
CU-1472 3.10" x 3.07" x 2.09" 3.103.072.09 2.86" x 2.86" x 1.93"
CU-1472-MB 3.10" x 3.07" x 2.09" 3.103.072.09 2.86" x 2.86" x 1.93" Mounting Flanges
CU-1473 4.05" x 1.80" x 1.27" 4.051.801.27 3.86" x 1.61" x 1.11"
CU-1473-MB 4.05" x 1.80" x 1.27" 4.051.801.27 3.86" x 1.61" x 1.11" Mounting Flanges
CU-1474 4.10" x 2.25" x 1.49" 4.102.251.49 3.86" x 2.04" x 1.33"
CU-1474-MB 4.10" x 2.25" x 1.49" 4.102.251.49 3.86" x 2.04" x 1.33" Mounting Flanges
CU-1475 4.10" x 2.25" x 2.59" 4.102.252.59 3.86" x 1.98" x 2.43"
CU-1475-MB 4.10" x 2.25" x 2.59" 4.102.252.59 3.86" x 1.98" x 2.43" Mounting Flanges
CU-1476 4.47" x 3.25" x 2.70" 4.473.252.70 4.17" x 2.92" x 2.54"
CU-1476-MB 4.47" x 3.25" x 2.70" 4.473.252.70 4.17" x 2.92" x 2.54" Mounting Flanges
