CU-3242-MB

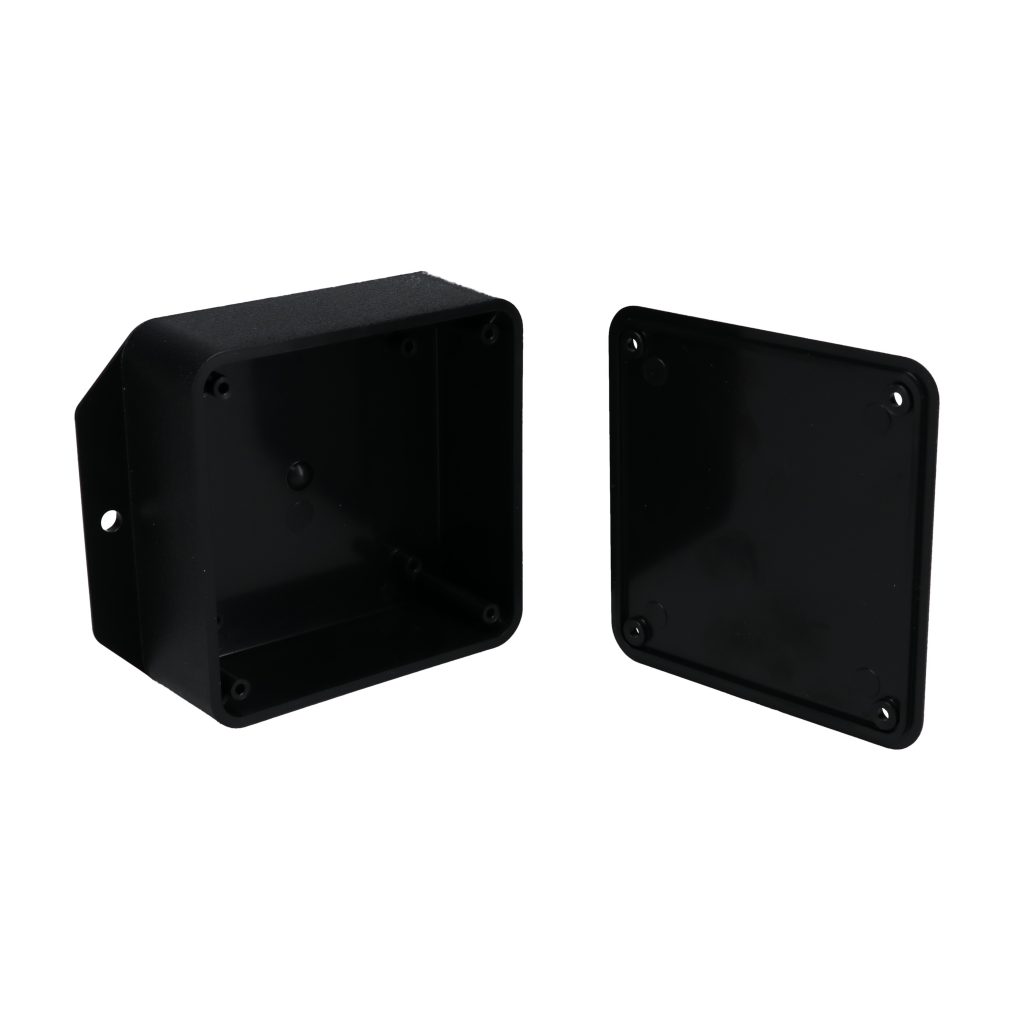

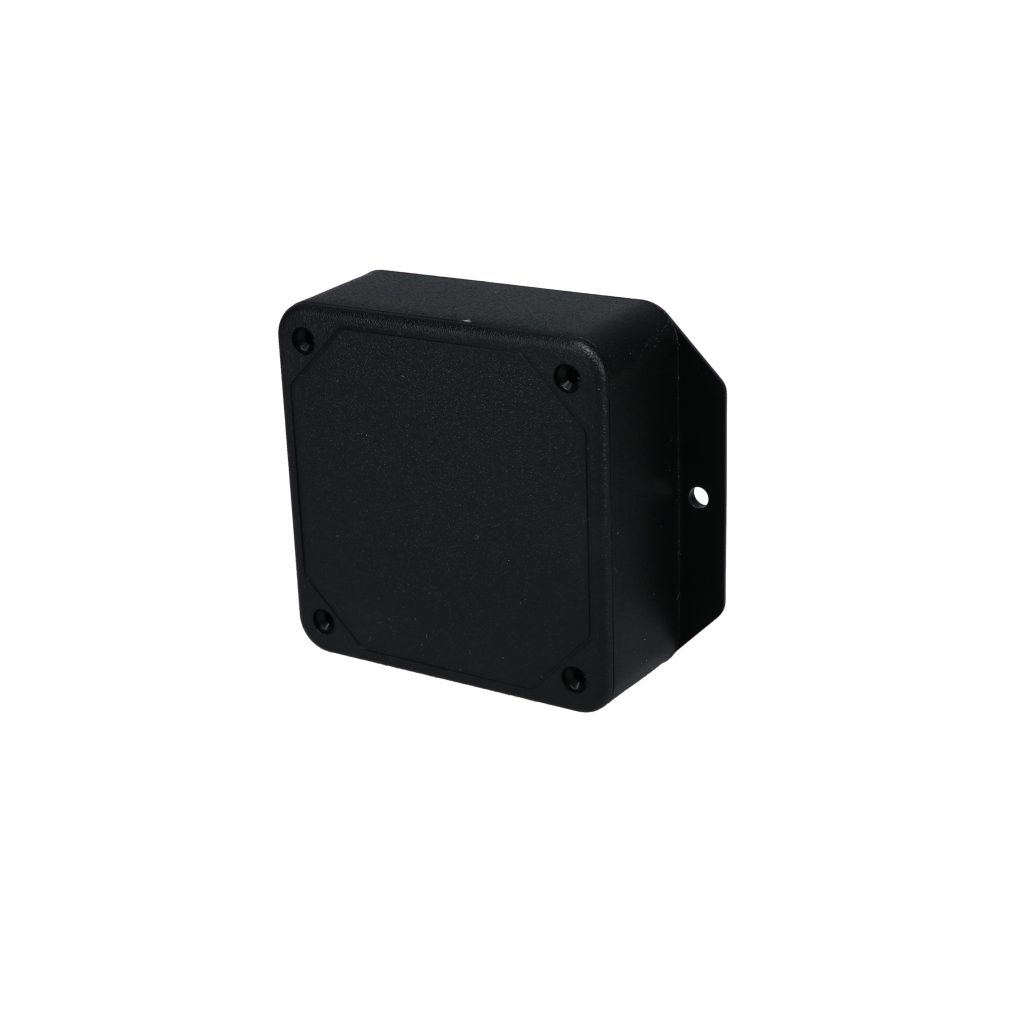

Utilibox Style I Plastic Utility Box with Mounting Flanges CU-3242-MB

Product Details

Model # CU-3242-MB Utilibox Style I Series Utility Boxes
  • Textured surface makes it more mar-resistant
  • Flush mounted black colored screws improve looks
  • Insert in top allows for easy modification
  • ABS plastic with UL94-5VA flammability rating
  • Internal PCB mounting bosses
  • Textured finish
  • Molded-in mounting flange
  • Special colors on request
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 3.35" x 3.30" x 1.35"
Internal Size L x W x D: 3.10" x 3.10" x 1.15"
Weight: 0.21 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-5VA
Bosses: Yes
Mounting Style: Mounting Flanges

Drawing

CU-3242-MB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CU-3241 2.54" x 2.50" x 1.00" 2.542.51.00 2.30" x 2.30" x 0.80"
CU-3241-MB 2.54" x 2.50" x 1.00" 2.542.501.00 2.30" x 2.30" x 0.80" Mounting Flanges
CU-3240-MB 3.34" x 2.20" x 1.10" 3.342.21.10 3.09" x 2.22" x 0.90" Mounting Flanges
CU-3240 3.34" x 2.42" x 1.10" 3.342.421.10 3.09" x 2.22" x 0.90"
CU-3242 3.35" x 3.30" x 1.35" 3.353.301.35 3.10" x 3.10" x 1.15"
CU-3242-MB 3.35" x 3.30" x 1.35" 3.353.301.35 3.10" x 3.10" x 1.15" Mounting Flanges
CU-3243 4.21" x 2.80" x 1.10" 4.212.801.10 3.97" x 2.61" x 0.90"
CU-3243-MB 4.21" x 2.80" x 1.10" 4.212.801.10 3.96" x 2.61" x 0.90" Mounting Flanges
CU-3244 4.61" x 3.30" x 1.35" 4.613.301.35 4.35" x 3.10" x 1.15"
CU-3244-MB 4.61" x 3.30" x 1.35" 4.613.301.35 4.34" x 3.10" x 1.15" Mounting Flanges
CU-3245 5.60" x 3.85" x 1.35" 5.603.851.35 5.35" x 3.59" x 1.15"
CU-3245-MB 5.60" x 3.85" x 1.35" 5.603.851.35 5.35" x 3.59" x 1.15" Mounting Flanges
