Utilibox Style L Plastic Utility Box CU-1933-MB - Bud Industries

Home / Products / General Use Boxes / Utilibox Style L Series Utility Boxes / Utilibox Style L Plastic Utility Box CU-1933-MB

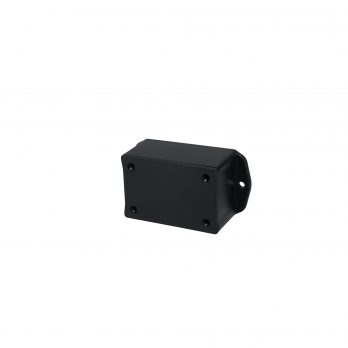

Utilibox Style L Plastic Utility Box CU-1933-MB

Model # CU-1933-MB Utilibox Style L Series Utility Boxes

Flame retardant ABS plastic with UL 94V-O flammability rating
Suggested service temperature -20 degrees C to +70 degrees C
Comes with close fitting interlocking screw-on and assembly hardware
Horizontal PCB mounting bosses
Textured finish
Molded-in mounting flange
Finish: Fine Textured Black — well suited for silk-screening or pad printing
Special colors available on request

Check Stock / Pricing Request Modifications Compare Sizes and Models

External Size L x W x D: 3.12" x 2.13" x 1.58"

Internal Size L x W x D: 2.90" x 1.90" x 1.43"

Weight: 0.13 lbs

Color: Black

Type of Plastic: ABS

Flammability Rating: UL94-V0

Service Temperature Low: -20

Service Temperature High: 70

Bosses: Yes

Mounting Style: Mounting Flanges

Drawing

CU-1933-MB Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
CU-1935-MB	3.11" x 3.10" x 0.95" 3.113.100.95	2.90" x 2.90" x 0.79"
CU-1937-MB	3.11" x 3.13" x 1.56" 3.113.131.56	2.90" x 2.90" x 1.40"
CU-1931-MB	3.12" x 2.10" x 1.07" 3.122.101.07	2.90" x 1.90" x 0.93"
CU-1933-MB	3.12" x 2.13" x 1.58" 3.122.131.58	2.90" x 1.90" x 1.43"
