NHC-14157

ValuLine Series Aluminum Chassis Enclosure NHC-14157
2 Videos

Product Details

Model # NHC-14157 ValuLine Series Chassis Enclosure
  • Sides: 0.09-inch aluminum, white textured
  • Front panel: 0.13-inch aluminum, natural
  • Base, rear and top: 0.05-inch aluminum, smooth white
  • Two detachable 11 gauge steel rack mounting brackets and rubber feet included
  • Adhesive backed plastic film protects panels and provides surface for laying out position for drilling or punching
  • Accessory bails available
  • Shipped unassembled
  • Also available with handles HC-14104

 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size H x W x D: 7.00" x 17.00" x 13.00"
Internal Size H x W x D: 6.25" x 16.69" x 12.75"
Weight: 10.8 lbs
Color: White Textured Powder Coated
Handles: No Handles

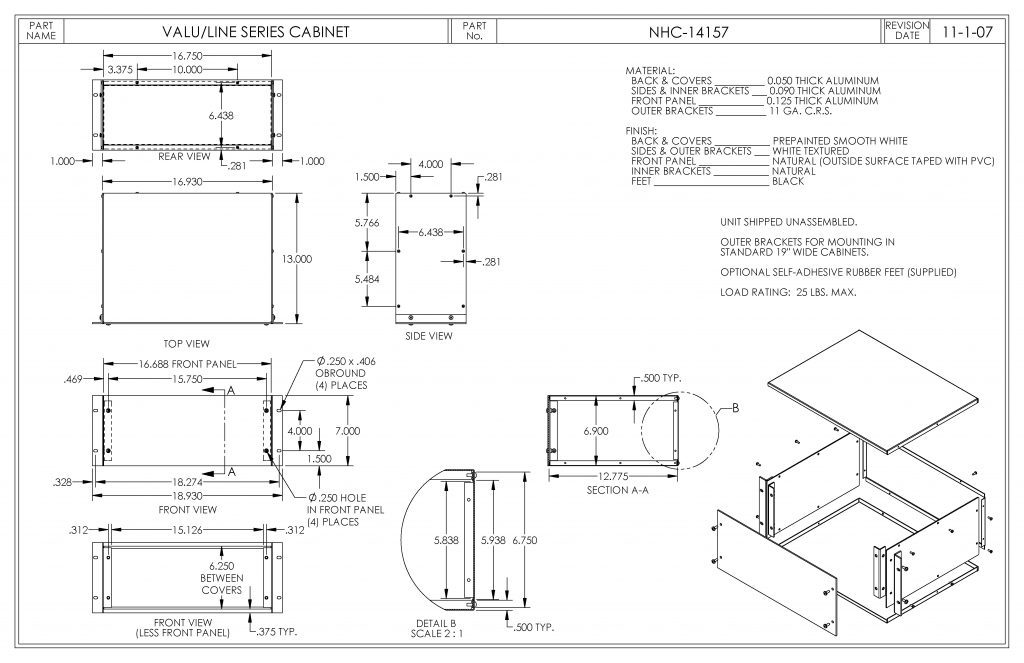

Drawing

NHC-14157 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Handles
HC-14098 1.75" x 17.00" x 13.00" 1.7517.0013.00 1.65" x 16.65" x 12.77" Handles
NHC-14152 1.75" x 17.00" x 13.00" 1.7517.0013.00 1.65" x 16.69" x 12.75" No Handles
NHC-14151 1.75" x 17.00" x 8.00" 1.7517.008.00 1.65" x 16.69" x 7.75" No Handles
HC-14097 1.75" x 17.00" x 8.00" 1.7517.008.00 1.65" x 16.65" x 7.77" Handles
NHC-14150 1.75" x 8.50" x 8.00" 1.758.508.00 1.65" x 8.25" x 7.75" No Handles
HC-14106 10.50" x 17.00" x 13.00" 10.5017.0013.00 10.40" x 16.65" x 12.72" Handles
HC-14107 10.50" x 17.00" x 15.00" 10.5017.0015.00 10.40" x 16.65" x 14.72" Handles
HC-14108 12.25" x 17.00" x 15.00" 12.2517.0015.00 12.15" x 16.65" x 14.72" Handles
HC-14109 14.00" x 17.00" x 15.00" 14.0017.0015.00 13.90" x 16.65" x 14.72" Handles
HC-14100 3.50" x 12.75" x 13.00" 3.5012.7513.00 3.40" x 12.40" x 12.72" Handles
HC-14101 3.50" x 17.00" x 13.00" 3.5017.0013.00 3.40" x 16.65" x 12.72" Handles
NHC-14155 3.50" x 17.00" x 13.00" 3.5017.0013.00 2.75" x 16.69" x 12.75" No Handles
HC-14099 3.50" x 17.00" x 8.00" 3.5017.008.00 3.40" x 16.65" x 7.69" Handles
NHC-14154 3.50" x 17.00" x 8.00" 3.5017.008.00 2.75" x 16.69" x 7.75" No Handles
NHC-14153 3.50" x 8.50" x 8.00" 3.508.508.00 2.75" x 8.25" x 7.75" No Handles
HC-14102 5.25" x 12.75" x 13.00" 5.2512.7513.00 5.15" x 12.40" x 12.72" Handles
HC-14103 5.25" x 17.00" x 13.00" 5.2517.0013.00 5.15" x 16.65" x 12.72" Handles
NHC-14156 5.25" x 17.00" x 13.00" 5.2517.0013.00 4.50" x 16.69" x 12.75" No Handles
HC-14104 7.00" x 17.00" x 13.00" 7.0017.0013.00 6.90" x 16.65" x 12.72" Handles
NHC-14157 7.00" x 17.00" x 13.00" 7.0017.0013.00 6.25" x 16.69" x 12.75" No Handles
HC-14105 8.75" x 17.00" x 13.00" 8.7517.0013.00 8.65" x 16.65" x 12.72" Handles
