AN-2850-AB

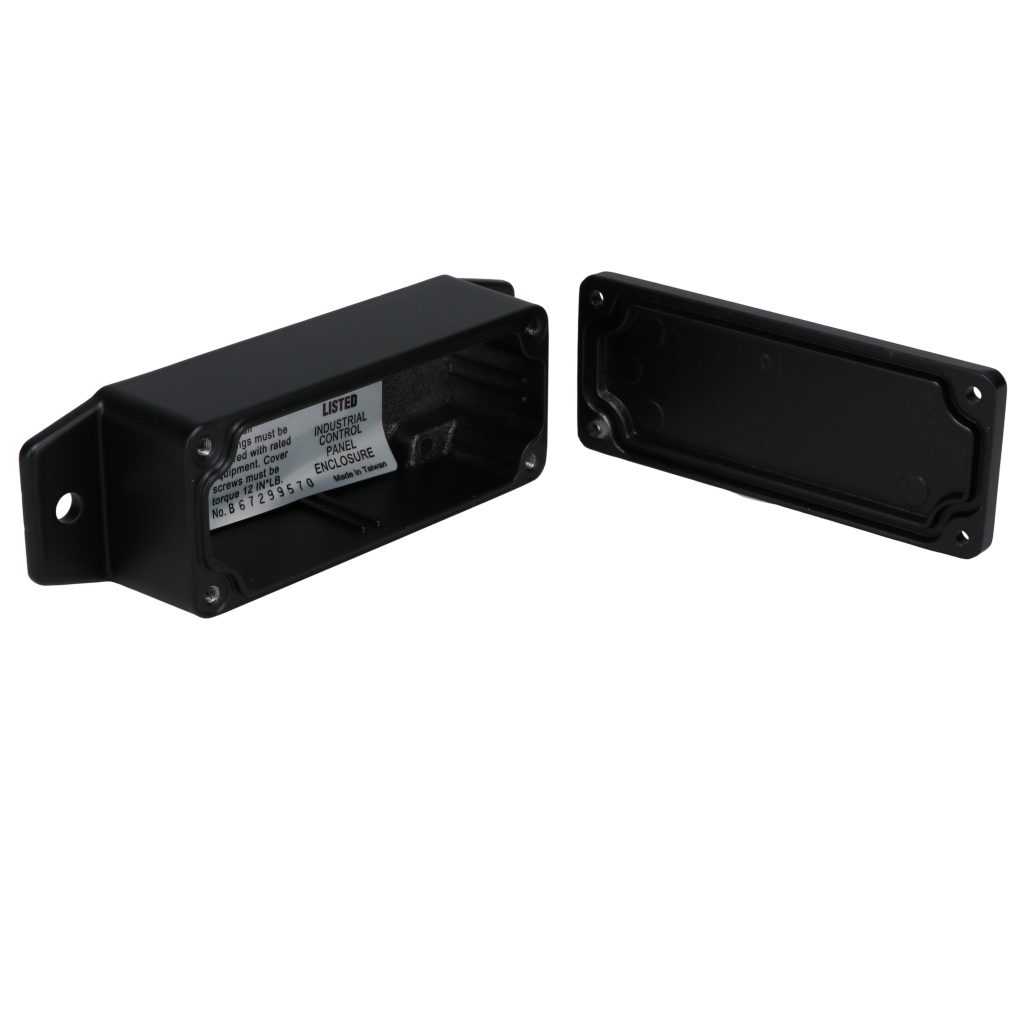

Aluminum Enclosure with Mounting Flanges Black AN-2850-AB
5 Day Modifications

Product Details

Model # AN-2850-AB AN-A Series Enclosure + Mounting Flanges
  • IP65|IP67|IP68
  • Direct replacement to AN-28xx series
  • Molded external mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Pre molded continuous silicon gasket with outstanding performance
  • Rugged #ADC-12 alloy die cast aluminum box
  • Available NEMA 6P (recommended powder coated black for extra corrosion protection)
  • IP 67 tested by TUV
  • Test results exceeded the requirements in respect to IEC60529 IP68 conditions (UL Type 6P tested under 6’ of water for 24 hours)
  • Type 4X,6,6P,12,13 as listed under UL file #E194432
  • Cover attaches with stainless screws (torque at 12 in-lb)
  • Easily machined and modified to your particular requirements
  • Offers EMC protection
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 3.54" x 1.42" x 1.18"
Internal Size L x W x D: 3.17" x 1.04" x 0.97"
Weight: 0.27 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: IP65, IP67, IP68
Mounting Style: Molded Mounting Flanges
Cover Style: Opaque, Screw Down Cover
Gasket Type: Silicone

Drawing

AN-2850-AB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
AN-2811-AB 1.97" x 1.77" x 1.18" 1.971.771.18 1.78" x 1.58" x 0.98" Welded Mounting Flanges
AN-2811-A 1.97" x 1.77" x 1.18" 1.971.771.18 1.78" x 1.58" x 0.98" Welded Mounting Flanges
AN-2823-AB 10.24" x 6.30" x 3.56" 10.246.303.56 9.84" x 5.93" x 3.39" Welded Mounting Flanges
AN-2823-A 10.24" x 6.30" x 3.56" 10.246.303.56 9.84" x 5.93" x 3.39" Welded Mounting Flanges
AN-2818-AB 2.19" x 1.61" x 1.22" 2.191.611.22 1.91" x 1.34" x 1.10" Welded Mounting Flanges
AN-2818-A 2.19" x 1.61" x 1.22" 2.191.611.22 1.91" x 1.34" x 1.10" Welded Mounting Flanges
AN-2851-AB 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Molded Mounting Flanges
AN-2801-A 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Welded Mounting Flanges
AN-2801-AB 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Welded Mounting Flanges
AN-2851-A 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Molded Mounting Flanges
AN-2819-AB 3.13" x 2.93" x 2.05" 3.132.932.05 2.85" x 2.65" x 1.91" Welded Mounting Flanges
AN-2819-A 3.13" x 2.93" x 2.05" 3.132.932.05 2.85" x 2.65" x 1.91" Welded Mounting Flanges
AN-2800-AB 3.54" x 1.42" x 1.18" 3.541.421.18 3.17" x 1.04" x 0.97" Welded Mounting Flanges
AN-2850-AB 3.54" x 1.42" x 1.18" 3.541.421.18 3.17" x 1.04" x 0.97" Molded Mounting Flanges
AN-2850-A 3.54" x 1.42" x 1.18" 3.541.421.18 3.17" x 1.04" x 0.97" Molded Mounting Flanges
AN-2800-A 3.54" x 1.42" x 1.18" 3.541.421.18 3.17" x 1.04" x 0.97" Welded Mounting Flanges
AN-2812-AB 3.85" x 2.52" x 1.35" 3.852.521.35 3.61" x 2.28" x 1.12" Welded Mounting Flanges
AN-2812-A 3.85" x 2.52" x 1.35" 3.852.521.35 3.61" x 2.28" x 1.12" Welded Mounting Flanges
AN-2820-AB 4.04" x 2.07" x 1.00" 4.042.071.00 3.79" x 1.80" x 0.87" Welded Mounting Flanges
AN-2820-A 4.04" x 2.07" x 1.00" 4.042.071.00 3.79" x 1.80" x 0.87" Welded Mounting Flanges
AN-2804-AB 4.53" x 3.54" x 2.17" 4.533.542.17 4.01" x 3.03" x 1.96" Welded Mounting Flanges
AN-2804-A 4.53" x 3.54" x 2.17" 4.533.542.17 4.01" x 3.03" x 1.96" Welded Mounting Flanges
AN-2852-AB 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Molded Mounting Flanges
AN-2852-A 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Molded Mounting Flanges
AN-2802-A 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Welded Mounting Flanges
AN-2802-AB 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Welded Mounting Flanges
AN-2853-A 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.96" Molded Mounting Flanges
AN-2853-AB 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.96" Molded Mounting Flanges
AN-2803-AB 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.95" Welded Mounting Flanges
AN-2803-A 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.95" Welded Mounting Flanges
AN-2854-A 4.60" x 3.61" x 2.17" 4.603.612.17 4.01" x 3.03" x 1.96" Molded Mounting Flanges
AN-2854-AB 4.60" x 3.61" x 2.17" 4.603.612.17 4.01" x 3.03" x 1.96" Molded Mounting Flanges
AN-2809-AB 4.75" x 4.75" x 3.99" 4.754.753.99 4.38" x 4.38" x 3.82" Welded Mounting Flanges
AN-2809-A 4.75" x 4.75" x 3.99" 4.754.753.99 4.38" x 4.38" x 3.82" Welded Mounting Flanges
AN-2813-AB 4.90" x 3.14" x 1.59" 4.903.141.59 4.60" x 2.83" x 1.36" Welded Mounting Flanges
AN-2813-A 4.90" x 3.14" x 1.59" 4.903.141.59 4.60" x 2.83" x 1.36" Welded Mounting Flanges
AN-2814-AB 4.90" x 3.14" x 2.26" 4.903.142.26 4.60" x 2.83" x 2.03" Welded Mounting Flanges
AN-2814-A 4.90" x 3.14" x 2.26" 4.903.142.26 4.60" x 2.83" x 2.03" Welded Mounting Flanges
AN-2863-A 4.92" x 3.15" x 1.57" 4.923.151.57 4.69" x 2.91" x 1.34" Molded Mounting Flanges
AN-2863-AB 4.92" x 3.15" x 1.57" 4.923.151.57 4.69" x 2.91" x 1.34" Molded Mounting Flanges
AN-2864-A 4.92" x 3.15" x 2.24" 4.923.152.24 4.69" x 2.91" x 2.01" Molded Mounting Flanges
AN-2864-AB 4.92" x 3.15" x 2.24" 4.923.152.24 4.69" x 2.91" x 2.01" Molded Mounting Flanges
AN-2805-AB 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" Welded Mounting Flanges
AN-2855-AB 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" Molded Mounting Flanges
AN-2855-A 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" Molded Mounting Flanges
AN-2805-A 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" Welded Mounting Flanges
AN-2815-AB 5.91" x 2.52" x 1.45" 5.912.521.45 5.63" x 2.24" x 1.13" Welded Mounting Flanges
AN-2815-A 5.91" x 2.52" x 1.45" 5.912.521.45 5.63" x 2.24" x 1.13" Welded Mounting Flanges
AN-2810-AB 6.25" x 6.25" x 3.99" 6.256.253.99 5.88" x 5.88" x 3.82" Welded Mounting Flanges
AN-2810-A 6.25" x 6.25" x 3.99" 6.256.253.99 5.88" x 5.88" x 3.82" Welded Mounting Flanges
AN-2816-AB 6.29" x 3.93" x 2.37" 6.293.932.37 5.98" x 3.62" x 2.13" Welded Mounting Flanges
AN-2816-A 6.29" x 3.93" x 2.37" 6.293.932.37 5.98" x 3.62" x 2.13" Welded Mounting Flanges
AN-2817-AB 6.29" x 3.93" x 3.19" 6.293.933.19 5.98" x 3.62" x 2.95" Welded Mounting Flanges
AN-2817-A 6.29" x 3.93" x 3.19" 6.293.933.19 5.98" x 3.62" x 2.95" Welded Mounting Flanges
AN-2866-A 6.30" x 3.94" x 2.36" 6.303.942.36 6.06" x 3.70" x 2.13" Molded Mounting Flanges
AN-2866-AB 6.30" x 3.94" x 2.36" 6.303.942.36 6.06" x 3.70" x 2.13" Molded Mounting Flanges
AN-2867-AB 6.30" x 3.94" x 3.19" 6.303.943.19 6.06" x 3.70" x 2.95" Molded Mounting Flanges
AN-2867-A 6.30" x 3.94" x 3.19" 6.303.943.19 6.06" x 3.70" x 2.95" Molded Mounting Flanges
AN-2856-AB 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" Molded Mounting Flanges
AN-2806-AB 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" Welded Mounting Flanges
AN-2856-A 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" Molded Mounting Flanges
AN-2806-A 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" Welded Mounting Flanges
AN-2821-AB 6.89" x 3.15" x 2.36" 6.893.152.36 6.61" x 2.86" x 2.22" Welded Mounting Flanges
AN-2821-A 6.89" x 3.15" x 2.36" 6.893.152.36 6.61" x 2.86" x 2.22" Welded Mounting Flanges
AN-2872-A 7.87" x 4.72" x 2.95" 7.874.722.95 7.64" x 4.49" x 2.72" Molded Mounting Flanges
AN-2872-AB 7.87" x 4.72" x 2.95" 7.874.722.95 7.64" x 4.49" x 2.72" Molded Mounting Flanges
AN-2822-AB 7.87" x 4.72" x 2.95" 7.874.722.95 7.56" x 4.43" x 2.81" Welded Mounting Flanges
AN-2822-A 7.87" x 4.72" x 2.95" 7.874.722.95 7.56" x 4.43" x 2.81" Welded Mounting Flanges
AN-2857-AB 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Molded Mounting Flanges
AN-2857-A 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Molded Mounting Flanges
AN-2807-AB 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Welded Mounting Flanges
AN-2807-A 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Welded Mounting Flanges
AN-2858-AB 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Molded Mounting Flanges
AN-2858-A 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Molded Mounting Flanges
AN-2808-AB 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Welded Mounting Flanges
AN-2808-A 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Welded Mounting Flanges
