ATX-10512

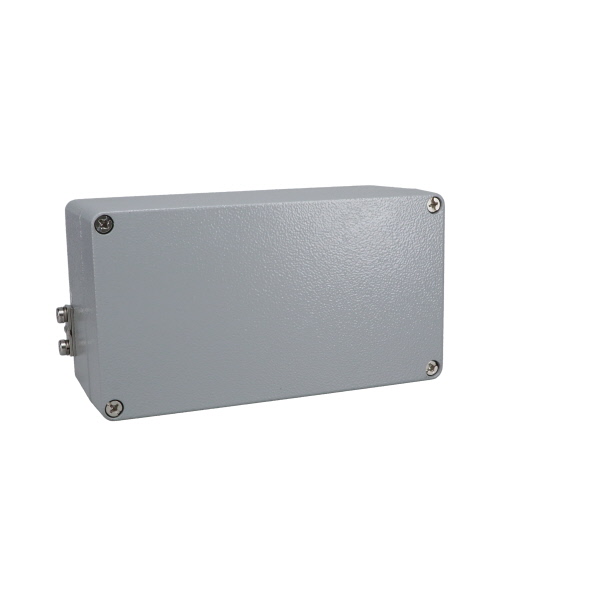

Explosion Proof Aluminum Enclosure ATX-10512
5 Day Modifications
  • Explosion Proof Aluminum Enclosure ATX-10512

Product Details

Model # ATX-10512 ATEX Series Explosion Proof Enclosure
  • ATEX Rating:
    • II 2 G Ex e IIC Gb
    • II 2 D Ex tb IIIC Db IP 66
    • DEMKO 13 ATEX 1327771U
    • IECEx UL 13.0042U
    • EX# 0539
  • Intended for use in areas in which explosive atmospheres caused by gases, vapors, mists or air/dust mixtures are infrequent.
  • Service Temperature Range: – 50 °C to +135 °C
  • Made of Extra Corrosion resistant Aluminum AlSi 12
  • Heavy Duty Construction
  • Powder Coated Light Gray(RAL-7001)
  • Continuous Gasket made of Silicone rubber
  • External Ground Bracket for dedicated Ground connection
  • UL Listed Type 6P File #E358256
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 8.66" x 4.72" x 3.58"
Internal Size L x W x D: 2.51" x 7.60" x 2.30"
Weight: 3.30 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
Features: ATEX Rated
Gasket Type: Silicone
IP Rating: IP66
Features: ATEX Rated
Cover Style: Opaque, Screw Down Cover

Drawing

ATX-10512 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
ATX-10515 10.24" x 6.30" x 3.54" 10.246.303.54 3.54" x 8.38" x 3.30"
ATX-10519 14.17" x 6.30" x 3.54" 14.176.303.54 3.47" x 12.30" x 2.87"
ATX-10501 3.15" x 2.95" x 2.24" 3.152.952.24 2.77" x 1.85" x 1.87"
ATX-10503 3.94" x 3.94" x 3.19" 3.943.943.19 2.71" x 3.39" x 2.62"
ATX-10505 4.80" x 4.72" x 3.58" 4.804.723.58 3.31" x 4.09" x 3.21"
ATX-10506 4.92" x 3.15" x 2.24" 4.923.152.24 2.68" x 3.78" x 1.75"
ATX-10507 5.91" x 2.52" x 1.34" 5.912.521.34 2.80" x 4.17" x 1.09"
ATX-10509 6.30" x 6.30" x 3.58" 6.306.303.58 4.65" x 6.14" x 2.86"
ATX-10510 6.89" x 3.15" x 2.24" 6.893.152.24 2.68" x 6.02" x 1.75"
ATX-10512 8.66" x 4.72" x 3.58" 8.664.723.58 2.51" x 7.60" x 2.30"
