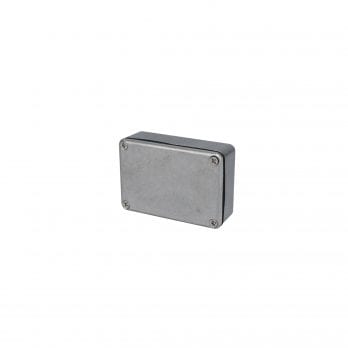

Diecast Aluminum Enclosure CN-5701

5 Day Modifications

Model # CN-5701 CN Series Die Cast Aluminum Enclosure

IP65|IP66
Designed to meet NEMA 1, 2, 4, 4x, 12, 13 and IP66 ratings.
Made from durable ADC-12 aluminum alloy.
Self-adhesive Neoprene gasket easily attaches to cover.
Cover attaches with 4 stainless steel, M3.5 thread-forming screws.
Most models have internal card guides for mounting PC Boards or partitioning.
Easily machined and modified to your particular needs.
Finish: Natural (other finishes available upon request)

Check Stock / Pricing Request Modifications Compare Sizes and Models

External Size L x W x D: 3.15" x 2.16" x 1.00"

Internal Size L x W x D: 2.87" x 1.88" x 0.88"

Weight: 0.18 lbs

Color: Natural

RoHS Certified: Always Compliant

Gasket Type: Neoprene

Card Guides: Yes

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

IP Rating: IP65, IP66

Cover Style: Opaque, Screw Down Cover

Drawing

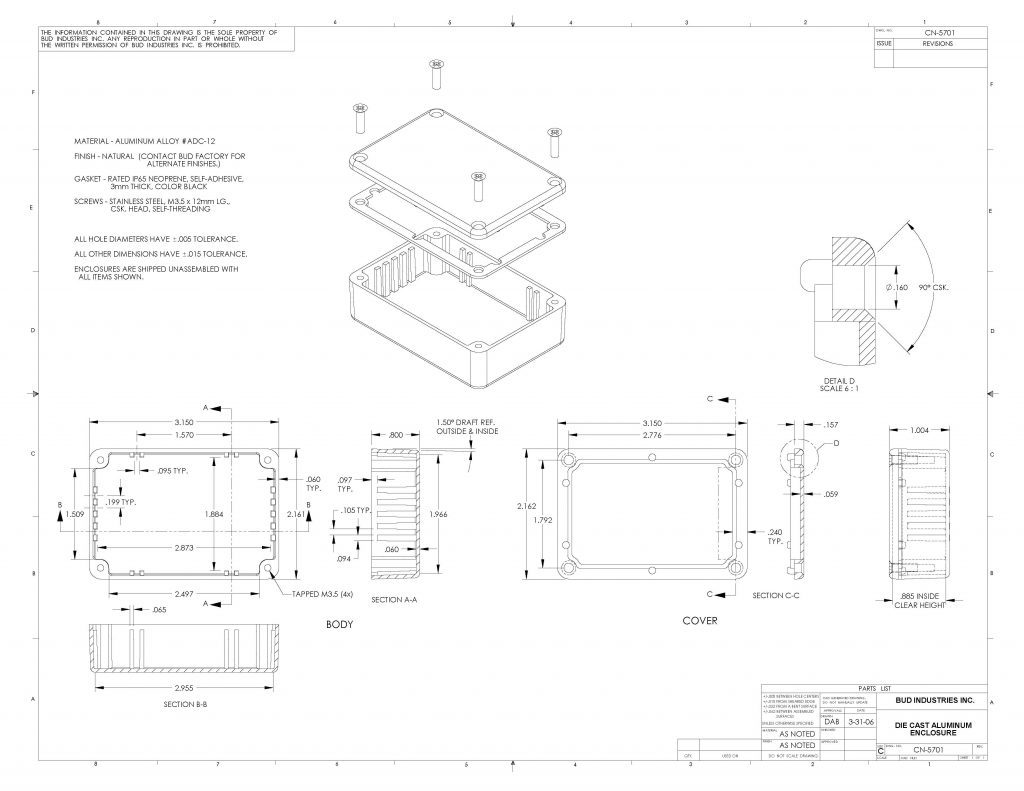

CN-5701 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
CN-5714	10.81" x 6.89" x 2.64" 10.816.892.64	10.53" x 6.61" x 2.51"
CN-5700	2.36" x 2.16" x 1.22" 2.362.161.22	2.07" x 1.87" x 1.11"
CN-5701	3.15" x 2.16" x 1.00" 3.152.161.00	2.87" x 1.88" x 0.88"
CN-5702	3.52" x 1.38" x 1.22" 3.521.381.22	3.31" x 1.17" x 1.11"
CN-5703	4.51" x 2.50" x 1.22" 4.512.501.22	4.30" x 2.30" x 1.11"
CN-5704	4.51" x 2.50" x 2.22" 4.512.502.22	4.25" x 2.25" x 2.11"
CN-5705	4.54" x 3.57" x 2.22" 4.543.572.22	4.29" x 3.30" x 2.08"
CN-5706	4.73" x 3.95" x 1.44" 4.733.951.44	4.51" x 3.73" x 1.30"
CN-5707	5.47" x 4.01" x 3.05" 5.474.013.05	5.17" x 3.70" x 2.91"
CN-5708	6.51" x 5.01" x 3.05" 6.515.013.05	6.08" x 4.58" x 2.91"
CN-5709	6.78" x 4.77" x 2.22" 6.784.772.22	6.52" x 4.51" x 2.09"
CN-5710	6.78" x 4.77" x 4.21" 6.784.774.21	6.41" x 4.41" x 4.08"
CN-5711	8.75" x 5.74" x 2.25" 8.755.742.25	8.49" x 5.48" x 2.12"
CN-5712	8.75" x 5.74" x 4.22" 8.755.744.22	8.39" x 5.38" x 4.08"
CN-5713	9.85" x 9.85" x 4.01" 9.859.854.01	9.34" x 9.34" x 3.86"
