DPH-28725-C

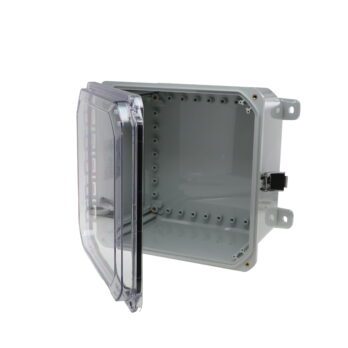

DPH-28725-C Heavy-Duty NEMA 6P IP68 Plastic Enclosure, Clear Hinged Cover
2 Videos

Product Details

Model # DPH-28725-C DPH Series - Heavy-Duty NEMA 6P/IP68 Rated Hinged Cover PC Enclosure
  • Rated NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 12 & 13 rated (NEMA 6/6P rated only when using optional screw-close configuration)
  • Rated IP65, (IP67/IP68 rated only when using optional screw-close configuration)
  • Impact-resistant light gray polycarbonate UL94-5VA and UL94-V0
  • Service temperature -35c to 110 C
  • Continuous gasket for a watertight seal
  • Designed for outdoor use: weatherproof, waterproof and corrosion-resistant
  • Enclosure comes with standard plastic mounting brackets included (DPX-100-KIT)
  • Hinged cover with stainless steel hardware
  • Stainless steel latch with area for padlock
  • Modular mounting bosses in base for panel and DIN rail mounting
  • 2 floating configurations for internal panel with included mounting kit accessory (DPX-444-KIT)
  • 2 panels to use with additional mounting bosses at top of base and inside the cover
  • Optional multi-directional mounting flanges for horizontal or vertical orientation
  • RoHs and REACH Compliant
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 11.04" x 11.04" x 7.52"
Internal Size L x W x D: 10.00" x 10.00" x 6.89"
Weight: 3.72 lbs
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: IP65, IP67, IP68
Mounting Style: Mounting Brackets
Cover Style: Clear, Hinged Cover
Latch Style: Stainless Steel
Gasket Type: Continuous Molded Silicone
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -35°C
Service Temperature Max: 110°C
Hinge Location: Long Side

Drawing

DPH-28725-C Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
DPH-28725 11.04" x 11.04" x 7.52" 11.0411.047.52 10.00" x 10.00" x 6.89" Opaque, Hinged Cover
DPH-28725-C 11.04" x 11.04" x 7.52" 11.0411.047.52 10.00" x 10.00" x 6.89" Clear, Hinged Cover
DPH-28723-C 11.04" x 9.04" x 4.22" 11.049.044.22 10.06" x 8.06" x 3.39" Clear, Hinged Cover
DPH-28723 11.04" x 9.04" x 4.22" 11.049.044.22 10.06" x 8.06" x 3.39" Opaque, Hinged Cover
DPH-28710-C 11.04" x 9.04" x 5.22" 11.049.045.22 10.04" x 8.04" x 4.89" Clear, Hinged Cover
DPH-28710 11.04" x 9.04" x 5.22" 11.049.045.22 10.04" x 8.04" x 4.89" Opaque, Hinged Cover
DPH-28711-C 11.04" x 9.04" x 7.72" 11.049.047.72 10.04" x 8.04" x 6.86" Clear, Hinged Cover
DPH-28711 11.04" x 9.04" x 7.72" 11.049.047.72 10.04" x 8.04" x 6.86" Opaque, Hinged Cover
DPH-28714-C 13.24" x 11.20" x 7.70" 13.2411.27.7 12.24" x 10.20" x 6.84" Clear, Hinged Cover
DPH-28714 13.24" x 11.20" x 7.70" 13.2411.27.7 12.24" x 10.20" x 6.84" Opaque, Hinged Cover
DPH-28727-C 13.24" x 11.24" x 5.70" 13.2411.245.7 12.18" x 10.18" x 4.83" Clear, Hinged Cover
DPH-28727 13.24" x 11.24" x 5.70" 13.2411.245.7 12.18" x 10.18" x 4.83" Opaque, Hinged Cover
DPH-28728-C 13.24" x 13.24" x 7.72" 13.2413.247.72 12.14" x 12.14" x 6.83" Clear, Hinged Cover
DPH-28728 13.24" x 13.24" x 7.72" 13.2413.247.72 12.14" x 12.14" x 6.83" Opaque, Hinged Cover
DPH-28713 15.24" x 13.20" x 7.72" 15.2413.27.72 14.24" x 12.20" x 6.86" Opaque, Hinged Cover
DPH-28713-C 15.24" x 13.20" x 7.72" 15.2413.27.72 14.24" x 12.20" x 6.86" Clear, Hinged Cover
DPH-28729-C 15.24" x 15.24" x 7.72" 15.2415.247.72 14.14" x 14.14" x 6.83" Clear, Hinged Cover
DPH-28729 15.24" x 15.24" x 7.72" 15.2415.247.72 14.14" x 14.14" x 6.83" Opaque, Hinged Cover
DPH-28712-C 17.24" x 15.20" x 8.75" 17.2415.28.75 16.24" x 14.20" x 7.89" Clear, Hinged Cover
DPH-28712 17.24" x 15.20" x 8.75" 17.2415.28.75 16.24" x 14.20" x 7.89" Opaque, Hinged Cover
DPH-28721-C 5.04" x 5.04" x 4.83" 5.045.044.83 4.04" x 4.04" x 4.00" Clear, Hinged Cover
DPH-28721 5.04" x 5.04" x 4.83" 5.045.044.83 4.04" x 4.04" x 4.00" Opaque, Hinged Cover
DPH-28706-C 7.04" x 5.04" x 4.83" 7.045.044.83 6.04" x 4.04" x 3.97" Clear, Hinged Cover
DPH-28706 7.04" x 5.04" x 4.83" 7.045.044.83 6.04" x 4.04" x 3.97" Opaque, Hinged Cover
DPH-28707-C 7.04" x 7.04" x 5.72" 7.047.045.72 6.04" x 6.04" x 4.86" Clear, Hinged Cover
DPH-28707 7.04" x 7.04" x 5.72" 7.047.045.72 6.04" x 6.04" x 4.86" Opaque, Hinged Cover
DPH-28708-C 9.04" x 7.04" x 5.72" 9.047.045.72 8.04" x 6.04" x 4.86" Clear, Hinged Cover
DPH-28708 9.04" x 7.04" x 5.72" 9.047.045.72 8.04" x 6.04" x 4.86" Opaque, Hinged Cover
DPH-28709-C 9.04" x 9.04" x 5.72" 9.049.045.72 8.04" x 8.04" x 4.86" Clear, Hinged Cover
DPH-28709 9.04" x 9.04" x 5.72" 9.049.045.72 8.04" x 8.04" x 4.86" Opaque, Hinged Cover
