NBB-22241

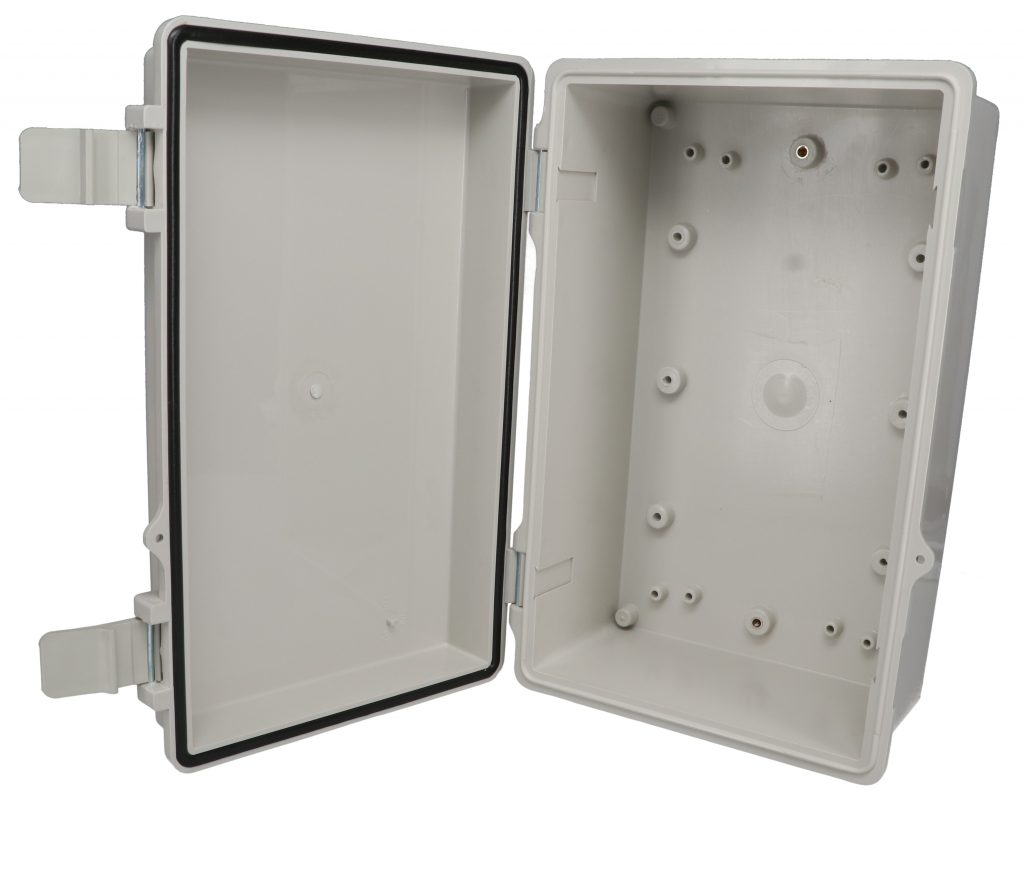

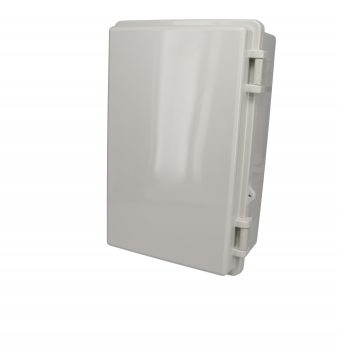

NEMA Box ABS Plastic NBB-22241
5 Day Modifications
3 Videos

Product Details

Model # NBB-22241 NBB Series NEMA Box
  • For indoor use
  • Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
  • ABS plastic enclosures are molded out of light gray material with UL94-HB flammability rating. (Not UL Listed)
  • Opaque door
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 10.73" x 6.79" x 4.33"
Internal Size L x W x D: 9.84" x 5.90" x 4.07"
Weight: 1.7 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
Gasket Type: Polyurethane
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Latch Style: 2 Plastic Latches
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: IP66

Drawing

NBB-22241 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Indoor / Outdoor Type of Plastic Door Type of Plastic Cover Style
NBB-15260 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate Opaque, Hinged Cover
NBB-15240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend Opaque, Hinged Cover
NBB-10260 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-10240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-22240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-10241 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-22241 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-10261 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-22243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-10243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-10263 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-15243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend Opaque, Hinged Cover
NBB-22245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-10245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-10265 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-15245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend Opaque, Hinged Cover
NBB-10271 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-10251 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-22251 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-22247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-10247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-10267 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-15247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend Opaque, Hinged Cover
NBB-10253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend Opaque, Hinged Cover
NBB-10273 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate Clear, Hinged Cover
NBB-22253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Indoor (Not UV Stabilized) ABS ABS Opaque, Hinged Cover
NBB-15253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend Opaque, Hinged Cover
