Name: NEMA Box with Aluminum Swing-Out Panel NBE-10563
Brand: Bud Industries
Availability: InStock

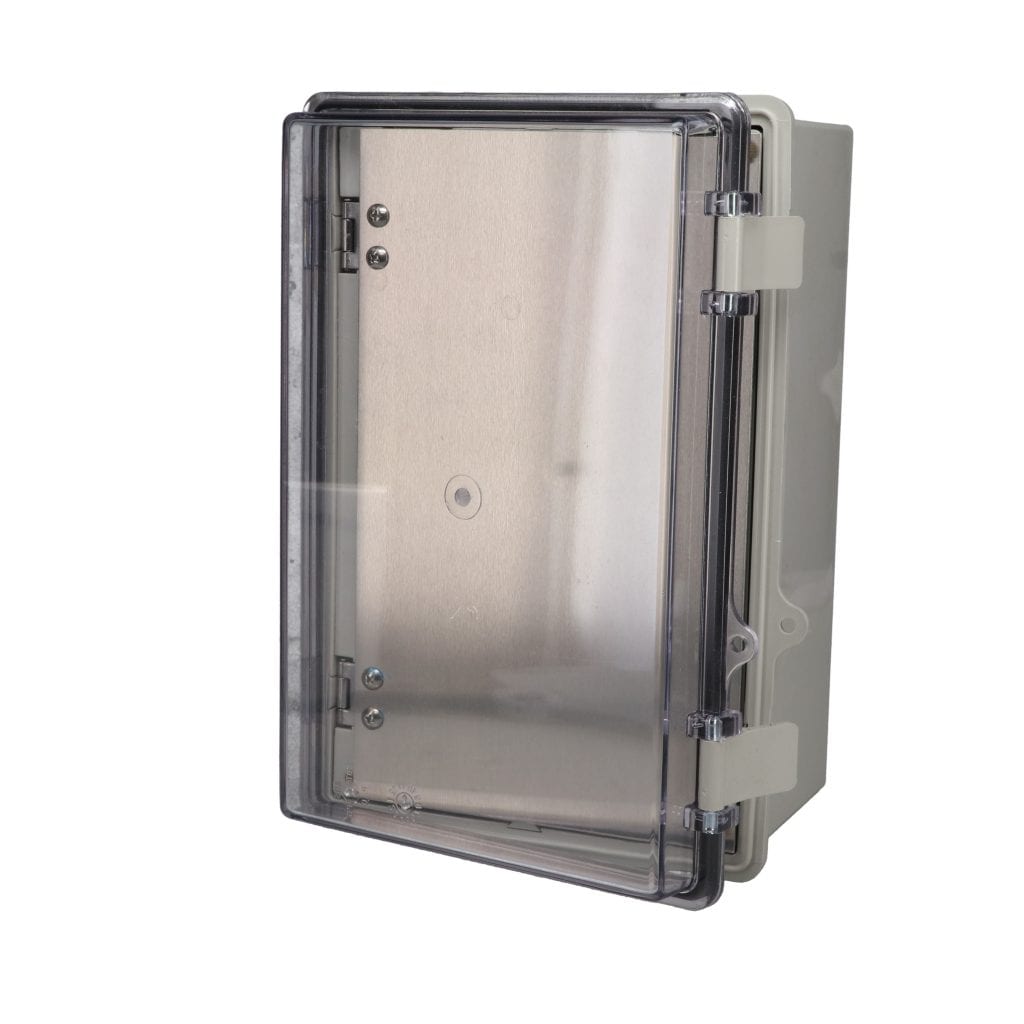

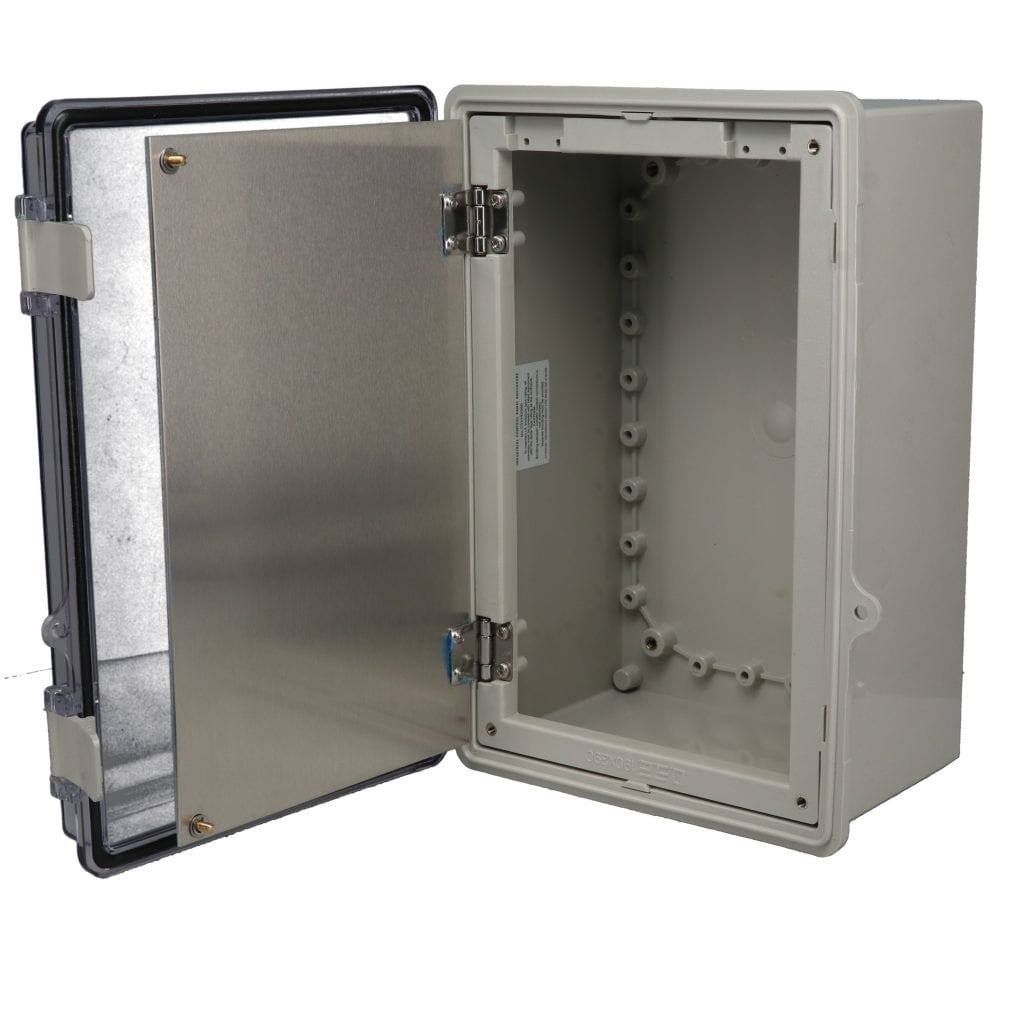

NEMA Box with Aluminum Swing-Out Panel NBE-10563

IP65|IP66
Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
UL Listed to UL508-4x requirements
ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
Clear doors are molded out of polycarbonate material with UL94-V0 flammability rating

External Size L x W x D: 11.28" x 7.48" x 5.52"

Internal Size L x W x D: 10.46" x 6.65" x 5.25"

Weight: 3.5 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Indoor / Outdoor: Indoor (Not UV Stabilized)

Flammability Rating: UL94-5VA

Door Flammability Rating: UL94-V0

Type of Plastic: ABS

Door Type of Plastic: Clear Polycarbonate

UL Rating: UL508

Service Temperature Min: -40°C

Service Temperature Max: 70°C

NEMA Rating: NEMA 1, NEMA 4, NEMA 4X

IP Rating: IP65, IP66

Cover Style: Clear, Hinged Cover

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Cover Style
NBE-10543	11.28" x 7.48" x 5.52" 11.287.485.52	10.46" x 6.65" x 5.25"	Opaque, Hinged Cover
NBE-10563	11.28" x 7.48" x 5.52" 11.287.485.52	10.46" x 6.65" x 5.25"	Clear, Hinged Cover
NBE-10547	15.68" x 11.73" x 6.30" 15.6811.736.30	14.88" x 10.89" x 6.03"	Opaque, Hinged Cover
NBE-10567	15.68" x 11.73" x 6.30" 15.6811.736.30	14.88" x 10.89" x 6.03"	Clear, Hinged Cover
NBE-10553	19.17" x 14.64" x 7.85" 19.1714.647.85	18.33" x 13.75" x 7.60"	Opaque, Hinged Cover
NBE-10573	19.17" x 14.64" x 7.85" 19.1714.647.85	18.33" x 13.75" x 7.60"	Clear, Hinged Cover
