NBF-32122

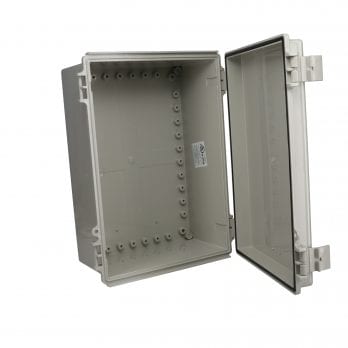

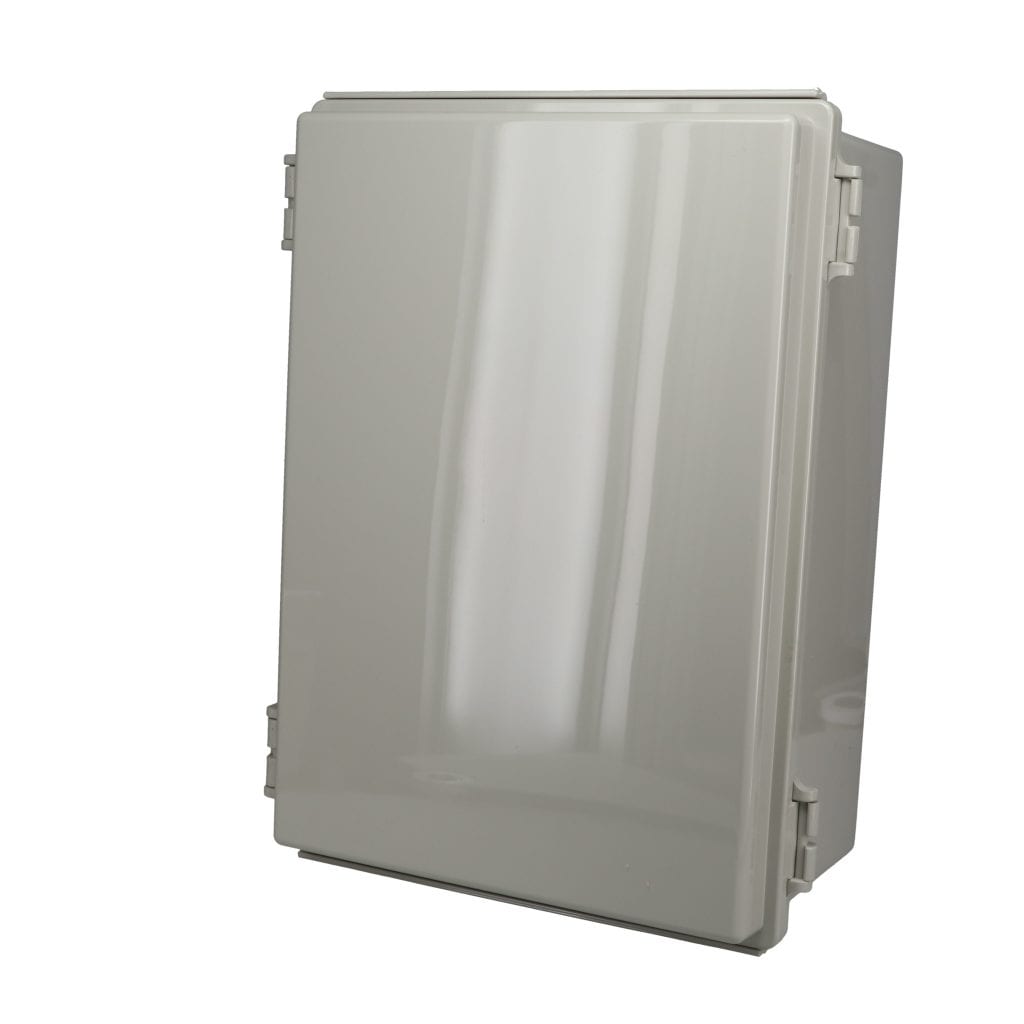

NEMA Enclosure ABS Poly Blend NBF-32122
5 Day Modifications
2 Videos

Product Details

Model # NBF-32122 NBF Series NEMA Box
  • IP65|IP66
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has two plastic latches
  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 13.78" x 9.84" x 5.91"
Internal Size L x W x D: 12.82" x 8.88" x 5.32"
Weight: 3 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: ABS Poly Blend
Door Type of Plastic: ABS Poly Blend
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 85°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: IP65, IP66
Cover Style: Opaque, Hinged Cover

Drawing

NBF-32122 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Indoor / Outdoor Type of Plastic Door Type of Plastic
NBF-32408 10.63" x 3.92" x 2.76" 10.633.922.76 9.78" x 3.11" x 2.22" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32208 10.63" x 3.92" x 2.76" 10.633.922.76 9.78" x 3.11" x 2.22" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32108 10.63" x 3.92" x 2.76" 10.633.922.76 9.78" x 3.11" x 2.22" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32308 10.63" x 3.92" x 2.76" 10.633.922.76 9.78" x 3.11" x 2.22" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32008 10.63" x 3.92" x 2.76" 10.633.922.76 9.78" x 3.11" x 2.22" Indoor (Not UV Stabilized) ABS ABS
NBF-32016 11.99" x 7.99" x 5.22" 11.997.995.22 11.01" x 7.02" x 4.62" Indoor (Not UV Stabilized) ABS ABS
NBF-32116 11.99" x 7.99" x 5.22" 11.997.995.22 11.01" x 7.02" x 4.62" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32216 11.99" x 7.99" x 5.22" 11.997.995.22 11.01" x 7.02" x 4.62" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32316 11.99" x 7.99" x 5.22" 11.997.995.22 11.01" x 7.02" x 4.62" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32416 11.99" x 7.99" x 5.22" 11.997.995.22 11.01" x 7.02" x 4.62" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32418 11.99" x 7.99" x 6.40" 11.997.996.40 11.02" x 7.02" x 5.81" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32318 11.99" x 7.99" x 6.40" 11.997.996.40 11.02" x 7.02" x 5.81" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32018 11.99" x 7.99" x 6.40" 11.997.996.40 11.02" x 7.02" x 5.81" Indoor (Not UV Stabilized) ABS ABS
NBF-32118 11.99" x 7.99" x 6.40" 11.997.996.40 11.02" x 7.02" x 5.81" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32218 11.99" x 7.99" x 6.40" 11.997.996.40 11.02" x 7.02" x 5.81" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32320 11.99" x 7.99" x 8.01" 11.997.998.01 11.02" x 7.02" x 7.42" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32020 11.99" x 7.99" x 8.01" 11.997.998.01 11.02" x 7.02" x 7.42" Indoor (Not UV Stabilized) ABS ABS
NBF-32220 11.99" x 7.99" x 8.01" 11.997.998.01 11.02" x 7.02" x 7.42" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32120 11.99" x 7.99" x 8.01" 11.997.998.01 11.02" x 7.02" x 7.42" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32420 11.99" x 7.99" x 8.01" 11.997.998.01 11.02" x 7.02" x 7.42" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32422 13.78" x 9.84" x 5.91" 13.789.845.91 12.82" x 8.88" x 5.32" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32322 13.78" x 9.84" x 5.91" 13.789.845.91 12.82" x 8.88" x 5.32" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32222 13.78" x 9.84" x 5.91" 13.789.845.91 12.82" x 8.88" x 5.32" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32122 13.78" x 9.84" x 5.91" 13.789.845.91 12.82" x 8.88" x 5.32" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32022 13.78" x 9.84" x 5.91" 13.789.845.91 12.82" x 8.88" x 5.32" Indoor (Not UV Stabilized) ABS ABS
NBF-32324 13.78" x 9.84" x 7.09" 13.789.847.09 12.82" x 8.88" x 6.50" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32124 13.78" x 9.84" x 7.09" 13.789.847.09 12.82" x 8.88" x 6.50" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32024 13.78" x 9.84" x 7.09" 13.789.847.09 12.82" x 8.88" x 6.50" Indoor (Not UV Stabilized) ABS ABS
NBF-32224 13.78" x 9.84" x 7.09" 13.789.847.09 12.82" x 8.88" x 6.50" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32424 13.78" x 9.84" x 7.09" 13.789.847.09 12.82" x 8.88" x 6.50" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32426 15.75" x 11.81" x 6.30" 15.7511.816.30 14.73" x 10.79" x 5.69" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32326 15.75" x 11.81" x 6.30" 15.7511.816.30 14.73" x 10.79" x 5.69" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32226 15.75" x 11.81" x 6.30" 15.7511.816.30 14.73" x 10.79" x 5.69" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32126 15.75" x 11.81" x 6.30" 15.7511.816.30 14.73" x 10.79" x 5.69" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32026 15.75" x 11.81" x 6.30" 15.7511.816.30 14.73" x 10.79" x 5.69" Indoor (Not UV Stabilized) ABS ABS
NBF-32228 17.72" x 13.78" x 6.42" 17.7213.786.42 16.49" x 12.56" x 5.73" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32028 17.72" x 13.78" x 6.42" 17.7213.786.42 16.49" x 12.56" x 5.73" Indoor (Not UV Stabilized) ABS ABS
NBF-32128 17.72" x 13.78" x 6.42" 17.7213.786.42 16.49" x 12.56" x 5.73" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32428 17.72" x 13.78" x 6.42" 17.7213.786.42 16.49" x 12.56" x 5.73" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32328 17.72" x 13.78" x 6.42" 17.7213.786.42 16.49" x 12.56" x 5.73" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32330 17.72" x 13.78" x 7.99" 17.7213.787.99 16.51" x 12.58" x 7.30" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32430 17.72" x 13.78" x 7.99" 17.7213.787.99 16.51" x 12.58" x 5.30" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32230 17.72" x 13.78" x 7.99" 17.7213.787.99 16.49" x 12.56" x 7.30" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32030 17.72" x 13.78" x 7.99" 17.7213.787.99 16.49" x 12.56" x 7.30" Indoor (Not UV Stabilized) ABS ABS
NBF-32130 17.72" x 13.78" x 7.99" 17.7213.787.99 16.49" x 12.56" x 7.30" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32032 19.69" x 15.75" x 6.30" 19.6915.756.30 18.68" x 14.74" x 5.65" Indoor (Not UV Stabilized) ABS ABS
NBF-32132 19.69" x 15.75" x 6.30" 19.6915.756.30 18.68" x 14.74" x 5.65" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32232 19.69" x 15.75" x 6.30" 19.6915.756.30 18.68" x 14.74" x 5.65" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32432 19.69" x 15.75" x 6.30" 19.6915.756.30 18.68" x 14.74" x 5.65" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32332 19.69" x 15.75" x 6.30" 19.6915.756.30 18.68" x 14.74" x 5.65" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32434 19.69" x 15.75" x 7.87" 19.6915.757.87 18.63" x 14.69" x 7.22" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32334 19.69" x 15.75" x 7.87" 19.6915.757.87 18.63" x 14.69" x 7.22" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32034 19.69" x 15.75" x 7.87" 19.6915.757.87 18.63" x 14.69" x 7.22" Indoor (Not UV Stabilized) ABS ABS
NBF-32134 19.69" x 15.75" x 7.87" 19.6915.757.87 18.63" x 14.69" x 7.22" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32234 19.69" x 15.75" x 7.87" 19.6915.757.87 18.63" x 14.69" x 7.22" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32036 20.95" x 17.05" x 6.30" 20.9517.056.30 19.58" x 15.62" x 5.91" Indoor (Not UV Stabilized) ABS ABS
NBF-32136 20.95" x 17.05" x 6.30" 20.9517.056.30 19.58" x 15.62" x 5.91" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32236 20.95" x 17.05" x 6.30" 20.9517.056.30 19.58" x 15.62" x 5.91" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32436 20.95" x 17.05" x 6.30" 20.9517.056.30 19.58" x 15.62" x 5.91" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32336 20.95" x 17.05" x 6.30" 20.9517.056.30 19.58" x 15.62" x 5.91" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32438 20.95" x 17.05" x 7.87" 20.9517.057.87 19.58" x 15.62" x 7.17" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32338 20.95" x 17.05" x 7.87" 20.9517.057.87 19.58" x 15.62" x 7.17" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32238 20.95" x 17.05" x 7.87" 20.9517.057.87 19.58" x 15.62" x 7.17" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32138 20.95" x 17.05" x 7.87" 20.9517.057.87 19.58" x 15.62" x 7.17" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32038 20.95" x 17.05" x 7.87" 20.9517.057.87 19.58" x 15.62" x 7.17" Indoor (Not UV Stabilized) ABS ABS
NBF-32040 24.96" x 21.02" x 7.09" 24.9621.027.09 23.33" x 19.39" x 6.32" Indoor (Not UV Stabilized) ABS ABS
NBF-32140 24.96" x 21.02" x 7.09" 24.9621.027.09 23.33" x 19.39" x 6.32" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32240 24.96" x 21.02" x 7.09" 24.9621.027.09 23.33" x 19.39" x 6.32" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32440 24.96" x 21.02" x 7.09" 24.9621.027.09 23.33" x 19.39" x 6.32" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32340 24.96" x 21.02" x 7.09" 24.9621.027.09 23.33" x 19.39" x 6.32" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32442 24.96" x 21.02" x 9.84" 24.9621.029.84 23.33" x 19.39" x 9.08" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32342 24.96" x 21.02" x 9.84" 24.9621.029.84 23.33" x 19.39" x 9.08" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32142 24.96" x 21.02" x 9.84" 24.9621.029.84 23.33" x 19.39" x 9.08" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32242 24.96" x 21.02" x 9.84" 24.9621.029.84 23.33" x 19.39" x 9.08" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32042 24.96" x 21.02" x 9.84" 24.9621.029.84 23.33" x 19.39" x 9.08" Indoor (Not UV Stabilized) ABS ABS
NBF-32146 28.90" x 21.02" x 11.02" 28.9021.0211.02 27.22" x 19.34" x 10.28" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32246 28.90" x 21.02" x 11.02" 28.9021.0211.02 27.22" x 19.34" x 10.28" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32046 28.90" x 21.02" x 11.02" 28.9021.0211.02 27.26" x 19.38" x 9.09" Indoor (Not UV Stabilized) ABS ABS
NBF-32446 28.90" x 21.02" x 11.02" 28.9021.0211.02 27.26" x 19.38" x 9.09" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32346 28.90" x 21.02" x 11.02" 28.9021.0211.02 27.22" x 19.34" x 10.28" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32444 28.90" x 21.02" x 7.09" 28.9021.027.09 27.36" x 19.48" x 6.34" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32344 28.90" x 21.02" x 7.09" 28.9021.027.09 27.36" x 19.48" x 6.34" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32144 28.90" x 21.02" x 7.09" 28.9021.027.09 27.36" x 19.48" x 6.34" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32244 28.90" x 21.02" x 7.09" 28.9021.027.09 27.36" x 19.48" x 6.34" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32044 28.90" x 21.02" x 7.09" 28.9021.027.09 27.36" x 19.48" x 6.34" Indoor (Not UV Stabilized) ABS ABS
NBF-32202 5.12" x 3.92" x 2.78" 5.123.922.78 4.37" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32302 5.12" x 3.92" x 2.78" 5.123.922.78 4.37" x 3.11" x 2.27" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32102 5.12" x 3.92" x 2.78" 5.123.922.78 4.37" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32002 5.12" x 3.92" x 2.78" 5.123.922.78 4.37" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS ABS
NBF-32402 5.12" x 3.92" x 2.78" 5.123.922.78 4.37" x 3.11" x 2.27" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32404 5.90" x 3.92" x 2.78" 5.903.922.78 5.12" x 3.11" x 2.27" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32004 5.90" x 3.92" x 2.78" 5.903.922.78 5.12" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS ABS
NBF-32304 5.90" x 3.92" x 2.78" 5.903.922.78 5.12" x 3.11" x 2.27" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32104 5.90" x 3.92" x 2.78" 5.903.922.78 5.12" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32204 5.90" x 3.92" x 2.78" 5.903.922.78 5.12" x 3.11" x 2.27" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32110 5.91" x 5.91" x 3.54" 5.915.913.54 5.26" x 5.26" x 3.03" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32010 5.91" x 5.91" x 3.54" 5.915.913.54 5.26" x 5.26" x 3.03" Indoor (Not UV Stabilized) ABS ABS
NBF-32210 5.91" x 5.91" x 3.54" 5.915.913.54 5.26" x 5.26" x 3.03" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32310 5.91" x 5.91" x 3.54" 5.915.913.54 5.26" x 5.26" x 3.03" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32410 5.91" x 5.91" x 3.54" 5.915.913.54 5.26" x 5.26" x 3.03" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32414 7.72" x 7.72" x 5.71" 7.727.725.71 6.99" x 6.99" x 5.16" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32114 7.72" x 7.72" x 5.71" 7.727.725.71 6.99" x 6.99" x 5.16" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32214 7.72" x 7.72" x 5.71" 7.727.725.71 6.99" x 6.99" x 5.16" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32014 7.72" x 7.72" x 5.71" 7.727.725.71 6.99" x 6.99" x 5.16" Indoor (Not UV Stabilized) ABS ABS
NBF-32314 7.72" x 7.72" x 5.71" 7.727.725.71 6.99" x 6.99" x 5.16" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32306 7.87" x 3.92" x 2.76" 7.873.922.76 7.06" x 3.11" x 2.53" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32006 7.87" x 3.92" x 2.76" 7.873.922.76 7.06" x 3.11" x 2.53" Indoor (Not UV Stabilized) ABS ABS
NBF-32206 7.87" x 3.92" x 2.76" 7.873.922.76 7.06" x 3.11" x 2.53" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32106 7.87" x 3.92" x 2.76" 7.873.922.76 7.06" x 3.11" x 2.53" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBF-32406 7.87" x 3.92" x 2.76" 7.873.922.76 7.06" x 3.11" x 2.53" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32412 8.33" x 6.36" x 3.94" 8.336.363.94 7.50" x 5.55" x 3.35" Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBF-32312 8.33" x 6.36" x 3.94" 8.336.363.94 7.50" x 5.55" x 3.35" Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBF-32012 8.33" x 6.36" x 3.94" 8.336.363.94 7.50" x 5.55" x 3.35" Indoor (Not UV Stabilized) ABS ABS
NBF-32212 8.33" x 6.36" x 3.94" 8.336.363.94 7.50" x 5.55" x 3.35" Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBF-32112 8.33" x 6.36" x 3.94" 8.336.363.94 7.50" x 5.55" x 3.35" Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
