PN-1337-AMB

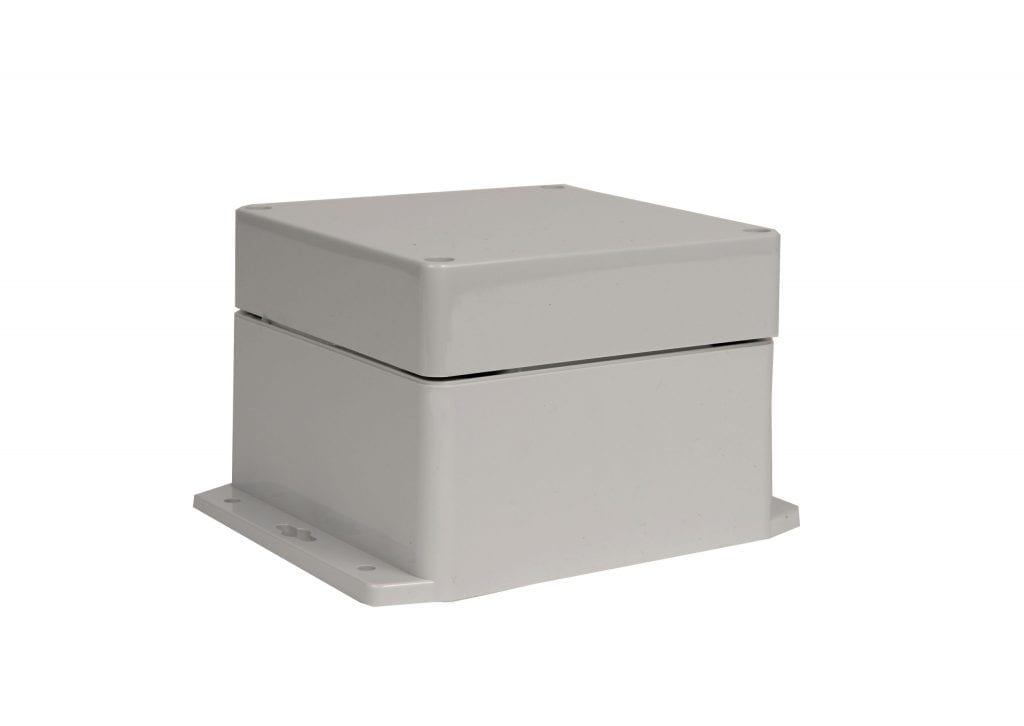

IP68 NEMA 6P Box with Mounting Brackets PN-1337-AMB

Product Details

Model # PN-1337-AMB PN-A Series IP68 Plastic NEMA 6P Box
  • UL508A & NEMA 1, 2, 3, 4, 4x, 6, 6P 12, and 13 enclosure specifications
  • Designed to IP65, IP67, IP68 (IEC 529)
  • UL Listed (E194432 Vol 1)
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
  • Threaded brass inserts.
  • Cover screws stainless steel, non-magnetic and fasten into threaded brass inserts.
  • Gasket Material: Molded Silicon (uninstalled)
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 4.72" x 4.72" x 3.54"
Internal Size L x W x D: 4.49" x 4.49" x 3.31"
Weight: 0.6 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: IP65, IP67, IP68
Features: Molded Silicon Gasket
Mounting Style: Mounting Flanges
Cover Style: Opaque, Screw Down Cover
Gasket Type: Continuous Molded Silicone
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: Gray Polycarbonate
Door Type of Plastic: Gray Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C

Drawing

PN-1337-AMB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Gasket Type Indoor / Outdoor
PN-1335-ACMB 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1335-AMB 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1335-AC 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1335-A 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1342-AC 11.81" x 9.06" x 3.41" 11.819.063.41 11.52" x 8.76" x 3.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1342-A 11.81" x 9.06" x 3.41" 11.819.063.41 11.52" x 8.76" x 3.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1343-AC 11.81" x 9.06" x 4.39" 11.819.064.39 11.52" x 8.76" x 4.11" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1343-A 11.81" x 9.06" x 4.39" 11.819.064.39 11.52" x 8.76" x 4.11" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1344-AC 14.17" x 7.87" x 5.91" 14.177.875.91 13.75" x 7.45" x 5.62" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1344-A 14.17" x 7.87" x 5.91" 14.177.875.91 13.75" x 7.45" x 5.62" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1330-AMB 2.05" x 1.97" x 1.38" 2.051.971.38 1.73" x 1.81" x 1.17" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1330-ACMB 2.05" x 1.97" x 1.38" 2.051.971.38 1.73" x 1.81" x 1.17" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1330-AC 2.05" x 1.97" x 1.38" 2.051.971.38 1.73" x 1.81" x 1.17" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1330-A 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1320-ACMB 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1320-AC 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1320-A 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1320-AMB 2.52" x 2.28" x 1.38" 2.522.281.38 2.27" x 2.03" x 1.14" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1331-A 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1331-AC 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1331-ACMB 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1331-AMB 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1321-AC 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1321-A 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1321-ACMB 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1321-AMB 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.21" x 1.36" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1322-ACMB 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1322-AMB 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1322-AC 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1322-A 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1323-A 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1323-AC 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1323-ACMB 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1323-AMB 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.17" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1323-AC 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1328-A 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1328-AMB 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1328-ACMB 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1328-AC 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1336-A 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1336-AC 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1336-AMB 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1336-ACMB 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1337-AC 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1337-AMB 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1337-A 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1337-ACMB 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1339-A 6.26" x 6.26" x 3.54" 6.266.263.54 6.02" x 6.02" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1339-AC 6.26" x 6.26" x 3.54" 6.266.263.54 6.02" x 6.02" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1332-A 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1332-AC 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1332-ACMB 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1332-AMB 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1333-AC 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1333-AMB 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1333-ACMB 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1333-A 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1338-A 6.30" x 6.30" x 2.36" 6.36.32.36 6.06" x 6.06" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1338-AC 6.30" x 6.30" x 2.36" 6.36.32.36 6.06" x 6.06" x 2.13" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1324-AMB 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1324-ACMB 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1324-A 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1324-AC 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1327-AMB 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1327-A 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1327-AC 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1327-ACMB 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1326-AC 7.68" x 3.15" x 2.17" 7.683.152.17 7.41" x 2.88" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1326-A 7.68" x 3.15" x 2.17" 7.683.152.17 7.41" x 2.88" x 1.93" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1334-AC 7.87" x 4.72" x 2.95" 7.874.722.95 7.57" x 4.42" x 2.70" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1334-A 7.87" x 4.72" x 2.95" 7.874.722.95 7.57" x 4.42" x 2.70" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1334-ACMB 7.87" x 4.72" x 2.95" 7.874.722.95 7.63" x 4.48" x 2.71" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1334-AMB 7.87" x 4.72" x 2.95" 7.874.722.95 7.63" x 4.48" x 2.71" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1325-AMB 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1325-ACMB 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1325-AC 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1325-A 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1329-A 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1329-AC 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1329-ACMB 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1329-AMB 8.74" x 5.75" x 2.95" 8.745.752.95 8.34" x 5.34" x 2.78" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1341-A 9.45" x 6.24" x 4.72" 9.456.244.72 9.12" x 5.97" x 4.49" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1341-AC 9.45" x 6.24" x 4.72" 9.456.244.72 9.12" x 5.97" x 4.49" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1340-A 9.45" x 6.30" x 3.54" 9.456.33.54 9.12" x 5.97" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
PN-1340-AC 9.45" x 6.30" x 3.54" 9.456.33.54 9.12" x 5.97" x 3.31" Continuous Molded Silicone Outdoor (UV Stabilized)
