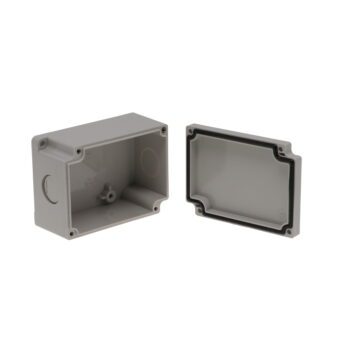

Name: PNB-30416-KO IP67 Plastic Box with Knockouts
Brand: Bud Industries
Availability: InStock

PNB-30416-KO IP67 Plastic Box with Knockouts

Made of gray ABS plastic
Two secure, easy-to-remove 21 mm (0.82-inch) knockouts are included
High impact resistance
IP67 TUV rating keeps out dust and water in extreme conditions including temporary submersion
RoHs compliant
Flammability rating 94-HB V-0
Suitable for indoor use with respect to exposure to ultraviolet light
Temperature rating -40 ~ +70 degrees C
Sealed with a continuous gasket
Unique, secure 2-point external wall mounting provisions increase usable internal space
Internal mounting bosses included
Four stainless-steel captive screws for cover mounting included

External Size L x W x D: 3.57" x 2.58" x 1.77"

Internal Size L x W x D: 3.33" x 2.34" x 1.53"

Weight: 0.19 lbs

Color: Light Gray

RoHS Certified: Always Compliant

IP Rating: IP67

Cover Style: Opaque, Screw Down Cover

Knockouts: Knockouts

Indoor / Outdoor: Indoor (Not UV Stabilized)

Flammability Rating: UL94-V0

Door Flammability Rating: UL94-HB

Type of Plastic: ABS

Door Type of Plastic: ABS

UL Rating: UL508

Service Temperature Min: -40°C

Service Temperature Max: 70°C

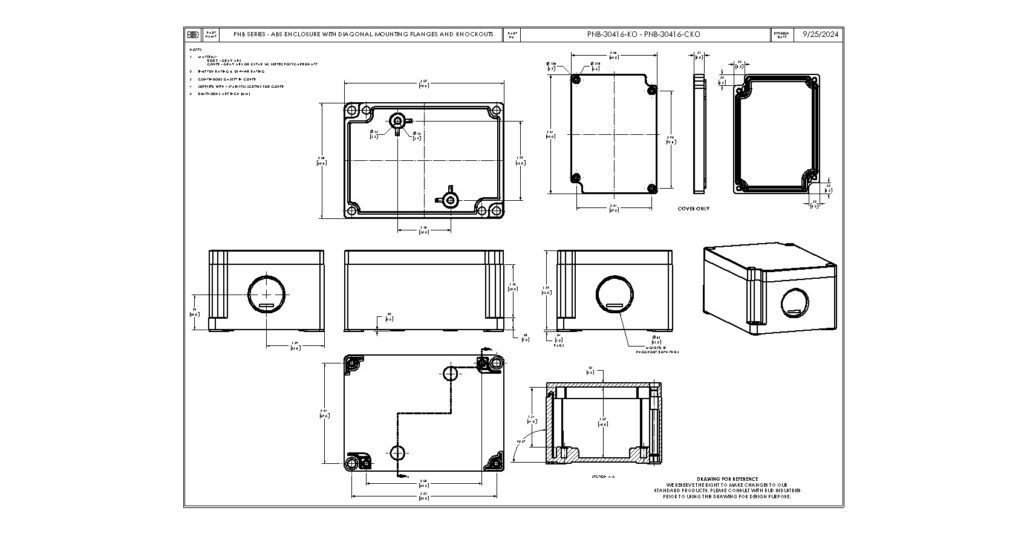

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Cover Style	Knockouts
PNB-30415-CKO	3.57" x 2.07" x 1.77" 3.572.071.77	3.33" x 1.83" x 1.53"	Clear, Screw Down Cover	Knockouts
PNB-30415-KO	3.57" x 2.07" x 1.77" 3.572.071.77	3.33" x 1.83" x 1.53"	Opaque, Screw Down Cover	Knockouts
PNB-30416-CKO	3.57" x 2.58" x 1.77" 3.572.581.77	3.33" x 2.34" x 1.53"	Clear, Screw Down Cover	Knockouts
PNB-30416-KO	3.57" x 2.58" x 1.77" 3.572.581.77	3.33" x 2.34" x 1.53"	Opaque, Screw Down Cover	Knockouts
PNB-30417-CKO	3.96" x 3.57" x 1.77" 3.963.571.77	3.72" x 3.33" x 1.53"	Clear, Screw Down Cover	Knockouts
PNB-30417-KO	3.96" x 3.57" x 1.77" 3.963.571.77	3.72" x 3.33" x 1.53"	Opaque, Screw Down Cover	Knockouts
