PNB-30417-CKO

PNB-30417-CKO IP67 Plastic Box with Knockouts

Product Details

Model # PNB-30417-CKO PNB Series IP67 Plastic Box with Knockouts
  • Body made of gray ABS plastic
  • Cover made of clear polycarbonate plastic
  • Four secure, easy-to-remove 21 mm (0.82-inch) knockouts are included
  • High impact resistance
  • IP67 TUV rating keeps out dust and water in extreme conditions including temporary submersion
  • RoHs compliant
  • Flammability rating body 94-HB V-0, cover HB
  • Suitable for indoor use with respect to exposure to ultraviolet light
  • Temperature rating body -40 ~ +70 degrees C, cover -40 ~ +110 degrees C
  • Sealed with a continuous gasket
  • Unique, secure 2-point external wall mounting provisions increase usable internal space
  • Internal mounting bosses included
  • Four stainless-steel captive screws for cover mounting included
 Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 3.96" x 3.57" x 1.77"
Internal Size L x W x D: 3.72" x 3.33" x 1.53"
Weight: 0.25 lbs
Color: Light Gray
RoHS Certified: Always Compliant
IP Rating: IP67
Cover Style: Clear, Screw Down Cover
Knockouts: Knockouts
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C

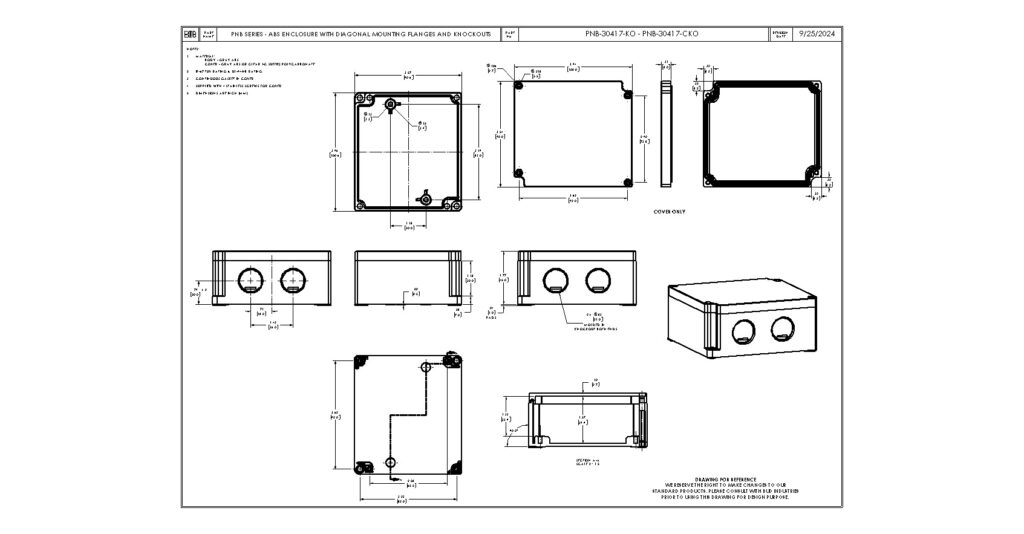

Drawing

PNB-30417-CKO Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style Knockouts
PNB-30415-CKO 3.57" x 2.07" x 1.77" 3.572.071.77 3.33" x 1.83" x 1.53" Clear, Screw Down Cover Knockouts
PNB-30415-KO 3.57" x 2.07" x 1.77" 3.572.071.77 3.33" x 1.83" x 1.53" Opaque, Screw Down Cover Knockouts
PNB-30416-CKO 3.57" x 2.58" x 1.77" 3.572.581.77 3.33" x 2.34" x 1.53" Clear, Screw Down Cover Knockouts
PNB-30416-KO 3.57" x 2.58" x 1.77" 3.572.581.77 3.33" x 2.34" x 1.53" Opaque, Screw Down Cover Knockouts
PNB-30417-CKO 3.96" x 3.57" x 1.77" 3.963.571.77 3.72" x 3.33" x 1.53" Clear, Screw Down Cover Knockouts
PNB-30417-KO 3.96" x 3.57" x 1.77" 3.963.571.77 3.72" x 3.33" x 1.53" Opaque, Screw Down Cover Knockouts
