PU-16540

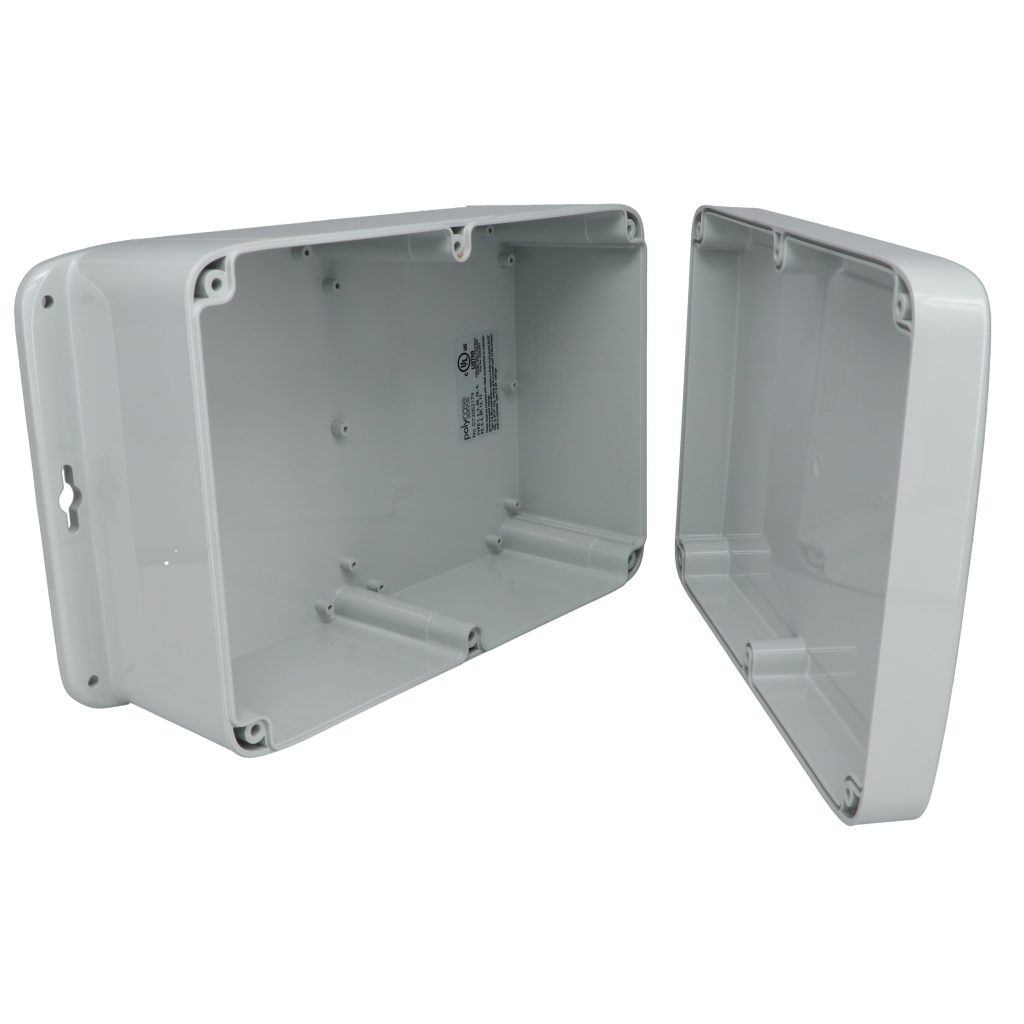

IP68/NEMA 6P Plastic Enclosure with Mounting Flanges PU-16540

Product Details

Model # PU-16540 PU Series IP68/NEMA 6P Plastic Enclosure
•    Modern streamlined design
•    Rated to NEMA 4X and 6P and meets IP66 and IP68 requirements
•    UL Listed to UL 508A, Type 1, 2, 4, 4X, 6, 6P, 12 and 13
•    Designed and tested for a wide variety of outdoor applications and adverse conditions
•    Molded from durable, UV stabilized polycarbonate plastic UL94-V0 rated
•    Continuous silicone rubber gasket is pre-installed to ensure watertight seal
•    Stainless steel screws and brass inserts for cover assembling
•    Mounting bosses in base
•   Includes molded flanges for enclosure mounting
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 10.00" x 7.00" x 4.06"
Internal Size L x W x D: 9.75" x 6.75" x 3.81"
Weight: 1.75 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: IP68
Mounting Style: Mounting Flanges
Cover Style: Opaque, Screw Down Cover
Gasket Type: Silicone

Drawing

PU-16540 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
PU-16540 10.00" x 7.00" x 4.06" 10.007.004.06 9.75" x 6.75" x 3.81" Opaque, Screw Down Cover
PU-16532 2.63" x 2.63" x 1.63" 2.632.631.63 2.38" x 2.38" x 1.38" Opaque, Screw Down Cover
PU-16532-C 2.63" x 2.63" x 1.63" 2.632.631.63 2.38" x 2.38" x 1.38" Clear, Screw Down Cover
PU-16533 4.50" x 2.63" x 2.05" 4.502.632.05 4.25" x 2.38" x 1.80" Opaque, Screw Down Cover
PU-16533-C 4.50" x 2.63" x 2.05" 4.502.632.05 4.25" x 2.38" x 1.80" Clear, Screw Down Cover
PU-16535 4.50" x 4.50" x 2.44" 4.504.502.44 4.25" x 4.25" x 2.19" Opaque, Screw Down Cover
PU-16535-C 4.50" x 4.50" x 2.44" 4.504.502.44 4.25" x 4.25" x 2.19" Clear, Screw Down Cover
PU-16534-C 4.53" x 3.56" x 2.25" 4.533.562.25 4.28" x 3.31" x 2.00" Clear, Screw Down Cover
PU-16534 4.53" x 3.56" x 2.25" 4.533.562.25 4.28" x 3.31" x 2.00" Opaque, Screw Down Cover
PU-16536-C 5.50" x 4.13" x 2.44" 5.504.132.44 5.25" x 3.88" x 2.19" Clear, Screw Down Cover
PU-16536 5.50" x 4.13" x 2.44" 5.504.132.44 4.25" x 5.25" x 2.19" Opaque, Screw Down Cover
PU-16537 6.13" x 4.63" x 2.44" 6.134.632.44 5.88" x 4.38" x 2.19" Opaque, Screw Down Cover
PU-16538 7.63" x 4.63" x 3.09" 7.634.633.09 7.38" x 4.38" x 2.19" Opaque, Screw Down Cover
PU-16539 8.75" x 5.25" x 3.30" 8.755.253.30 8.50" x 5.00" x 3.05" Opaque, Screw Down Cover
