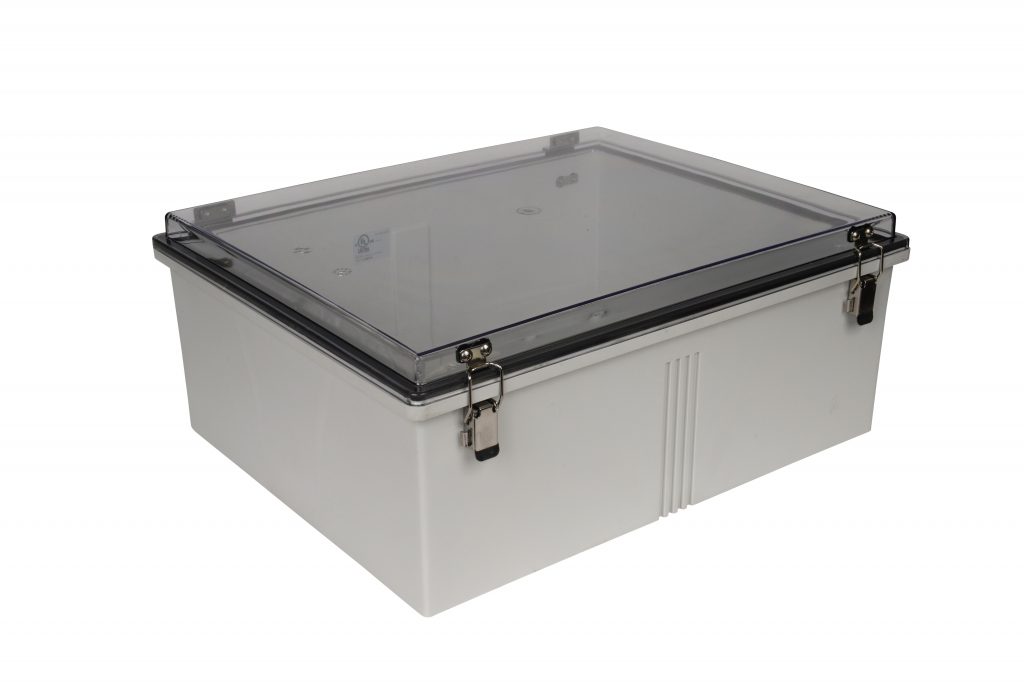

Name: Fiberglass Box with Self-Locking Latch and Clear Cover PTH-22438-C
Brand: Bud Industries
Availability: InStock

Fiberglass Box with Self-Locking Latch and Clear Cover PTH-22438-C

Model # PTH-22438-C PTH Series Fiberglass Box

Body made of gray polycarbonate plastic 10% glass fiber filled

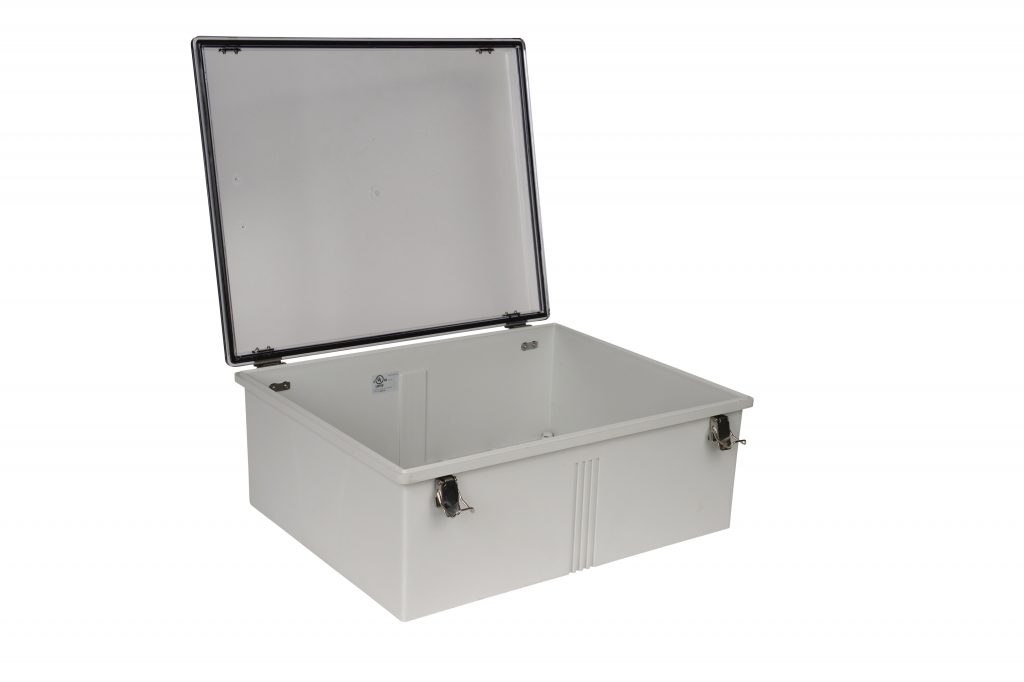

Hinged cover made of clear polycarbonate plastic
High impact resistance
Stainless steel latch
IP65, IP67, IP68 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
UL508 / UL tested for type 4X, listed #E194432
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 19.18" x 15.25" x 7.99"

Internal Size L x W x D: 18.94" x 15.01" x 7.48"

Weight: 8.734 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Features: 10% Fiberglass Reinforced Plastic

Indoor / Outdoor: Outdoor (UV Stabilized)

Flammability Rating: UL94-V0

Door Flammability Rating: UL94-V0

Type of Plastic: Polycarbonate

Door Type of Plastic: Clear Polycarbonate

UL Rating: UL508

Service Temperature Min: -40°C

Service Temperature Max: 95°C

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6

IP Rating: IP67

Features: 10% Fiberglas Reinforced Plastic

Cover Style: Clear, Hinged Cover

Hinge Location: Long Side

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Cover Style	Hinge Location
PTH-22490	6.11" x 4.93" x 3.74" 6.114.933.74	5.87" x 4.69" x 3.21"	Opaque, Hinged Cover	Long Side
PTH-22490-C	6.11" x 4.93" x 3.74" 6.114.933.74	5.87" x 4.69" x 3.21"	Clear, Hinged Cover	Long Side
PTH-22746-LC	6.90" x 14.38" x 5.04" 6.914.385.04	6.66" x 14.14" x 4.53"	Clear, Hinged Cover	Short Side
PTH-22746-L	6.90" x 14.38" x 5.04" 6.914.385.04	6.66" x 14.14" x 4.53"	Opaque, Hinged Cover	Short Side
PTH-22442	6.90" x 6.90" x 5.12" 6.96.95.12	6.66" x 6.66" x 4.53"	Opaque, Hinged Cover	Long Side
PTH-22442-C	6.90" x 6.90" x 5.12" 6.96.95.12	6.66" x 6.66" x 4.53"	Clear, Hinged Cover	Long Side
PTH-22496-C	7.29" x 5.33" x 2.95" 7.295.332.95	7.05" x 5.09" x 2.44"	Clear, Hinged Cover	Long Side
PTH-22496	7.29" x 5.33" x 2.95" 7.295.332.95	7.05" x 5.09" x 2.44"	Opaque, Hinged Cover	Long Side
PTH-22498-C	7.29" x 5.33" x 3.94" 7.295.333.94	7.05" x 5.09" x 3.43"	Clear, Hinged Cover	Long Side
PTH-22498	7.29" x 5.33" x 3.94" 7.295.333.94	7.05" x 5.09" x 3.43"	Opaque, Hinged Cover	Long Side
PTH-22502	7.29" x 5.33" x 6.30" 7.295.336.3	7.05" x 5.09" x 5.79"	Opaque, Hinged Cover	Long Side
PTH-22502-C	7.29" x 5.33" x 6.30" 7.295.336.3	7.05" x 5.09" x 5.79"	Clear, Hinged Cover	Long Side
PTH-22510	7.29" x 7.29" x 6.30" 7.297.296.3	7.05" x 7.05" x 5.79"	Opaque, Hinged Cover	Long Side
PTH-22510-C	7.29" x 7.29" x 6.30" 7.297.296.3	7.05" x 7.05" x 5.79"	Clear, Hinged Cover	Long Side
PTH-22492-C	8.48" x 4.93" x 3.74" 8.484.933.74	8.24" x 4.69" x 3.21"	Clear, Hinged Cover	Long Side
PTH-22492	8.48" x 4.93" x 3.74" 8.484.933.74	8.24" x 4.69" x 3.21"	Opaque, Hinged Cover	Long Side
PTH-22512-C	8.48" x 7.69" x 3.94" 8.487.693.94	8.24" x 7.45" x 3.43"	Clear, Hinged Cover	Long Side
PTH-22512	8.48" x 7.69" x 3.94" 8.487.693.94	8.24" x 7.45" x 3.43"	Opaque, Hinged Cover	Long Side
PTH-22480-C	9.26" x 2.57" x 3.35" 9.262.573.35	9.02" x 2.33" x 2.84"	Clear, Hinged Cover	Long Side
PTH-22780-L	9.26" x 2.57" x 3.35" 9.262.573.35	9.02" x 2.33" x 2.84"	Opaque, Hinged Cover	Short Side
PTH-22780-LC	9.26" x 2.57" x 3.35" 9.262.573.35	9.02" x 2.33" x 2.84"	Clear, Hinged Cover	Short Side
PTH-22480	9.26" x 2.57" x 3.35" 9.262.573.35	9.02" x 2.33" x 2.84"	Opaque, Hinged Cover	Long Side
PTH-22706-LC	9.26" x 5.33" x 5.12" 9.265.335.12	9.02" x 5.09" x 4.61"	Clear, Hinged Cover	Short Side
PTH-22706-L	9.26" x 5.33" x 5.12" 9.265.335.12	9.02" x 5.09" x 4.61"	Opaque, Hinged Cover	Short Side
PTH-22506-C	9.26" x 5.33" x 5.12" 9.265.335.12	9.02" x 5.09" x 4.63"	Clear, Hinged Cover	Long Side
PTH-22506	9.26" x 5.33" x 5.12" 9.265.335.12	9.02" x 5.09" x 4.63"	Opaque, Hinged Cover	Long Side
PTH-22422-C	10.29" x 8.28" x 4.72" 10.298.284.72	10.05" x 8.04" x 4.21"	Clear, Hinged Cover	Long Side
PTH-22422	10.29" x 8.28" x 4.72" 10.298.284.72	10.05" x 8.04" x 4.21"	Opaque, Hinged Cover	Long Side
PTH-22446-C	10.44" x 6.90" x 7.09" 10.446.97.09	10.20" x 6.66" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22446	10.44" x 6.90" x 7.09" 10.446.97.09	10.20" x 6.66" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22426-C	11.22" x 7.29" x 7.09" 11.227.297.09	10.98" x 7.05" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22426	11.23" x 7.29" x 7.09" 11.237.297.09	10.99" x 7.05" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22428	13.20" x 9.26" x 5.91" 13.29.265.91	12.96" x 9.02" x 5.40"	Opaque, Hinged Cover	Long Side
PTH-22428-C	13.20" x 9.26" x 5.91" 13.29.265.91	12.96" x 9.02" x 5.40"	Clear, Hinged Cover	Long Side
PTH-22456-C	14.38" x 10.44" x 7.01" 14.3810.447.01	14.14" x 10.20" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22456	14.38" x 10.44" x 7.01" 14.3810.447.01	14.14" x 10.20" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22450-C	14.38" x 6.90" x 7.09" 14.386.97.09	14.14" x 6.66" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22450	14.38" x 6.90" x 7.09" 14.386.97.09	14.14" x 6.66" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22448-C	14.42" x 6.90" x 5.12" 14.426.95.12	14.18" x 6.66" x 4.53"	Clear, Hinged Cover	Long Side
PTH-22448	14.42" x 6.90" x 5.12" 14.426.95.12	14.18" x 6.66" x 4.53"	Opaque, Hinged Cover	Long Side
PTH-22730-L	15.17" x 11.23" x 5.91" 15.1711.235.91	14.93" x 10.99" x 5.40"	Opaque, Hinged Cover	Short Side
PTH-22730-LC	15.17" x 11.23" x 5.91" 15.1711.235.91	14.93" x 10.99" x 5.40"	Clear, Hinged Cover	Short Side
PTH-22430-C	15.17" x 11.23" x 5.91" 15.1711.235.91	14.93" x 10.99" x 5.40"	Clear, Hinged Cover	Long Side
PTH-22430	15.17" x 11.23" x 5.91" 15.1711.235.91	14.93" x 10.99" x 5.40"	Opaque, Hinged Cover	Long Side
PTH-22432-C	15.17" x 11.23" x 7.09" 15.1711.237.09	14.93" x 10.99" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22432	15.17" x 11.23" x 7.09" 15.1711.237.09	14.93" x 10.99" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22460-C	16.35" x 12.42" x 7.09" 16.3512.427.09	16.11" x 12.18" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22760-L	16.35" x 12.42" x 7.09" 16.3512.427.09	16.11" x 12.18" x 6.58"	Opaque, Hinged Cover	Short Side
PTH-22760-LC	16.35" x 12.42" x 7.09" 16.3512.427.09	16.11" x 12.18" x 6.58"	Clear, Hinged Cover	Short Side
PTH-22460	16.35" x 12.42" x 7.09" 16.3512.427.09	16.11" x 12.18" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22436-C	17.14" x 13.20" x 7.87" 17.1413.27.87	16.90" x 12.96" x 7.31"	Clear, Hinged Cover	Long Side
PTH-22436	17.14" x 13.20" x 7.87" 17.1413.27.87	16.90" x 12.96" x 7.31"	Opaque, Hinged Cover	Long Side
PTH-22438-C	19.18" x 15.25" x 7.99" 19.1815.257.99	18.94" x 15.01" x 7.48"	Clear, Hinged Cover	Long Side
PTH-22438	19.18" x 15.25" x 7.99" 19.1815.257.99	18.94" x 15.01" x 7.48"	Opaque, Hinged Cover	Long Side
PTH-22458-C	21.47" x 10.44" x 5.12" 21.4710.445.12	21.23" x 10.20" x 4.61"	Clear, Hinged Cover	Long Side
PTH-22758-LC	21.47" x 10.44" x 5.12" 21.4710.445.12	21.23" x 10.20" x 4.88"	Clear, Hinged Cover	Short Side
PTH-22758-L	21.47" x 10.44" x 5.12" 21.4710.445.12	21.23" x 10.20" x 4.88"	Opaque, Hinged Cover	Short Side
PTH-22458	21.47" x 10.44" x 5.12" 21.4710.445.12	21.23" x 10.20" x 4.61"	Opaque, Hinged Cover	Long Side
PTH-22462	21.47" x 14.38" x 7.01" 21.4714.387.01	21.23" x 14.14" x 6.58"	Opaque, Hinged Cover	Long Side
PTH-22462-C	21.47" x 14.38" x 7.01" 21.4714.387.01	21.23" x 14.14" x 6.58"	Clear, Hinged Cover	Long Side
PTH-22762-LC	21.47" x 14.38" x 7.09" 21.4714.387.09	21.23" x 14.14" x 6.58"	Clear, Hinged Cover	Short Side
PTH-22762-L	21.47" x 14.38" x 7.09" 21.4714.387.09	21.23" x 14.14" x 6.58"	Opaque, Hinged Cover	Short Side
PTH-22440	23.12" x 15.25" x 9.21" 23.1215.259.21	22.88" x 15.01" x 8.70"	Opaque, Hinged Cover	Long Side
PTH-22440-C	23.12" x 15.25" x 9.21" 23.1215.259.21	22.88" x 15.01" x 8.70"	Clear, Hinged Cover	Long Side
