PTH-22498-C

Fiberglass Box with Self-Locking Latch and Clear Cover PTH-22498-C
5 Day Modifications
  • Fiberglass Box with Self-Locking Latch and Clear Cover PTH-22498-C losed

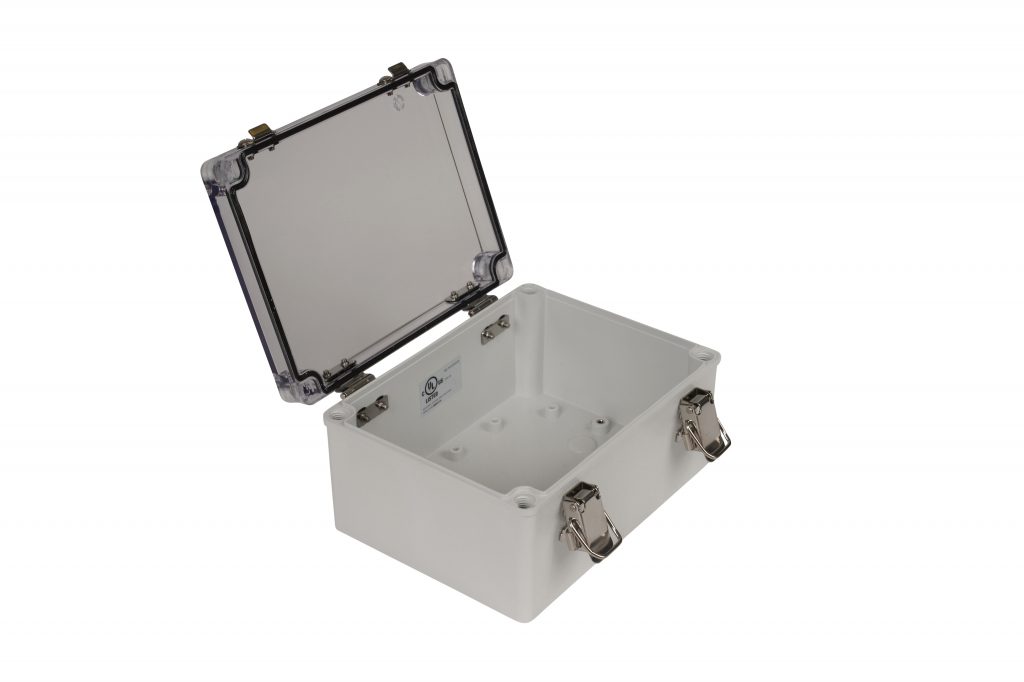

  • Fiberglass Box with Self-Locking Latch and Clear Cover PTH-22498-C open
2 Videos

Product Details

Model # PTH-22498-C PTH Series Fiberglass Box
  • Body made of gray polycarbonate plastic 10% glass fiber filled
  • Hinged cover made of clear polycarbonate plastic
  • High impact resistance
  • Stainless steel latch
  • IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
  • UL508 / UL tested for type 4X, listed #E194432
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous gasket
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 7.29" x 5.33" x 3.94"
Internal Size L x W x D: 7.05" x 5.09" x 3.43"
Weight: 1.452 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Features: 10% Fiberglass Reinforced Plastic
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: IP67
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Clear, Hinged Cover
Hinge Location: Long Side

Drawing

PTH-22498-C Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style Hinge Location
PTH-22422-C 10.29" x 8.28" x 4.72" 10.298.284.72 10.05" x 8.04" x 4.21" Clear, Hinged Cover Long Side
PTH-22422 10.29" x 8.28" x 4.72" 10.298.284.72 10.05" x 8.04" x 4.21" Opaque, Hinged Cover Long Side
PTH-22446-C 10.44" x 6.90" x 7.09" 10.446.97.09 10.20" x 6.66" x 6.58" Clear, Hinged Cover Long Side
PTH-22446 10.44" x 6.90" x 7.09" 10.446.97.09 10.20" x 6.66" x 6.58" Opaque, Hinged Cover Long Side
PTH-22426-C 11.22" x 7.29" x 7.09" 11.227.297.09 10.98" x 7.05" x 6.58" Opaque, Hinged Cover Long Side
PTH-22426 11.23" x 7.29" x 7.09" 11.237.297.09 10.99" x 7.05" x 6.58" Opaque, Hinged Cover Long Side
PTH-22428 13.20" x 9.26" x 5.91" 13.29.265.91 12.96" x 9.02" x 5.40" Opaque, Hinged Cover Long Side
PTH-22428-C 13.20" x 9.26" x 5.91" 13.29.265.91 12.96" x 9.02" x 5.40" Clear, Hinged Cover Long Side
PTH-22456-C 14.38" x 10.44" x 7.01" 14.3810.447.01 14.14" x 10.20" x 6.58" Clear, Hinged Cover Long Side
PTH-22456 14.38" x 10.44" x 7.01" 14.3810.447.01 14.14" x 10.20" x 6.58" Opaque, Hinged Cover Long Side
PTH-22450-C 14.38" x 6.90" x 7.09" 14.386.97.09 14.14" x 6.66" x 6.58" Clear, Hinged Cover Long Side
PTH-22450 14.38" x 6.90" x 7.09" 14.386.97.09 14.14" x 6.66" x 6.58" Opaque, Hinged Cover Long Side
PTH-22448-C 14.42" x 6.90" x 5.12" 14.426.95.12 14.18" x 6.66" x 4.53" Clear, Hinged Cover Long Side
PTH-22448 14.42" x 6.90" x 5.12" 14.426.95.12 14.18" x 6.66" x 4.53" Opaque, Hinged Cover Long Side
PTH-22730-L 15.17" x 11.23" x 5.91" 15.1711.235.91 14.93" x 10.99" x 5.40" Opaque, Hinged Cover Short Side
PTH-22730-LC 15.17" x 11.23" x 5.91" 15.1711.235.91 14.93" x 10.99" x 5.40" Clear, Hinged Cover Short Side
PTH-22430-C 15.17" x 11.23" x 5.91" 15.1711.235.91 14.93" x 10.99" x 5.40" Clear, Hinged Cover Long Side
PTH-22430 15.17" x 11.23" x 5.91" 15.1711.235.91 14.93" x 10.99" x 5.40" Opaque, Hinged Cover Long Side
PTH-22432-C 15.17" x 11.23" x 7.09" 15.1711.237.09 14.93" x 10.99" x 6.58" Clear, Hinged Cover Long Side
PTH-22432 15.17" x 11.23" x 7.09" 15.1711.237.09 14.93" x 10.99" x 6.58" Opaque, Hinged Cover Long Side
PTH-22460-C 16.35" x 12.42" x 7.09" 16.3512.427.09 16.11" x 12.18" x 6.58" Clear, Hinged Cover Long Side
PTH-22760-L 16.35" x 12.42" x 7.09" 16.3512.427.09 16.11" x 12.18" x 6.58" Opaque, Hinged Cover Short Side
PTH-22760-LC 16.35" x 12.42" x 7.09" 16.3512.427.09 16.11" x 12.18" x 6.58" Clear, Hinged Cover Short Side
PTH-22460 16.35" x 12.42" x 7.09" 16.3512.427.09 16.11" x 12.18" x 6.58" Opaque, Hinged Cover Long Side
PTH-22436-C 17.14" x 13.20" x 7.87" 17.1413.27.87 16.90" x 12.96" x 7.31" Clear, Hinged Cover Long Side
PTH-22436 17.14" x 13.20" x 7.87" 17.1413.27.87 16.90" x 12.96" x 7.31" Opaque, Hinged Cover Long Side
PTH-22438-C 19.18" x 15.25" x 7.99" 19.1815.257.99 18.94" x 15.01" x 7.48" Clear, Hinged Cover Long Side
PTH-22438 19.18" x 15.25" x 7.99" 19.1815.257.99 18.94" x 15.01" x 7.48" Opaque, Hinged Cover Long Side
PTH-22458-C 21.47" x 10.44" x 5.12" 21.4710.445.12 21.23" x 10.20" x 4.61" Clear, Hinged Cover Long Side
PTH-22758-LC 21.47" x 10.44" x 5.12" 21.4710.445.12 21.23" x 10.20" x 4.88" Clear, Hinged Cover Short Side
PTH-22758-L 21.47" x 10.44" x 5.12" 21.4710.445.12 21.23" x 10.20" x 4.88" Opaque, Hinged Cover Short Side
PTH-22458 21.47" x 10.44" x 5.12" 21.4710.445.12 21.23" x 10.20" x 4.61" Opaque, Hinged Cover Long Side
PTH-22462 21.47" x 14.38" x 7.01" 21.4714.387.01 21.23" x 14.14" x 6.58" Opaque, Hinged Cover Long Side
PTH-22462-C 21.47" x 14.38" x 7.01" 21.4714.387.01 21.23" x 14.14" x 6.58" Clear, Hinged Cover Long Side
PTH-22762-LC 21.47" x 14.38" x 7.09" 21.4714.387.09 21.23" x 14.14" x 6.58" Clear, Hinged Cover Short Side
PTH-22762-L 21.47" x 14.38" x 7.09" 21.4714.387.09 21.23" x 14.14" x 6.58" Opaque, Hinged Cover Short Side
PTH-22440 23.12" x 15.25" x 9.21" 23.1215.259.21 22.88" x 15.01" x 8.70" Opaque, Hinged Cover Long Side
PTH-22440-C 23.12" x 15.25" x 9.21" 23.1215.259.21 22.88" x 15.01" x 8.70" Clear, Hinged Cover Long Side
PTH-22490 6.11" x 4.93" x 3.74" 6.114.933.74 5.87" x 4.69" x 3.21" Opaque, Hinged Cover Long Side
PTH-22490-C 6.11" x 4.93" x 3.74" 6.114.933.74 5.87" x 4.69" x 3.21" Clear, Hinged Cover Long Side
PTH-22746-LC 6.90" x 14.38" x 5.04" 6.914.385.04 6.66" x 14.14" x 4.53" Clear, Hinged Cover Short Side
PTH-22746-L 6.90" x 14.38" x 5.04" 6.914.385.04 6.66" x 14.14" x 4.53" Opaque, Hinged Cover Short Side
PTH-22442 6.90" x 6.90" x 5.12" 6.96.95.12 6.66" x 6.66" x 4.53" Opaque, Hinged Cover Long Side
PTH-22442-C 6.90" x 6.90" x 5.12" 6.96.95.12 6.66" x 6.66" x 4.53" Clear, Hinged Cover Long Side
PTH-22496-C 7.29" x 5.33" x 2.95" 7.295.332.95 7.05" x 5.09" x 2.44" Clear, Hinged Cover Long Side
PTH-22496 7.29" x 5.33" x 2.95" 7.295.332.95 7.05" x 5.09" x 2.44" Opaque, Hinged Cover Long Side
PTH-22498-C 7.29" x 5.33" x 3.94" 7.295.333.94 7.05" x 5.09" x 3.43" Clear, Hinged Cover Long Side
PTH-22498 7.29" x 5.33" x 3.94" 7.295.333.94 7.05" x 5.09" x 3.43" Opaque, Hinged Cover Long Side
PTH-22502 7.29" x 5.33" x 6.30" 7.295.336.3 7.05" x 5.09" x 5.79" Opaque, Hinged Cover Long Side
PTH-22502-C 7.29" x 5.33" x 6.30" 7.295.336.3 7.05" x 5.09" x 5.79" Clear, Hinged Cover Long Side
PTH-22510 7.29" x 7.29" x 6.30" 7.297.296.3 7.05" x 7.05" x 5.79" Opaque, Hinged Cover Long Side
PTH-22510-C 7.29" x 7.29" x 6.30" 7.297.296.3 7.05" x 7.05" x 5.79" Clear, Hinged Cover Long Side
PTH-22492-C 8.48" x 4.93" x 3.74" 8.484.933.74 8.24" x 4.69" x 3.21" Clear, Hinged Cover Long Side
PTH-22492 8.48" x 4.93" x 3.74" 8.484.933.74 8.24" x 4.69" x 3.21" Opaque, Hinged Cover Long Side
PTH-22512-C 8.48" x 7.69" x 3.94" 8.487.693.94 8.24" x 7.45" x 3.43" Clear, Hinged Cover Long Side
PTH-22512 8.48" x 7.69" x 3.94" 8.487.693.94 8.24" x 7.45" x 3.43" Opaque, Hinged Cover Long Side
PTH-22480-C 9.26" x 2.57" x 3.35" 9.262.573.35 9.02" x 2.33" x 2.84" Clear, Hinged Cover Long Side
PTH-22780-L 9.26" x 2.57" x 3.35" 9.262.573.35 9.02" x 2.33" x 2.84" Opaque, Hinged Cover Short Side
PTH-22780-LC 9.26" x 2.57" x 3.35" 9.262.573.35 9.02" x 2.33" x 2.84" Clear, Hinged Cover Short Side
PTH-22480 9.26" x 2.57" x 3.35" 9.262.573.35 9.02" x 2.33" x 2.84" Opaque, Hinged Cover Long Side
PTH-22706-LC 9.26" x 5.33" x 5.12" 9.265.335.12 9.02" x 5.09" x 4.61" Clear, Hinged Cover Short Side
PTH-22706-L 9.26" x 5.33" x 5.12" 9.265.335.12 9.02" x 5.09" x 4.61" Opaque, Hinged Cover Short Side
PTH-22506-C 9.26" x 5.33" x 5.12" 9.265.335.12 9.02" x 5.09" x 4.63" Clear, Hinged Cover Long Side
PTH-22506 9.26" x 5.33" x 5.12" 9.265.335.12 9.02" x 5.09" x 4.63" Opaque, Hinged Cover Long Side
