PTK-18421

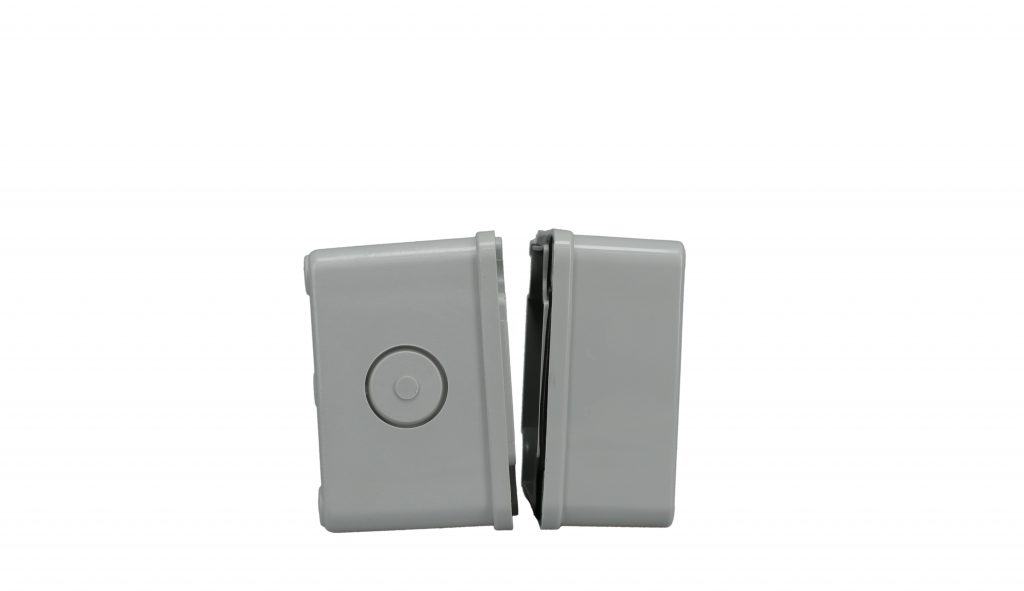

Fiberglass Box with Knockouts PTK-18421
5 Day Modifications

Product Details

Model # PTK-18421 PTK Series Fiberglass Box
  • Two pre-molded knock outs (21-22 mm) for easy field installation and modification cost savings
  • Body made of gray polycarbonate (PC) plastic 10% glass fiber filled
  • Cover made of gray polycarbonate (PC) plastic
  • Outstanding strength and high impact resistance
  • Nonmetallic cover screws
  • IP-67 TUV rating to keep out dust and water in extreme conditions.
  • UL508 / NEMA type 4X and type 6 listed #E194432
  • RoHs compliant
  • UL industrial controls listed
  • Non-chlorinated & non-brominated flame retardant with UL-94 5VA rating
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous poured RAKU-PUR® Foam gasket
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 4.33" x 3.15" x 3.35"
Internal Size L x W x D: 3.91" x 2.73" x 3.11"
Weight: 0.4994 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Knockouts: Knockouts
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
Features: 10% Fiberglass Reinforced Plastic
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: IP66
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Opaque, Screw Down Cover

Drawing

PTK-18421 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
PTK-18420-C 4.33" x 3.15" x 2.76" 4.333.152.76 3.91" x 2.73" x 2.52" Clear, Screw Down Cover
PTK-18420 4.33" x 3.15" x 2.76" 4.333.152.76 3.91" x 2.73" x 2.52" Opaque, Screw Down Cover
PTK-18421-C 4.33" x 3.15" x 3.35" 4.333.153.35 3.91" x 2.73" x 3.11" Clear, Screw Down Cover
PTK-18421 4.33" x 3.15" x 3.35" 4.333.153.35 3.91" x 2.73" x 3.11" Opaque, Screw Down Cover
PTK-18422 5.12" x 3.15" x 2.76" 5.123.152.76 4.72" x 2.75" x 2.52" Opaque, Screw Down Cover
PTK-18422-C 5.12" x 3.15" x 2.76" 5.123.152.76 4.72" x 2.75" x 2.52" Clear, Screw Down Cover
PTK-18423-C 5.12" x 3.15" x 3.35" 5.123.153.35 4.72" x 2.75" x 3.11" Clear, Screw Down Cover
PTK-18423 5.12" x 3.15" x 3.35" 5.123.153.35 4.72" x 2.75" x 3.11" Opaque, Screw Down Cover
PTK-18428-C 6.89" x 4.92" x 2.95" 6.894.922.95 6.51" x 4.62" x 2.67" Clear, Screw Down Cover
PTK-18428 6.89" x 4.92" x 2.95" 6.894.922.95 6.51" x 4.62" x 2.67" Opaque, Screw Down Cover
PTK-18429 6.89" x 4.92" x 3.94" 6.894.923.94 6.51" x 4.62" x 3.65" Opaque, Screw Down Cover
PTK-18429-C 6.89" x 4.92" x 3.94" 6.894.923.94 6.51" x 4.62" x 3.65" Clear, Screw Down Cover
PTK-18424 7.09" x 3.15" x 2.76" 7.093.152.76 6.70" x 2.75" x 2.52" Opaque, Screw Down Cover
PTK-18424-C 7.09" x 3.15" x 2.76" 7.093.152.76 6.70" x 2.75" x 2.52" Clear, Screw Down Cover
PTK-18425-C 7.09" x 3.15" x 3.15" 7.093.153.15 6.70" x 2.75" x 3.11" Clear, Screw Down Cover
PTK-18425 7.09" x 3.15" x 3.15" 7.093.153.15 6.70" x 2.75" x 3.11" Opaque, Screw Down Cover
PTK-18426-C 9.84" x 3.15" x 2.76" 9.843.152.76 9.50" x 2.80" x 2.52" Clear, Screw Down Cover
PTK-18426 9.84" x 3.15" x 2.76" 9.843.152.76 9.50" x 2.80" x 2.52" Opaque, Screw Down Cover
PTK-18427 9.84" x 3.15" x 3.35" 9.843.153.35 9.50" x 2.80" x 3.11" Opaque, Screw Down Cover
PTK-18427-C 9.84" x 3.15" x 3.35" 9.843.153.35 9.50" x 2.80" x 3.11" Clear, Screw Down Cover
