Name: Fiberglass box with stainless steel latch PTQ-11057
Brand: Bud Industries
Availability: InStock

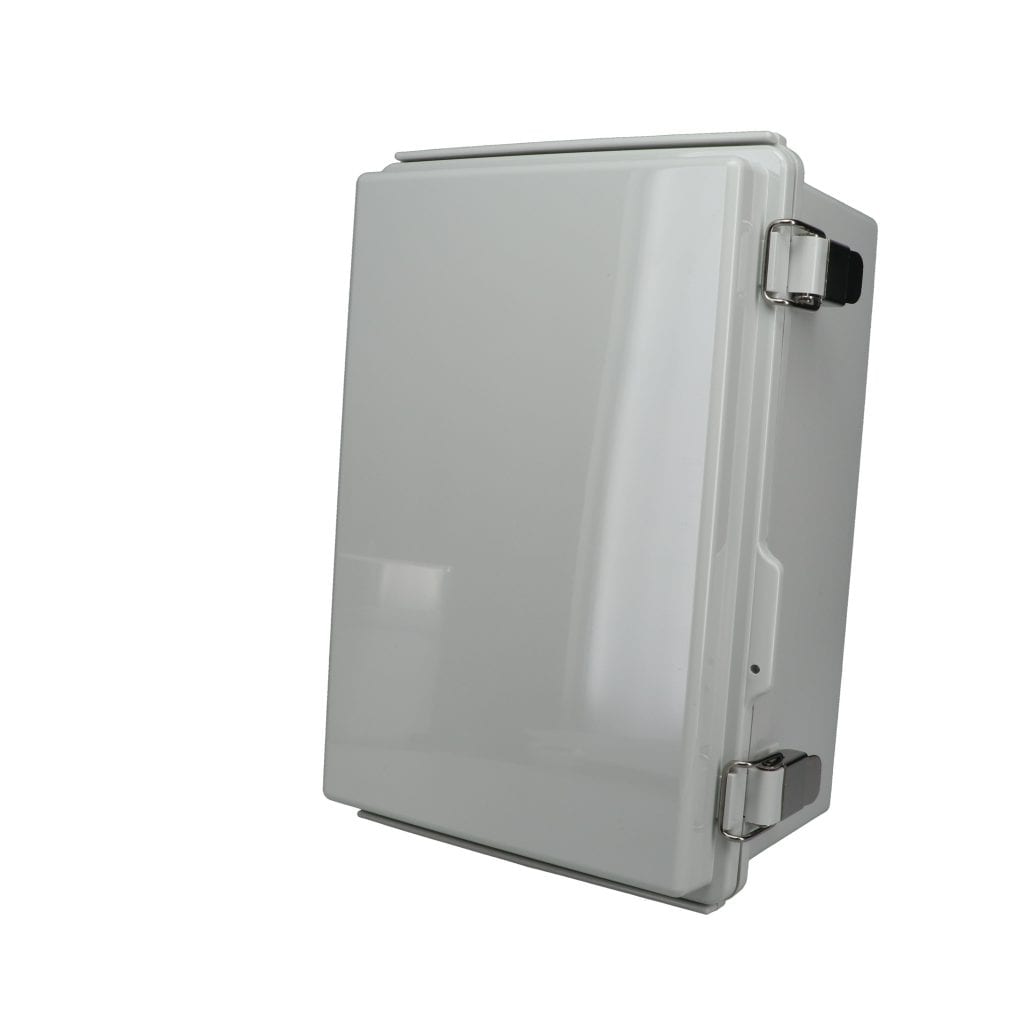

Fiberglass box with stainless steel latch PTQ-11057

Model # PTQ-11057 PTQ Series Fiberglass Box

Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
Hinged Cover made of Gray Polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
UL508 / UL tested for type 4X, listed #E194432.
RoHs compliant
Non-chlorinated & non-brominated flame retardant With UL-94 V0 and UL-94 5VA rating @ 3mm
Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
-40c to +95c extended exposure condition
Good chemical resistance
Continuous gasket
View Nema/IP Accessories

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 11.02" x 7.48" x 5.51"

Internal Size L x W x D: 9.87" x 6.34" x 4.82"

Weight: 4.4 lbs

Color: Light Gray

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6

IP Rating: IP67

Features: 10% Fiberglas Reinforced Plastic

Mounting Style: Mounting Brackets

Cover Style: Opaque, Hinged Cover

Latch Style: Stainless Steel

Gasket Type: RAKU-PUR® Foam Gasket

Features: 10% Fiberglass Reinforced Plastic

Indoor / Outdoor: Outdoor (UV Stabilized)

Flammability Rating: UL94-5VA

Door Flammability Rating: UL94-5VA

Type of Plastic: Gray Polycarbonate

Door Type of Plastic: Polycarbonate

UL Rating: UL508

Service Temperature Min: -40°C

Service Temperature Max: 95°C

Hinge Location: Long Side

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Cover Style
PTQ-11042-C	10.20" x 4.33" x 3.94" 10.24.333.94	10.10" x 4.21" x 3.82"	Clear, Hinged Cover
PTQ-11042	10.20" x 4.33" x 3.94" 10.24.333.94	10.10" x 4.21" x 3.82"	Opaque, Hinged Cover
PTQ-11051	10.21" x 6.28" x 5.10" 10.216.285.1	9.90" x 5.96" x 4.78"
PTQ-11051-C	10.21" x 6.28" x 5.10" 10.216.285.1	9.90" x 5.96" x 4.78"	Clear, Hinged Cover
PTQ-11050-C	10.24" x 6.30" x 3.94" 10.246.33.94	9.15" x 5.28" x 3.41"	Clear, Hinged Cover
PTQ-11050	10.24" x 6.30" x 3.94" 10.246.33.94	9.15" x 5.28" x 3.41"	Opaque, Hinged Cover
PTQ-11057	11.02" x 7.48" x 5.51" 11.027.485.51	9.87" x 6.34" x 4.82"	Opaque, Hinged Cover
PTQ-11057-C	11.02" x 7.48" x 5.51" 11.027.485.51	9.87" x 6.34" x 4.82"	Clear, Hinged Cover
PTQ-11058-C	11.80" x 7.87" x 5.12" 11.87.875.12	11.60" x 7.75" x 5.00"	Clear, Hinged Cover
PTQ-11058	11.80" x 7.87" x 5.12" 11.87.875.12	11.60" x 7.75" x 5.00"	Opaque, Hinged Cover
PTQ-11066-C	11.81" x 11.81" x 7.09" 11.8111.817.09	11.69" x 11.60" x 6.97"	Clear, Hinged Cover
PTQ-11066	11.81" x 11.81" x 7.09" 11.8111.817.09	11.69" x 11.60" x 6.97"	Opaque, Hinged Cover
PTQ-11059	11.81" x 7.87" x 5.91" 11.817.875.91	10.51" x 6.70" x 5.21"	Opaque, Hinged Cover
PTQ-11059-C	11.81" x 7.87" x 5.91" 11.817.875.91	10.51" x 6.70" x 5.21"	Clear, Screw Down Cover
PTQ-11070-C	13.78" x 13.78" x 5.91" 13.7813.785.91	13.66" x 13.60" x 5.79"	Clear, Hinged Cover
PTQ-11070	13.78" x 13.78" x 5.91" 13.7813.785.91	13.66" x 13.60" x 5.79"	Opaque, Hinged Cover
PTQ-11062-C	13.78" x 9.84" x 7.09" 13.789.847.09	12.70" x 8.76" x 6.84"
PTQ-11062	13.78" x 9.84" x 7.09" 13.789.847.09	12.70" x 8.76" x 6.84"
PTQ-11064	14.96" x 11.02" x 5.12" 14.9611.025.12	13.84" x 9.89" x 4.42"	Opaque, Hinged Cover
PTQ-11064-C	14.96" x 11.02" x 5.12" 14.9611.025.12	13.84" x 9.89" x 4.42"	Clear, Hinged Cover
PTQ-11068	15.75" x 11.81" x 5.91" 15.7511.815.91	15.51" x 11.50" x 5.21"	Opaque, Hinged Cover
PTQ-11068-C	15.75" x 11.81" x 5.91" 15.7511.815.91	15.51" x 11.50" x 5.21"	Clear, Hinged Cover
PTQ-11072	17.72" x 13.78" x 4.72" 17.7213.784.72	17.60" x 13.60" x 4.60"	Opaque, Hinged Cover
PTQ-11072-C	17.72" x 13.78" x 4.72" 17.7213.784.72	17.60" x 13.60" x 4.60"	Clear, Hinged Cover
PTQ-11073-C	17.72" x 13.78" x 6.30" 17.7213.786.3	17.87" x 13.50" x 5.60"	Clear, Hinged Cover
PTQ-11073	17.72" x 13.78" x 6.30" 17.7213.786.3	17.87" x 13.50" x 5.60"
PTQ-11076-C	19.69" x 15.75" x 7.87" 19.6915.757.87	19.45" x 15.50" x 7.18"	Clear, Hinged Cover
PTQ-11076	19.69" x 15.75" x 7.87" 19.6915.757.87	19.45" x 15.50" x 7.18"	Opaque, Hinged Cover
PTQ-11077-C	23.62" x 15.75" x 7.09" 23.6215.757.09	23.50" x 15.63" x 6.97"	Clear, Hinged Cover
PTQ-11077	23.62" x 15.75" x 7.09" 23.6215.757.09	23.50" x 15.63" x 6.97"	Opaque, Hinged Cover
PTQ-11080	24.80" x 20.87" x 10.04" 24.820.8710.04	24.28" x 20.50" x 9.30"	Opaque, Hinged Cover
PTQ-11081	28.74" x 20.87" x 7.28" 28.7420.877.28	28.60" x 20.75" x 7.16"	Opaque, Hinged Cover
PTQ-11083	32.68" x 24.80" x 7.28" 32.6824.87.28	32.50" x 24.68" x 7.16"	Opaque, Hinged Cover
PTQ-11035-C	4.72" x 3.54" x 2.76" 4.723.542.76	4.60" x 3.42" x 2.64"	Clear, Hinged Cover
PTQ-11035	4.72" x 3.54" x 2.76" 4.723.542.76	4.60" x 3.42" x 2.64"	Opaque, Hinged Cover
PTQ-11038-C	5.91" x 3.94" x 3.35" 5.913.943.35	5.79" x 3.82" x 3.23"	Clear, Hinged Cover
PTQ-11038	5.91" x 3.94" x 3.35" 5.913.943.35	5.79" x 3.82" x 3.23"	Opaque, Hinged Cover
PTQ-11046-C	5.91" x 5.91" x 3.55" 5.915.913.55	4.59" x 4.59" x 3.11"	Clear, Hinged Cover
PTQ-11046	5.91" x 5.91" x 3.55" 5.915.913.55	4.59" x 4.59" x 3.11"	Opaque, Hinged Cover
PTQ-11047-C	5.91" x 5.91" x 4.73" 5.915.914.73	5.79" x 5.79" x 4.60"	Clear, Hinged Cover
PTQ-11047	5.91" x 5.91" x 4.73" 5.915.914.73	5.79" x 5.79" x 4.60"	Opaque, Hinged Cover
PTQ-11044-C	7.28" x 5.31" x 3.36" 7.285.313.36	7.16" x 5.19" x 3.23"	Clear, Hinged Cover
PTQ-11044	7.28" x 5.31" x 3.36" 7.285.313.36	7.16" x 5.19" x 3.23"	Opaque, Hinged Cover
PTQ-11048	8.27" x 6.30" x 3.94" 8.276.33.94	7.27" x 5.40" x 3.36"	Opaque, Hinged Cover
PTQ-11048-C	8.27" x 6.30" x 3.94" 8.276.33.94	7.27" x 5.40" x 3.36"	Clear, Hinged Cover
PTQ-11055-C	8.27" x 8.27" x 5.13" 8.278.275.13	8.15" x 8.15" x 5.00"	Clear, Hinged Cover
PTQ-11055	8.27" x 8.27" x 5.13" 8.278.275.13	8.15" x 8.15" x 5.00"	Opaque, Hinged Cover
