SN-3703

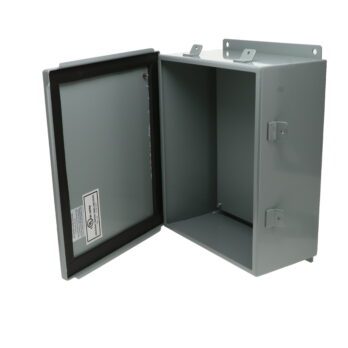

Electronics Enclosure SN-3703

Product Details

Model # SN-3703 SN Series Steel Electronics Enclosure
  • Made from durable 14 gauge steel (0.078″ thick).
  • Smooth continuous welded seams.
  • External mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment.
  • Hinged cover clamps to the base with stainless steel brackets and steel screws for a watertight seal.
  • Weld nuts for inner panel mounting.
  • Bonding studs for grounding are provided on base and door.
  • Easily machined and modified to your particular requirements.
  • Internal panel and hardware included.
  • Tested and listed to UL-508 Type 4, 12 and 13 requirements (UL File #E194432)
  • Finish: Smooth gray powder coat
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 12.00" x 10.00" x 5.00"
Internal Size L x W x D: 11.00" x 9.00" x 4.52"
Weight: 16 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4X, NEMA 12, NEMA 13
IP Rating: IP65
Mounting Style: Mounting Brackets
Cover Style: Opaque, Hinged Cover

Drawing

SN-3703 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
SN-3704 10.00" x 8.00" x 6.00" 10.008.006.00 9.00" x 7.00" x 5.52"
SN-3703 12.00" x 10.00" x 5.00" 12.0010.005.00 11.00" x 9.00" x 4.52"
SN-3705 12.00" x 12.00" x 6.00" 12.0012.006.00 11.00" x 11.00" x 5.52"
SN-3706 14.00" x 12.00" x 6.00" 14.0012.006.00 13.00" x 11.00" x 5.52"
SN-3708 14.00" x 12.00" x 8.00" 14.0012.008.00 13.00" x 11.00" x 7.52"
SN-3709 16.00" x 14.00" x 10.00" 16.0014.0010.00 15.00" x 13.00" x 9.52"
SN-3707 16.00" x 14.00" x 6.00" 16.0014.006.00 15.00" x 13.00" x 5.52"
SN-3700 6.00" x 4.00" x 3.00" 6.004.003.00 5.00" x 3.00" x 2.52"
SN-3702 6.00" x 6.00" x 4.00" 6.006.004.00 5.00" x 5.00" x 3.52"
SN-3701 8.00" x 6.00" x 3.50" 8.006.003.50 7.00" x 5.00" x 3.02"
