Electronics Enclosure with Captive Screws SNC-3757

Model # SNC-3757 SNC Series Steel Electronics Enclosure

Designed to meet NEMA 1, 2, 4, 12, 13 and IP65 ratings.
UL listed to UL508 – Type 4, 12 and 13.
Continuous seam welded 16 ga. steel construction.
Screw mounted lift-off cover facilitates machining and assembly of components.
Bonding studs for grounding are provided on base and door.
Easily machined and modified to your particular requirements.
Includes stainless steel wall mounting bracket kit.
Includes 14 ga. steel, zinc plated removable internal panel.
Finish: smooth gray powder coat.

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 15.75" x 15.75" x 7.87"

Internal Size L x W x D: 15.10" x 15.10" x 7.29"

Weight: 22 lbs

Color: Gray Powder Coat

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 12, NEMA 13

Cover Style: Screw Down Cover

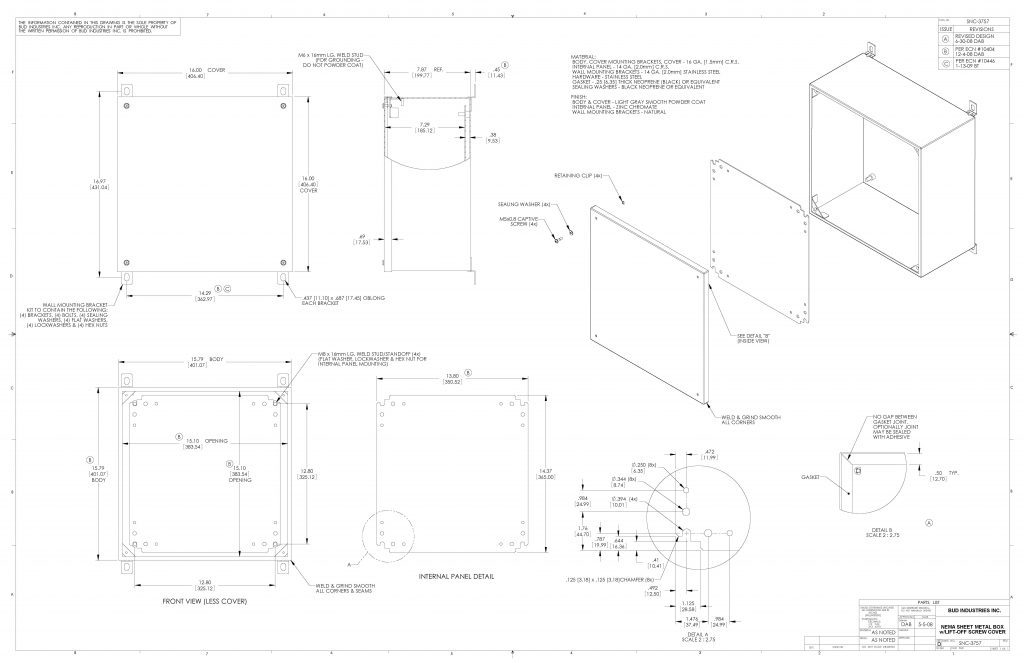

Drawing

SNC-3757 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
SNC-3753	11.81" x 11.81" x 5.91" 11.8111.815.91	11.21" x 11.17" x 5.33"
SNC-3754	11.81" x 11.81" x 7.87" 11.8111.817.87	11.21" x 11.17" x 7.29"
SNC-3751	11.81" x 9.84" x 5.91" 11.819.845.91	11.21" x 9.19" x 5.33"
SNC-3752	11.81" x 9.84" x 7.87" 11.819.847.87	11.21" x 9.19" x 7.29"
SNC-3755	15.75" x 11.81" x 5.91" 15.7511.815.91	15.10" x 11.17" x 5.33"
SNC-3756	15.75" x 11.81" x 7.87" 15.7511.817.87	15.10" x 11.17" x 7.29"
SNC-3757	15.75" x 15.75" x 7.87" 15.7515.757.87	15.10" x 15.10" x 7.29"
SNC-3750	9.84" x 7.87" x 5.91" 9.847.875.91	9.24" x 7.21" x 5.33"
