VC-9933-B

Communications Cabinet with Tempered Glass Door and Rear Access VC-9933-B
  • VisionCab Style Communications Cabinet with Tempered Glass Door

Product Details

Model # VC-9933-B VisionCab Style Communications Cabinet
  • Highly styled and versatile steel cabinet suitable for housing a variety of 19-inch panel width and EIA-310 compatible equipment
  • Removable rear panel (rear access)
  • Sits on floor, table or may be wall-mounted
  • Four adjustable L-shaped mounting rails (included) with square holes on EIA spacing; rails will accept either #12-24 (Bud #307) or M6 (#851-DLH) cage nuts
  • Supplied with see-thru removable front door with tempered glass window
  • Supplied with one fixed ventilated steel shelf
  • Solid steel removable side panels
  • Equipped with 110V AC, 65 CFM exhaust fan for cooling (included)
  • Cable access holes on top and bottom
  • Supplied with steel wall-mounting bracket
  • Four mar-resistant feet on bottom surface
  • Finish: smooth black powder coated
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size H x W x D: 30.27" x 23.62" x 23.62"
Internal Size H x W x D: 26.25" x 17.72" x 18.39"
Weight: 100 lbs
Color: Black Smooth Powder Coated
RoHS Certified: Always Compliant
Mounting Style: Wall Mount
Number of U: 15
Door Style: Glass Front Door
Ventilated: Yes
# Shelves Included: 1

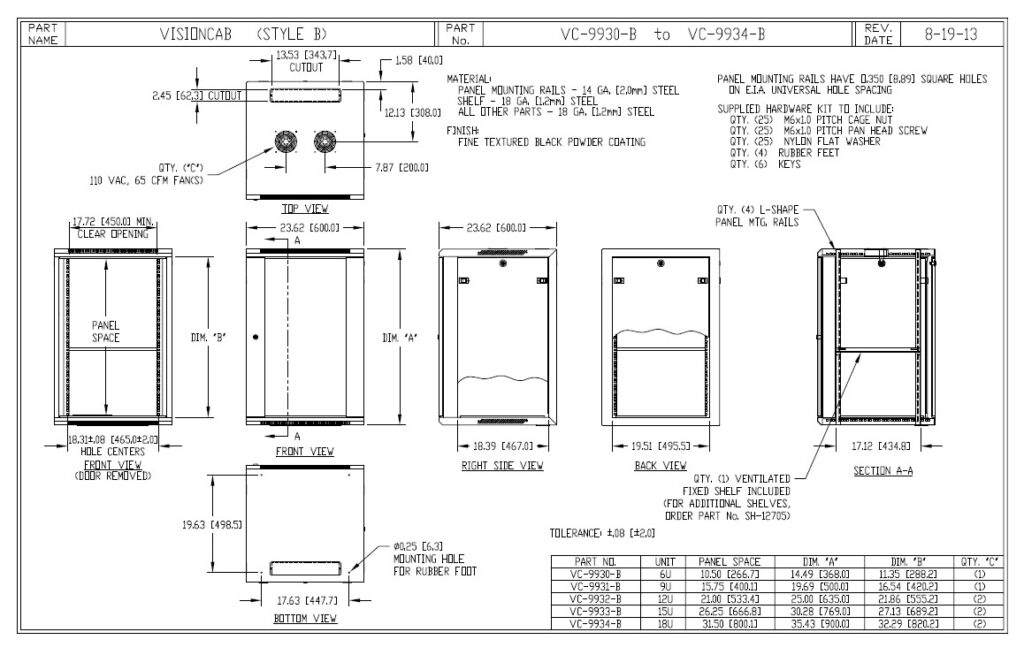

Drawing

VC-9933-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Number of U
VC-9920 14.49" x 23.62" x 17.72" 14.4923.6217.72 10.50" x 17.72" x 12.48" 6
VC-9930 14.49" x 23.62" x 23.62" 14.4923.6223.62 10.50" x 17.72" x 18.39" 6
VC-9930-B 14.49" x 23.62" x 23.62" 14.4923.6223.62 10.50" x 17.72" x 18.39" 6
VC-9921 19.72" x 23.62" x 17.72" 19.7223.6217.72 15.75" x 17.72" x 12.48" 9
VC-9931 19.72" x 23.62" x 23.62" 19.7223.6223.62 15.75" x 17.72" x 18.39" 9
VC-9931-B 19.72" x 23.62" x 23.62" 19.7223.6223.62 15.75" x 17.72" x 18.39" 9
VC-9922 25.00" x 23.62" x 17.72" 25.0023.6217.72 21.00" x 17.72" x 12.48" 12
VC-9932 25.00" x 23.62" x 23.62" 25.0023.6223.62 21.00" x 17.72" x 18.39" 12
VC-9923 30.27" x 23.62" x 17.72" 30.2723.6217.72 26.25" x 17.72" x 12.48" 15
VC-9933 30.27" x 23.62" x 23.62" 30.2723.6223.62 26.25" x 17.72" x 18.39" 15
VC-9933-B 30.27" x 23.62" x 23.62" 30.2723.6223.62 26.25" x 17.72" x 18.39" 15
VC-9924 35.43" x 23.62" x 17.72" 35.4323.6217.72 31.50" x 17.72" x 12.48" 18
VC-9934 35.43" x 23.62" x 23.62" 35.4323.6223.62 31.50" x 17.72" x 18.39" 18
VC-9934-B 35.43" x 23.62" x 23.62" 35.4323.6223.62 31.50" x 17.72" x 18.39" 18
