Potting Box Style B with Mounting Flanges

Potting Box Style B Series

Potting boxes are designed for use with epoxy or silicone that completely seals electronic components. This practice seals out moisture and stabilizes connections. Bud’s ABS plastic potting boxes are economical and lightweight. Potting Box Style B Series has molded mounting flanges at the open end of the base.



Filter Models

Potting Box Style B Plastic Box with Mounting Flanges PB-1558-TF

Potting Box Style B Series
Model # PB-1558-TF
External Size L x W x D: 2.00" x 1.50" x 1.00"
Internal Size L x W x D: 1.86" x 1.36" x 0.93"

Potting Box Style B Plastic Box with Mounting Flanges PB-1559-TF

Potting Box Style B Series
Model # PB-1559-TF
External Size L x W x D: 3.00" x 2.00" x 1.50"
Internal Size L x W x D: 2.86" x 1.86" x 1.43"

Potting Box Style B Plastic Box with Mounting Flanges PB-1574-TF

Potting Box Style B Series
Model # PB-1574-TF
External Size L x W x D: 2.00" x 2.00" x 1.50"
Internal Size L x W x D: 1.86" x 1.86" x 1.36"

Potting Box Style B Plastic Box with Mounting Flanges PB-1575-TF

Potting Box Style B Series
Model # PB-1575-TF
External Size L x W x D: 3.00" x 2.00" x 0.90"
Internal Size L x W x D: 2.89" x 1.89" x 0.76"

Potting Box Style B Plastic Box with Mounting Flanges PB-1576-TF

Potting Box Style B Series
Model # PB-1576-TF
External Size L x W x D: 3.00" x 3.00" x 1.50"
Internal Size L x W x D: 2.86" x 2.86" x 1.36"

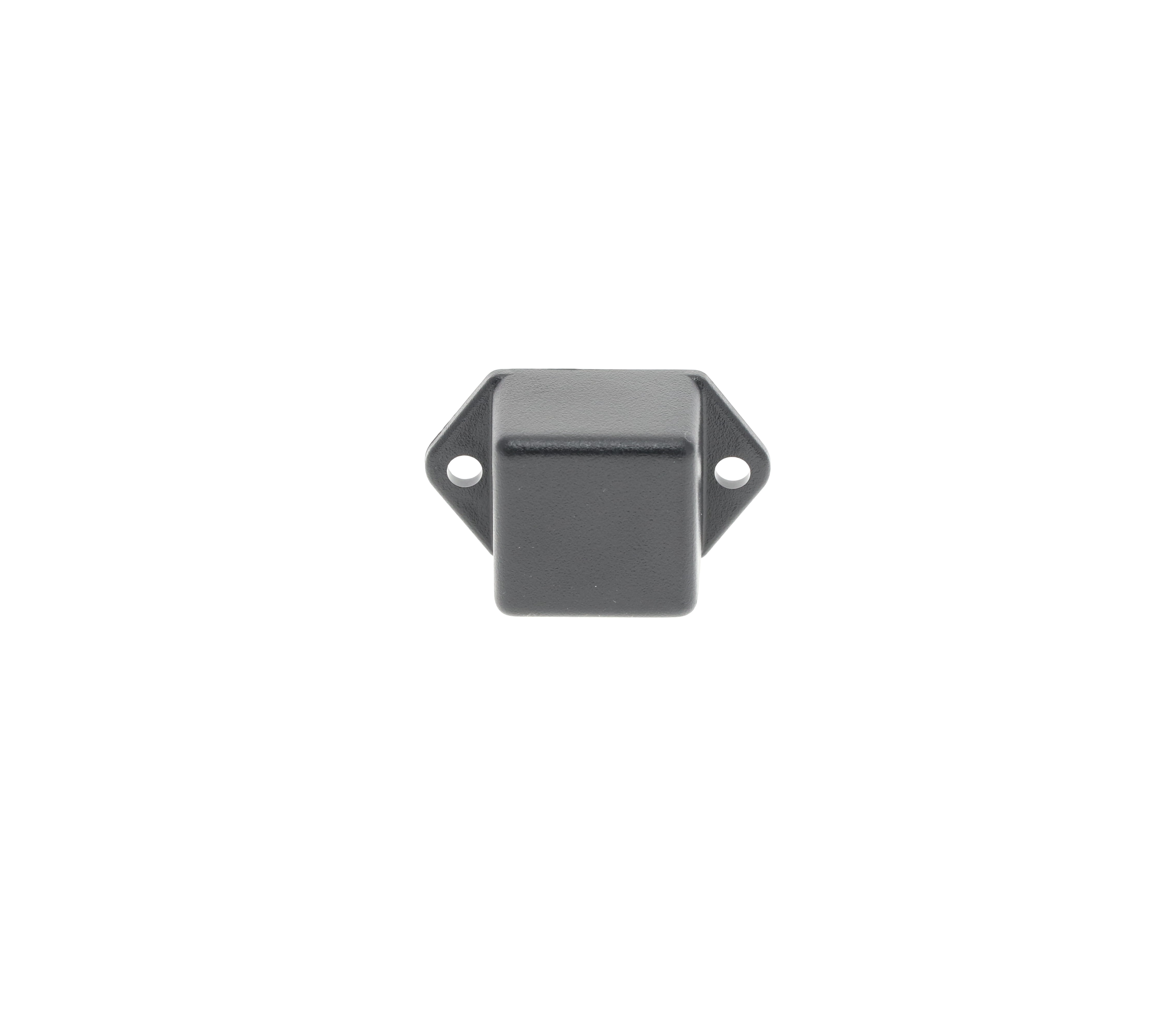

Potting Box Style B Plastic Box with Mounting Flanges PB-1577-TF

Potting Box Style B Series
Model # PB-1577-TF
External Size L x W x D: 1.00" x 1.00" x 0.75"
Internal Size L x W x D: 0.90" x 0.90" x 0.65"

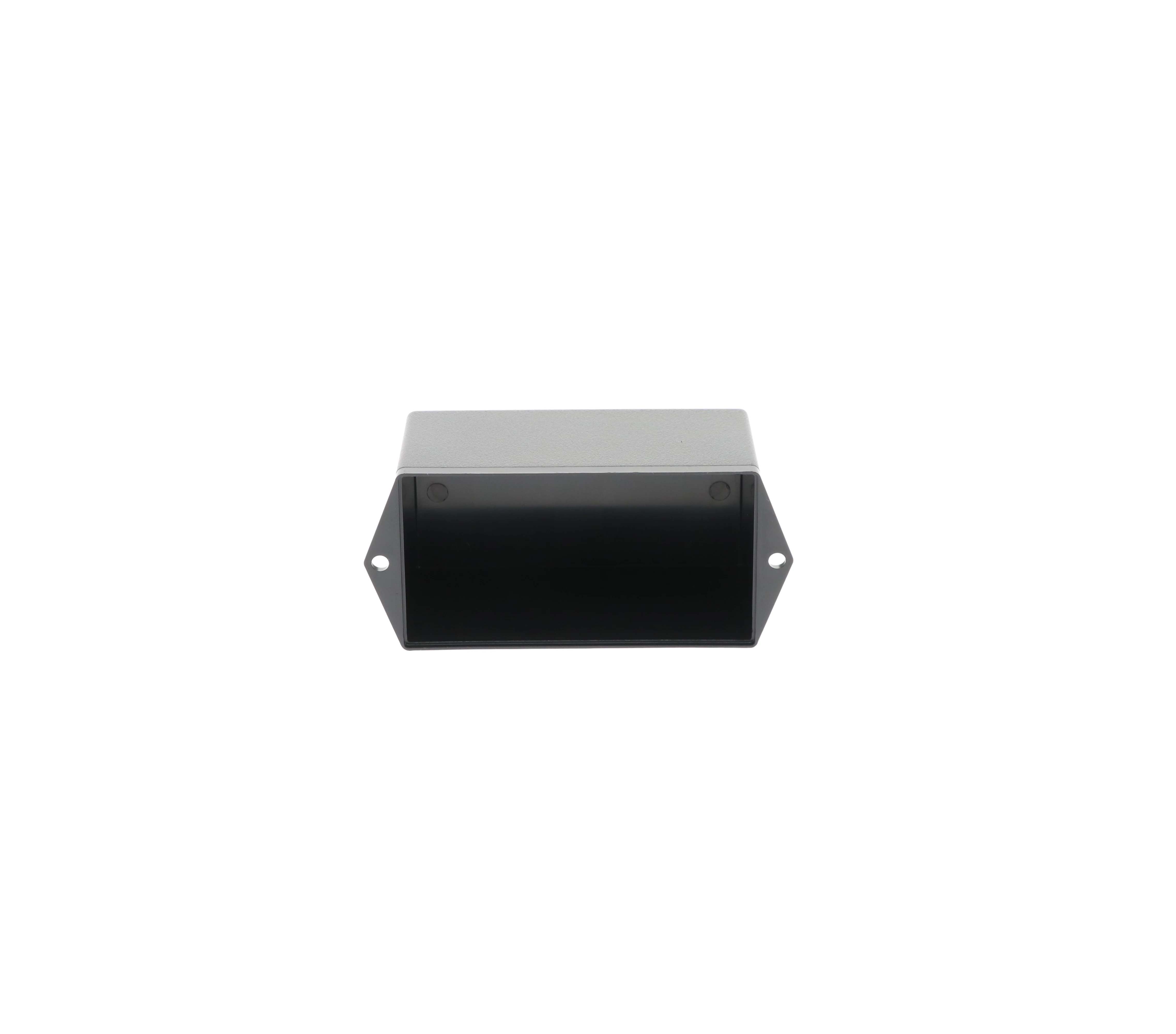

Potting Box Style B Plastic Box with Mounting Flanges PB-1578-TF

Potting Box Style B Series
Model # PB-1578-TF
External Size L x W x D: 4.00" x 2.12" x 2.00"
Internal Size L x W x D: 3.86" x 1.99" x 1.86"

Potting Box Style B Plastic Box with Mounting Flanges PB-1579-TF

Potting Box Style B Series
Model # PB-1579-TF
External Size L x W x D: 1.50" x 1.25" x 0.80"
Internal Size L x W x D: 1.36" x 1.11" x 0.66"

Potting Box B Plastic Box with Mounting Flanges PB-1580-TF

Potting Box Style B Series
Model # PB-1580-TF
External Size L x W x D: 4.00" x 1.75" x 1.00"
Internal Size L x W x D: 3.86" x 1.61" x 0.86"

Potting Box Style B Plastic Box with Mounting Flanges PB-1581-TF

Potting Box Style B Series
Model # PB-1581-TF
External Size L x W x D: 2.09" x 1.25" x 0.44"
Internal Size L x W x D: 1.94" x 1.14" x 0.31"

Potting Box Style B Plastic Box with Mounting Flanges PB-1582-TF

Potting Box Style B Series
Model # PB-1582-TF
External Size L x W x D: 4.00" x 2.12" x 0.90"
Internal Size L x W x D: 3.92" x 2.05" x 0.76"

Potting Box Style B Plastic Box with Mounting Flanges PB-1583-TF

Potting Box Style B Series
Model # PB-1583-TF
External Size L x W x D: 4.37" x 3.12" x 2.00"
Internal Size L x W x D: 3.97" x 2.99" x 1.86"
