PW Series UL94-5VA ABS Enclosure

PW Series UL94-5VA ABS Plastic Enclosure

House PCBs and other components in this stylish utility enclosure. The PW Series is molded of quality ABS plastic that is flame-retardant rated as both UL94-V0 and UL94-5VA. It consists of a body and a screw-down cover. Four mounting bosses simplify PCB installation. The smooth cover models are ideal for UV-cured full-color printing, which Bud can supply on request.
There are four variations:

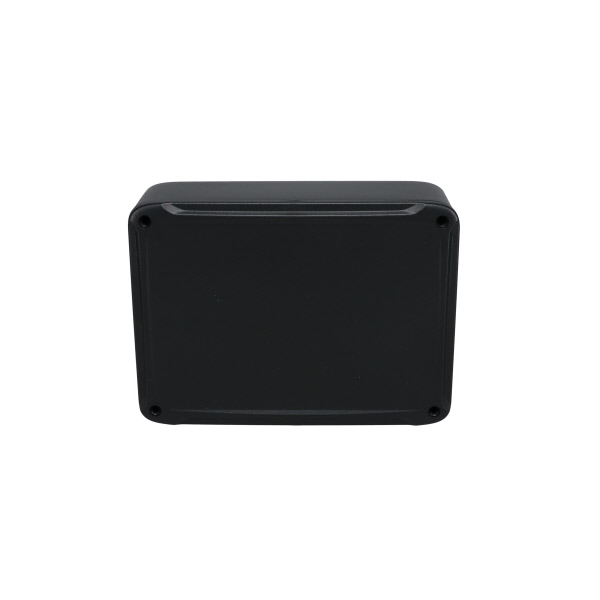

  • Cover has a smooth surface, no mounting flanges. (Models with no suffix)

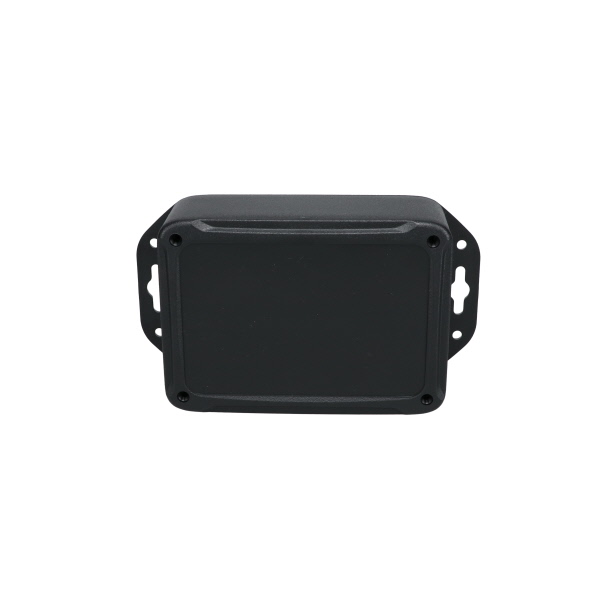

  • Cover has a smooth surface, comes with mounting flanges. (Models ending in MB)

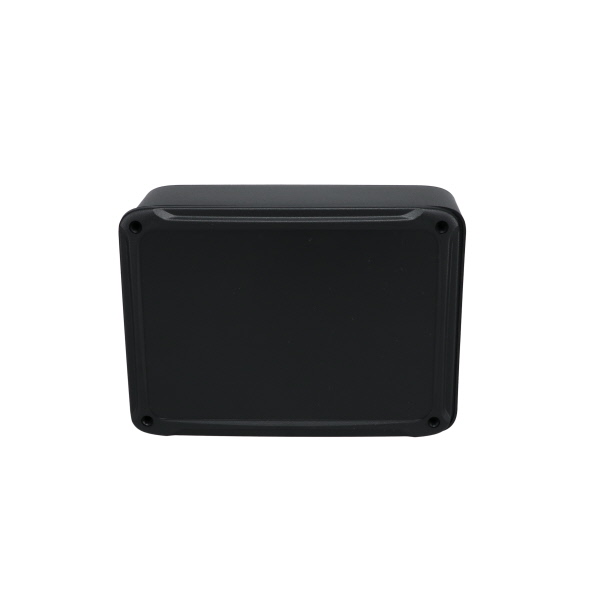

  • Cover has mar-resistant textured surface, no mounting flanges. (Models ending in T)

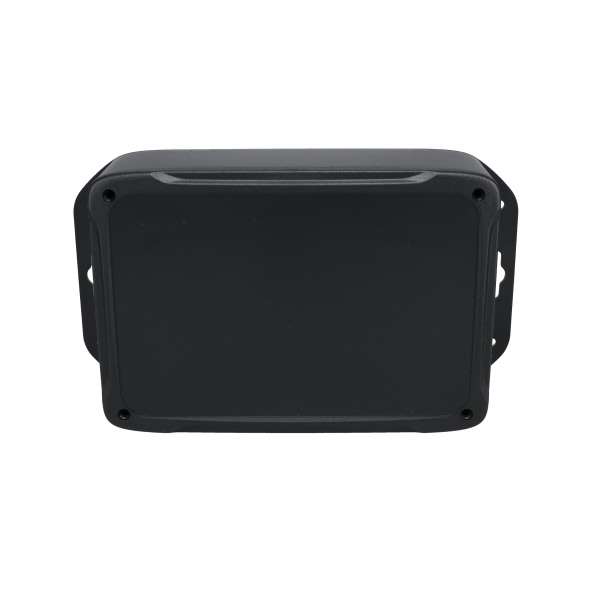

  • Cover has mar-resistant textured surface, comes with mounting flanges. (Models ending in TMB)



Filter Models

PW Series UL94-5VA ABS Enclosure PW-12846

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12846
External Size L x W x D: 4.50" x 3.38" x 1.85"
Internal Size L x W x D: 4.30" x 3.18" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12846-MB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12846-MB
External Size L x W x D: 4.50" x 3.38" x 1.85"
Internal Size L x W x D: 4.30" x 3.18" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12846-T

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12846-T
External Size L x W x D: 4.50" x 3.38" x 1.85"
Internal Size L x W x D: 4.30" x 3.18" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12846-TMB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12846-TMB
External Size L x W x D: 4.50" x 3.38" x 1.85"
Internal Size L x W x D: 4.30" x 3.18" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12847

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12847
External Size L x W x D: 5.25" x 3.75" x 1.97"
Internal Size L x W x D: 5.05" x 3.55" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12847-MB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12847-MB
External Size L x W x D: 5.25" x 3.75" x 1.97"
Internal Size L x W x D: 5.05" x 3.55" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12847-T

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12847-T
External Size L x W x D: 5.25" x 3.75" x 1.97"
Internal Size L x W x D: 5.05" x 3.55" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12847-TMB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12847-TMB
External Size L x W x D: 5.25" x 3.75" x 1.97"
Internal Size L x W x D: 5.05" x 3.55" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12848

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12848
External Size L x W x D: 4.00" x 4.00" x 1.85"
Internal Size L x W x D: 3.80" x 3.80" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12848-MB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12848-MB
External Size L x W x D: 4.00" x 4.00" x 1.85"
Internal Size L x W x D: 3.80" x 3.80" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12848-T

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12848-T
External Size L x W x D: 4.00" x 4.00" x 1.85"
Internal Size L x W x D: 3.80" x 3.80" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12848-TMB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12848-TMB
External Size L x W x D: 4.00" x 4.00" x 1.85"
Internal Size L x W x D: 3.80" x 3.80" x 1.65"

PW Series UL94-5VA ABS Enclosure PW-12849

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12849
External Size L x W x D: 6.00" x 4.38" x 1.97"
Internal Size L x W x D: 5.80" x 4.18" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12849-MB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12849-MB
External Size L x W x D: 6.00" x 4.38" x 1.97"
Internal Size L x W x D: 5.80" x 4.18" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12849-T

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12849-T
External Size L x W x D: 6.00" x 4.38" x 1.97"
Internal Size L x W x D: 5.80" x 4.18" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12849-TMB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12849-TMB
External Size L x W x D: 6.00" x 4.38" x 1.97"
Internal Size L x W x D: 5.80" x 4.18" x 1.77"

PW Series UL94-5VA ABS Enclosure PW-12850

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12850
External Size L x W x D: 7.25" x 5.00" x 2.22"
Internal Size L x W x D: 7.05" x 4.80" x 2.02"

PW Series UL94-5VA ABS Enclosure PW-12850-MB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12850-MB
External Size L x W x D: 7.25" x 5.00" x 2.22"
Internal Size L x W x D: 7.05" x 4.80" x 2.02"

PW Series UL94-5VA ABS Enclosure PW-12850-T

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12850-T
External Size L x W x D: 7.25" x 5.00" x 2.22"
Internal Size L x W x D: 7.05" x 4.80" x 2.02"

PW Series UL94-5VA ABS Enclosure PW-12850-TMB

PW Series UL94-5VA ABS Plastic Enclosure
Model # PW-12850-TMB
External Size L x W x D: 7.25" x 5.00" x 2.22"
Internal Size L x W x D: 7.05" x 4.80" x 2.02"
