PTQ Series Fiberglass Box

The PTQ Series of fiberglass boxes offers impressive strength and durability through its construction of polycarbonate plastic reinforced with 10% glass fibers and rugged stainless-steel latches. The boxes offer strong protection from harsh environments and meet IP67 (TUV) and UL (USA/CSA-C22) NEMA 1, 2, 4, 4x and 6 specifications. Clear covers are an option. UV stabilized for outdoor use (or indoor use), the boxes are ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries.

**Opaque version is both UL94-V0 and 5VA and the Clear is UL94-V0 but can be manufactured in 5VA upon request subject to minimum quantities (lead time restrictions apply).



PTQ Panel list

Filter Models

Fiberglass box with stainless steel latch PTQ-11035

PTQ Series Fiberglass Box
Model # PTQ-11035
External Size L x W x D: 4.72" x 3.54" x 2.76"
Internal Size L x W x D: 4.60" x 3.42" x 2.64"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11035-C

PTQ Series Fiberglass Box
Model # PTQ-11035-C
External Size L x W x D: 4.72" x 3.54" x 2.76"
Internal Size L x W x D: 4.60" x 3.42" x 2.64"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11036

PTQ Series Fiberglass Box
Model # PTQ-11036
External Size L x W x D: 7.61" x 5.31" x 3.94"
Internal Size L x W x D: 6.66" x 4.36" x 3.68"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11036-C

PTQ Series Fiberglass Box
Model # PTQ-11036-C
External Size L x W x D: 7.61" x 5.31" x 3.94"
Internal Size L x W x D: 6.66" x 4.36" x 3.68"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11038

PTQ Series Fiberglass Box
Model # PTQ-11038
External Size L x W x D: 5.91" x 3.94" x 3.35"
Internal Size L x W x D: 5.79" x 3.82" x 3.23"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11038-C

PTQ Series Fiberglass Box
Model # PTQ-11038-C
External Size L x W x D: 5.91" x 3.94" x 3.35"
Internal Size L x W x D: 5.79" x 3.82" x 3.23"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11040

PTQ Series Fiberglass Box
Model # PTQ-11040
External Size L x W x D: 8.60" x 6.30" x 5.12"
Internal Size L x W x D: 7.65" x 5.35" x 4.86"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11040-C

PTQ Series Fiberglass Box
Model # PTQ-11040-C
External Size L x W x D: 8.60" x 6.30" x 5.12"
Internal Size L x W x D: 7.65" x 5.35" x 4.86"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11041

PTQ Series Fiberglass Box
Model # PTQ-11041
External Size L x W x D: 10.57" x 6.30" x 5.12"
Internal Size L x W x D: 9.62" x 5.35" x 4.86"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11041-C

PTQ Series Fiberglass Box
Model # PTQ-11041-C
External Size L x W x D: 10.57" x 6.30" x 5.12"
Internal Size L x W x D: 11.62" x 5.35" x 4.86"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11042

PTQ Series Fiberglass Box
Model # PTQ-11042
External Size L x W x D: 10.20" x 4.33" x 3.94"
Internal Size L x W x D: 10.10" x 4.21" x 3.82"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11042-C

PTQ Series Fiberglass Box
Model # PTQ-11042-C
External Size L x W x D: 10.20" x 4.33" x 3.94"
Internal Size L x W x D: 10.10" x 4.21" x 3.82"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

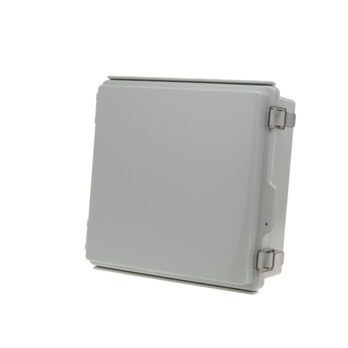

Fiberglass Box with Stainless Steel Latch PTQ-11043

PTQ Series Fiberglass Box
Model # PTQ-11043
External Size L x W x D: 8.60" x 8.27" x 3.94"
Internal Size L x W x D: 7.65" x 7.32" x 3.68"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11043-C

PTQ Series Fiberglass Box
Model # PTQ-11043-C
External Size L x W x D: 8.60" x 8.27" x 3.94"
Internal Size L x W x D: 7.65" x 7.32" x 3.68"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

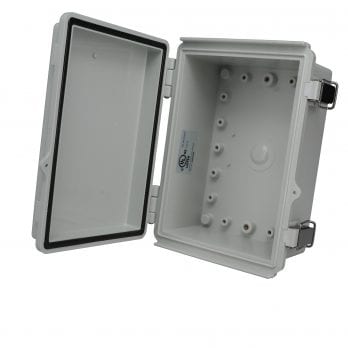

Fiberglass Box with Stainless Steel Latch PTQ-11044

PTQ Series Fiberglass Box
Model # PTQ-11044
External Size L x W x D: 7.28" x 5.31" x 3.36"
Internal Size L x W x D: 7.16" x 5.19" x 3.23"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11044-C

PTQ Series Fiberglass Box
Model # PTQ-11044-C
External Size L x W x D: 7.28" x 5.31" x 3.36"
Internal Size L x W x D: 7.16" x 5.19" x 3.23"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

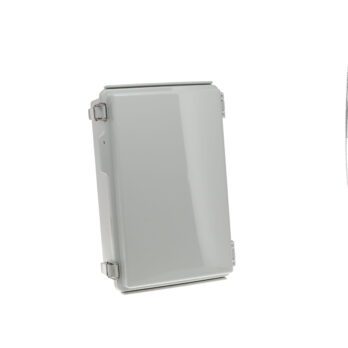

Fiberglass Box with Stainless Steel Latch PTQ-11045

PTQ Series Fiberglass Box
Model # PTQ-11045
External Size L x W x D: 10.96" x 6.69" x 4.33"
Internal Size L x W x D: 10.01" x 5.74" x 4.07"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11045-C

PTQ Series Fiberglass Box
Model # PTQ-11045-C
External Size L x W x D: 10.96" x 6.69" x 4.33"
Internal Size L x W x D: 10.01" x 5.74" x 4.07"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11046

PTQ Series Fiberglass Box
Model # PTQ-11046
External Size L x W x D: 5.91" x 5.91" x 3.55"
Internal Size L x W x D: 4.59" x 4.59" x 3.11"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11046-C

PTQ Series Fiberglass Box
Model # PTQ-11046-C
External Size L x W x D: 5.91" x 5.91" x 3.55"
Internal Size L x W x D: 4.59" x 4.59" x 3.11"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11047

PTQ Series Fiberglass Box
Model # PTQ-11047
External Size L x W x D: 5.91" x 5.91" x 4.73"
Internal Size L x W x D: 5.79" x 5.79" x 4.60"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11047-C

PTQ Series Fiberglass Box
Model # PTQ-11047-C
External Size L x W x D: 5.91" x 5.91" x 4.73"
Internal Size L x W x D: 5.79" x 5.79" x 4.60"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

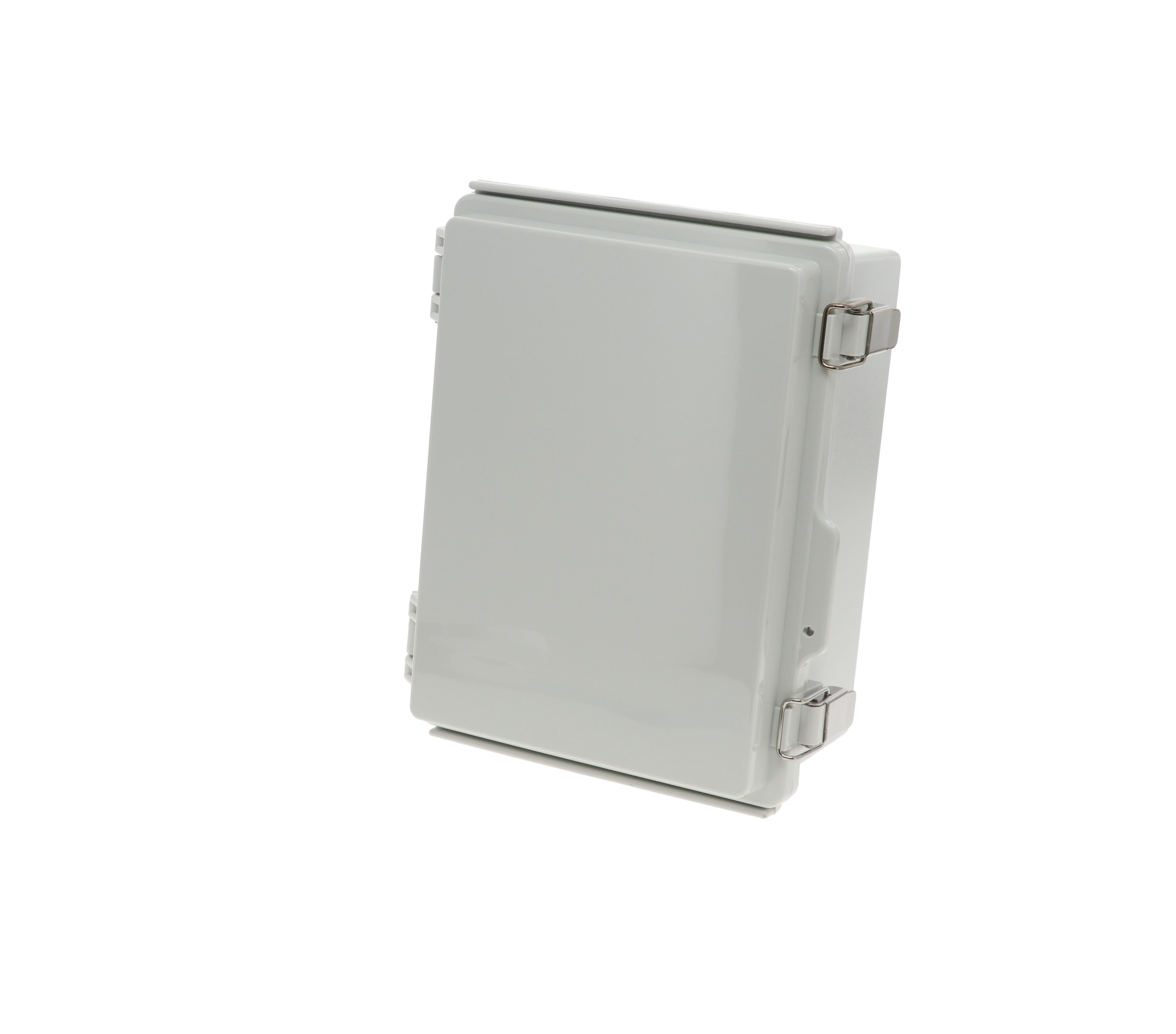

Fiberglass Box with Stainless Steel Latch PTQ-11048

PTQ Series Fiberglass Box
Model # PTQ-11048
External Size L x W x D: 8.27" x 6.30" x 3.94"
Internal Size L x W x D: 7.27" x 5.40" x 3.36"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11048-C

PTQ Series Fiberglass Box
Model # PTQ-11048-C
External Size L x W x D: 8.27" x 6.30" x 3.94"
Internal Size L x W x D: 7.27" x 5.40" x 3.36"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11049

PTQ Series Fiberglass Box
Model # PTQ-11049
External Size L x W x D: 11.35" x 7.48" x 3.95"
Internal Size L x W x D: 10.40" x 6.53" x 3.69"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11049-C

PTQ Series Fiberglass Box
Model # PTQ-11049-C
External Size L x W x D: 11.35" x 7.48" x 3.95"
Internal Size L x W x D: 10.40" x 6.53" x 3.69"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11050

PTQ Series Fiberglass Box
Model # PTQ-11050
External Size L x W x D: 10.24" x 6.30" x 3.94"
Internal Size L x W x D: 9.15" x 5.28" x 3.41"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11050-C

PTQ Series Fiberglass Box
Model # PTQ-11050-C
External Size L x W x D: 10.24" x 6.30" x 3.94"
Internal Size L x W x D: 9.15" x 5.28" x 3.41"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11051

PTQ Series Fiberglass Box
Model # PTQ-11051
External Size L x W x D: 10.21" x 6.28" x 5.10"
Internal Size L x W x D: 9.90" x 5.96" x 4.78"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11051-C

PTQ Series Fiberglass Box
Model # PTQ-11051-C
External Size L x W x D: 10.21" x 6.28" x 5.10"
Internal Size L x W x D: 9.90" x 5.96" x 4.78"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11053

PTQ Series Fiberglass Box
Model # PTQ-11053
External Size L x W x D: 14.11" x 9.84" x 5.90"
Internal Size L x W x D: 13.16" x 8.89" x 5.64"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11053-C

PTQ Series Fiberglass Box
Model # PTQ-11053-C
External Size L x W x D: 14.11" x 9.84" x 5.90"
Internal Size L x W x D: 13.16" x 8.89" x 5.64"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11054

PTQ Series Fiberglass Box
Model # PTQ-11054
External Size L x W x D: 11.35" x 11.02" x 5.12"
Internal Size L x W x D: 10.40" x 10.07" x 4.86"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11054-C

PTQ Series Fiberglass Box
Model # PTQ-11054-C
External Size L x W x D: 11.35" x 11.02" x 5.12"
Internal Size L x W x D: 10.40" x 10.07" x 4.86"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11055

PTQ Series Fiberglass Box
Model # PTQ-11055
External Size L x W x D: 8.27" x 8.27" x 5.13"
Internal Size L x W x D: 8.15" x 8.15" x 5.00"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11055-C

PTQ Series Fiberglass Box
Model # PTQ-11055-C
External Size L x W x D: 8.27" x 8.27" x 5.13"
Internal Size L x W x D: 8.15" x 8.15" x 5.00"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11057

PTQ Series Fiberglass Box
Model # PTQ-11057
External Size L x W x D: 11.02" x 7.48" x 5.51"
Internal Size L x W x D: 9.87" x 6.34" x 4.82"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11057-C

PTQ Series Fiberglass Box
Model # PTQ-11057-C
External Size L x W x D: 11.02" x 7.48" x 5.51"
Internal Size L x W x D: 9.87" x 6.34" x 4.82"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11058

PTQ Series Fiberglass Box
Model # PTQ-11058
External Size L x W x D: 11.80" x 7.87" x 5.12"
Internal Size L x W x D: 11.60" x 7.75" x 5.00"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11058-C

PTQ Series Fiberglass Box
Model # PTQ-11058-C
External Size L x W x D: 11.80" x 7.87" x 5.12"
Internal Size L x W x D: 11.60" x 7.75" x 5.00"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11059

PTQ Series Fiberglass Box
Model # PTQ-11059
External Size L x W x D: 11.81" x 7.87" x 5.91"
Internal Size L x W x D: 10.51" x 6.70" x 5.21"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11059-C

PTQ Series Fiberglass Box
Model # PTQ-11059-C
External Size L x W x D: 11.81" x 7.87" x 5.91"
Internal Size L x W x D: 10.51" x 6.70" x 5.21"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11062

PTQ Series Fiberglass Box
Model # PTQ-11062
External Size L x W x D: 13.78" x 9.84" x 7.09"
Internal Size L x W x D: 12.70" x 8.76" x 6.84"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11062-C

PTQ Series Fiberglass Box
Model # PTQ-11062-C
External Size L x W x D: 13.78" x 9.84" x 7.09"
Internal Size L x W x D: 12.70" x 8.76" x 6.84"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11064

PTQ Series Fiberglass Box
Model # PTQ-11064
External Size L x W x D: 14.96" x 11.02" x 5.12"
Internal Size L x W x D: 13.84" x 9.89" x 4.42"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11064-C

PTQ Series Fiberglass Box
Model # PTQ-11064-C
External Size L x W x D: 14.96" x 11.02" x 5.12"
Internal Size L x W x D: 13.84" x 9.89" x 4.42"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11066

PTQ Series Fiberglass Box
Model # PTQ-11066
External Size L x W x D: 11.81" x 11.81" x 7.09"
Internal Size L x W x D: 11.69" x 11.60" x 6.97"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11066-C

PTQ Series Fiberglass Box
Model # PTQ-11066-C
External Size L x W x D: 11.81" x 11.81" x 7.09"
Internal Size L x W x D: 11.69" x 11.60" x 6.97"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11068

PTQ Series Fiberglass Box
Model # PTQ-11068
External Size L x W x D: 15.75" x 11.81" x 5.91"
Internal Size L x W x D: 15.51" x 11.50" x 5.21"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11068-C

PTQ Series Fiberglass Box
Model # PTQ-11068-C
External Size L x W x D: 15.75" x 11.81" x 5.91"
Internal Size L x W x D: 15.51" x 11.50" x 5.21"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11070

PTQ Series Fiberglass Box
Model # PTQ-11070
External Size L x W x D: 13.78" x 13.78" x 5.91"
Internal Size L x W x D: 13.66" x 13.60" x 5.79"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11070-C

PTQ Series Fiberglass Box
Model # PTQ-11070-C
External Size L x W x D: 13.78" x 13.78" x 5.91"
Internal Size L x W x D: 13.66" x 13.60" x 5.79"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11072

PTQ Series Fiberglass Box
Model # PTQ-11072
External Size L x W x D: 17.72" x 13.78" x 4.72"
Internal Size L x W x D: 17.60" x 13.60" x 4.60"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11072-C

PTQ Series Fiberglass Box
Model # PTQ-11072-C
External Size L x W x D: 17.72" x 13.78" x 4.72"
Internal Size L x W x D: 17.60" x 13.60" x 4.60"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11073

PTQ Series Fiberglass Box
Model # PTQ-11073
External Size L x W x D: 17.72" x 13.78" x 6.30"
Internal Size L x W x D: 17.87" x 13.50" x 5.60"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11073-C

PTQ Series Fiberglass Box
Model # PTQ-11073-C
External Size L x W x D: 17.72" x 13.78" x 6.30"
Internal Size L x W x D: 17.87" x 13.50" x 5.60"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11076

PTQ Series Fiberglass Box
Model # PTQ-11076
External Size L x W x D: 19.69" x 15.75" x 7.87"
Internal Size L x W x D: 19.45" x 15.50" x 7.18"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch and Clear Cover PTQ-11076-C

PTQ Series Fiberglass Box
Model # PTQ-11076-C
External Size L x W x D: 19.69" x 15.75" x 7.87"
Internal Size L x W x D: 19.45" x 15.50" x 7.18"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11077

PTQ Series Fiberglass Box
Model # PTQ-11077
External Size L x W x D: 23.62" x 15.75" x 7.09"
Internal Size L x W x D: 23.50" x 15.63" x 6.97"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11077-C

PTQ Series Fiberglass Box
Model # PTQ-11077-C
External Size L x W x D: 23.62" x 15.75" x 7.09"
Internal Size L x W x D: 23.50" x 15.63" x 6.97"
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass box with stainless steel latch PTQ-11080

PTQ Series Fiberglass Box
Model # PTQ-11080
External Size L x W x D: 24.80" x 20.87" x 10.04"
Internal Size L x W x D: 24.28" x 20.50" x 9.30"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11081

PTQ Series Fiberglass Box
Model # PTQ-11081
External Size L x W x D: 28.74" x 20.87" x 7.28"
Internal Size L x W x D: 28.60" x 20.75" x 7.16"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)

Fiberglass Box with Stainless Steel Latch PTQ-11083

PTQ Series Fiberglass Box
Model # PTQ-11083
External Size L x W x D: 32.68" x 24.80" x 7.28"
Internal Size L x W x D: 32.50" x 24.68" x 7.16"
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
